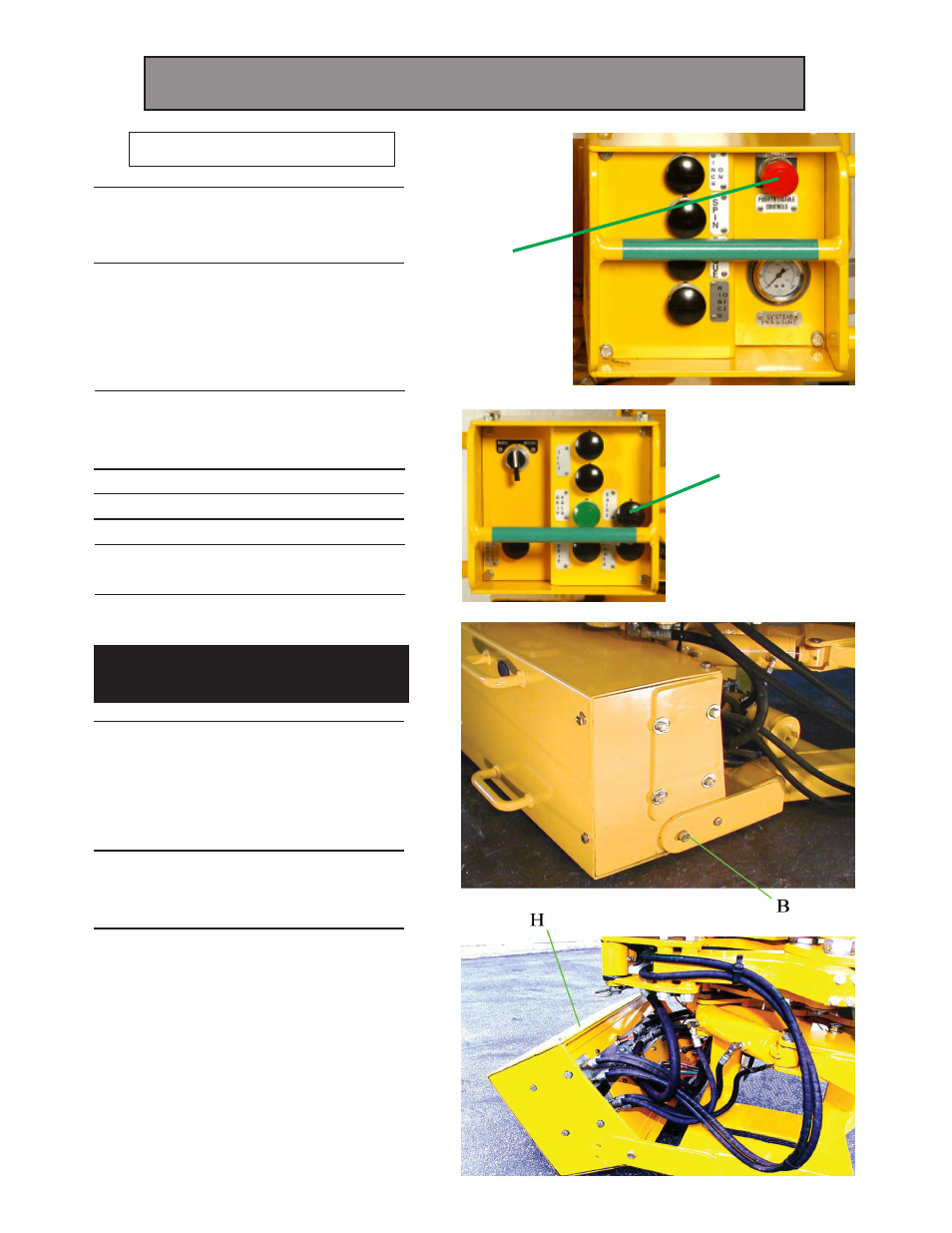

Initial Steps

1. Make sure the HawkJaw is off the

drill pipe connection and in the
rest position on the derrick.

2. Use Raise (R) to raise the

HawkJaw 6"-12" inches off the

derrick floor.

3. Shut down the Hydraulic power

unit.

4. Press the Grip button

repeatedly to bleed hydraulic

pressure.

5. Disconnect the Air power supply.

6. Push in the “E” stop (E).

7. Assume that there is still a load

on every actuator. Proceed with

caution.

Main Block Fittings and

Hoses

1. Use the 7/8" wrench to

remove the Main Block Housing
Retainer Bolt (B) and Lock

Washers on each side of the

Main Block Housing (H).

2. Tilt the Main Block Housing (H)

back to expose the main block

fittings and hoses.

64 Maintenance & Repair

Main Hydraulic Block Fitting and Hose Access
