Grease Once per Week, Minimum
Tools Required
Grease gun
Initial Steps
1. Make sure the HawkJaw is off the
drill pipe connection and in the rest
position on the derrick.
2. Shut down the Hydraulic power
unit.
3. Press the Grip button repeatedly to
bleed hydraulic pressure.
4. Disconnect the Air power supply.
5. Push in the “E” stop.
6. Assume that there is still a load on
every actuator. Proceed with caution.

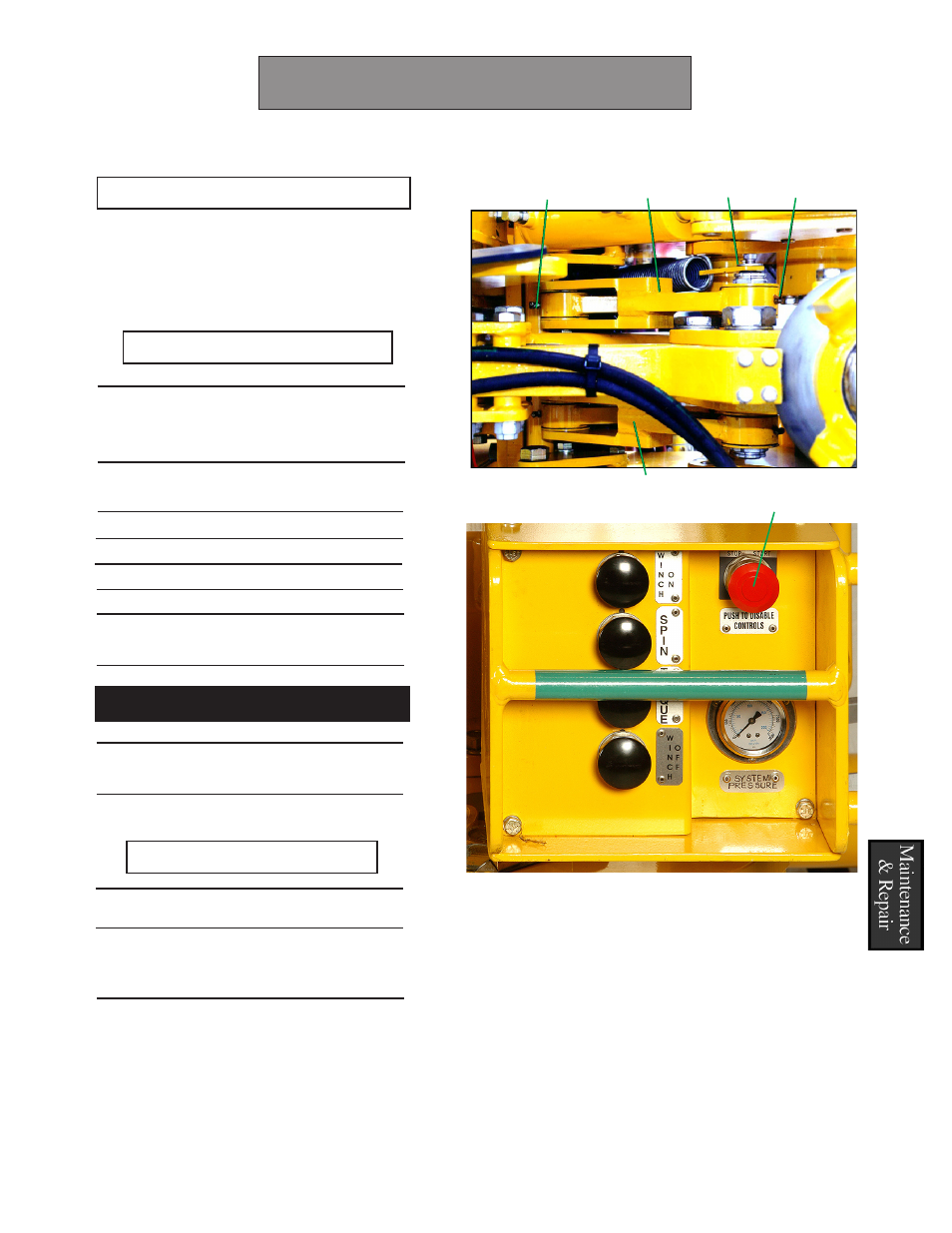

Mounting Arm Pivot Points
1. Pump grease fittings MP1-MP3
on each Mounting Arm (M1, M2).
Part Numbers
Part Name Part #
Straight Grease Fitting 061-1103K1
45° Grease Fitting 061-1103K2
90° Grease Fitting 061-1103K3
NOTE
Consistent lubrication of the wrenches
increases performance and component
life. D
Wrench Maintenance Wrench Maintenance
MP1 M1 MP2 MP3
Maintenance & Repair 33
E
M2
