2.2 Securing the bracket

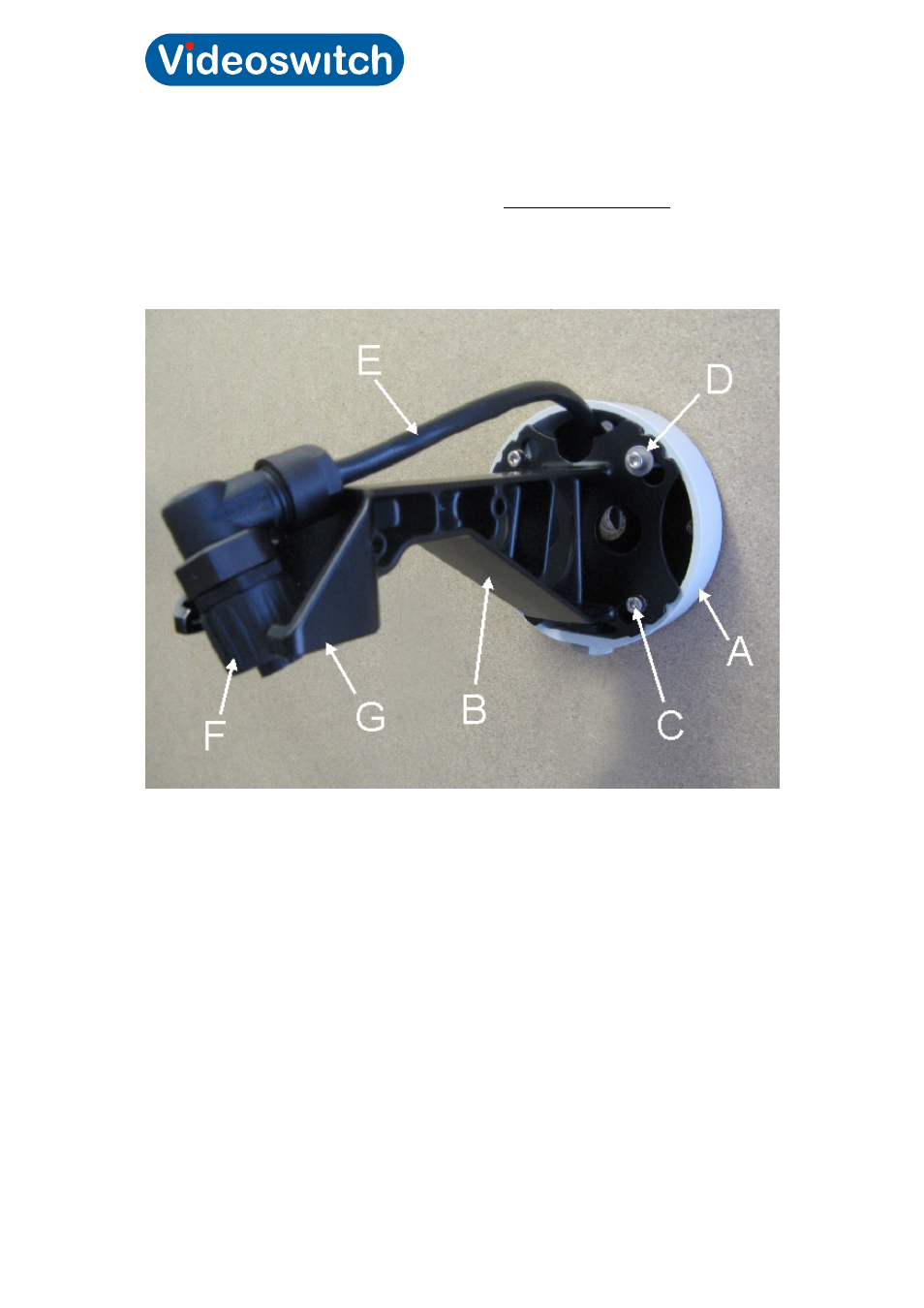

• Secure the bracket (B) to the mounting plate (A) using the 4 screws supplied (C)
• For safety reasons, one of the fixing screws must have washer (D) fitted as shown

below.

• Position the umbilical cable (E) such that the connector (F) is above the dome

support cradle (G)
