CMOR Dome

Videoswitch Page

Vc601i.doc

2 Installing the Dome

These installation instructions assume that a standard wall-mount bracket is being used. For
swan-neck, pendant and corner options, refer to their specific instruction sheet.

2.1 Fixing the mounting ring or plate

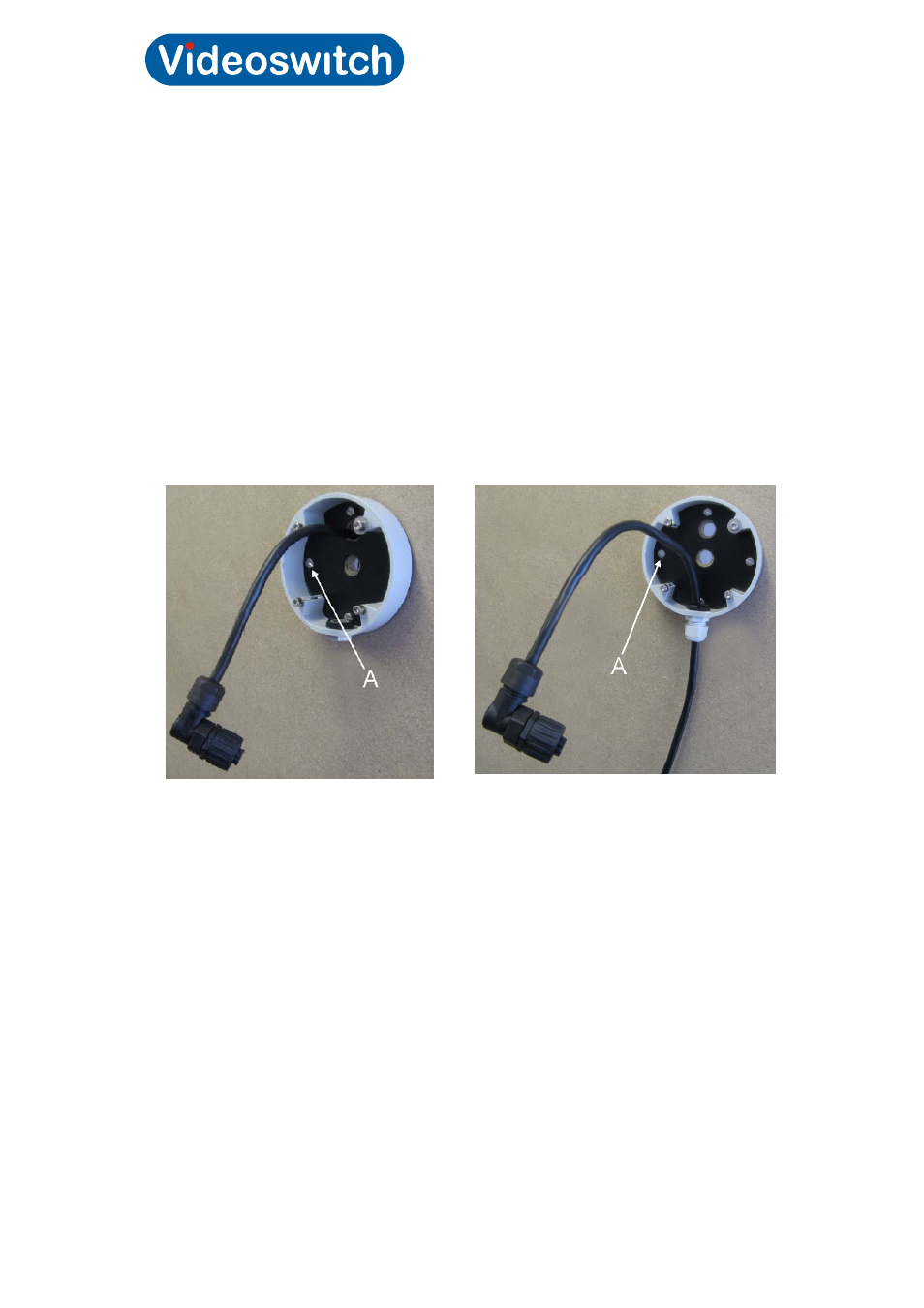

• Fix the mounting ring to the wall using four screws (A) of adequate size and

strength to support the weight of the dome and bracket.

• Fit the umbilical cable, entering either through the wall or via a cable gland as

illustrated below.

Note that a mounting plate is now being supplied in place of this ring. In this case for bottom
entry, the knockout in the bottom of the plastic bracket covers must be removed.
