4.4.5. Continuity test
CAUTION
Before taking in circuit continuity test, remove power from the circuit being
tested and discharge all capacitors.
RAN
GE
HO
LD

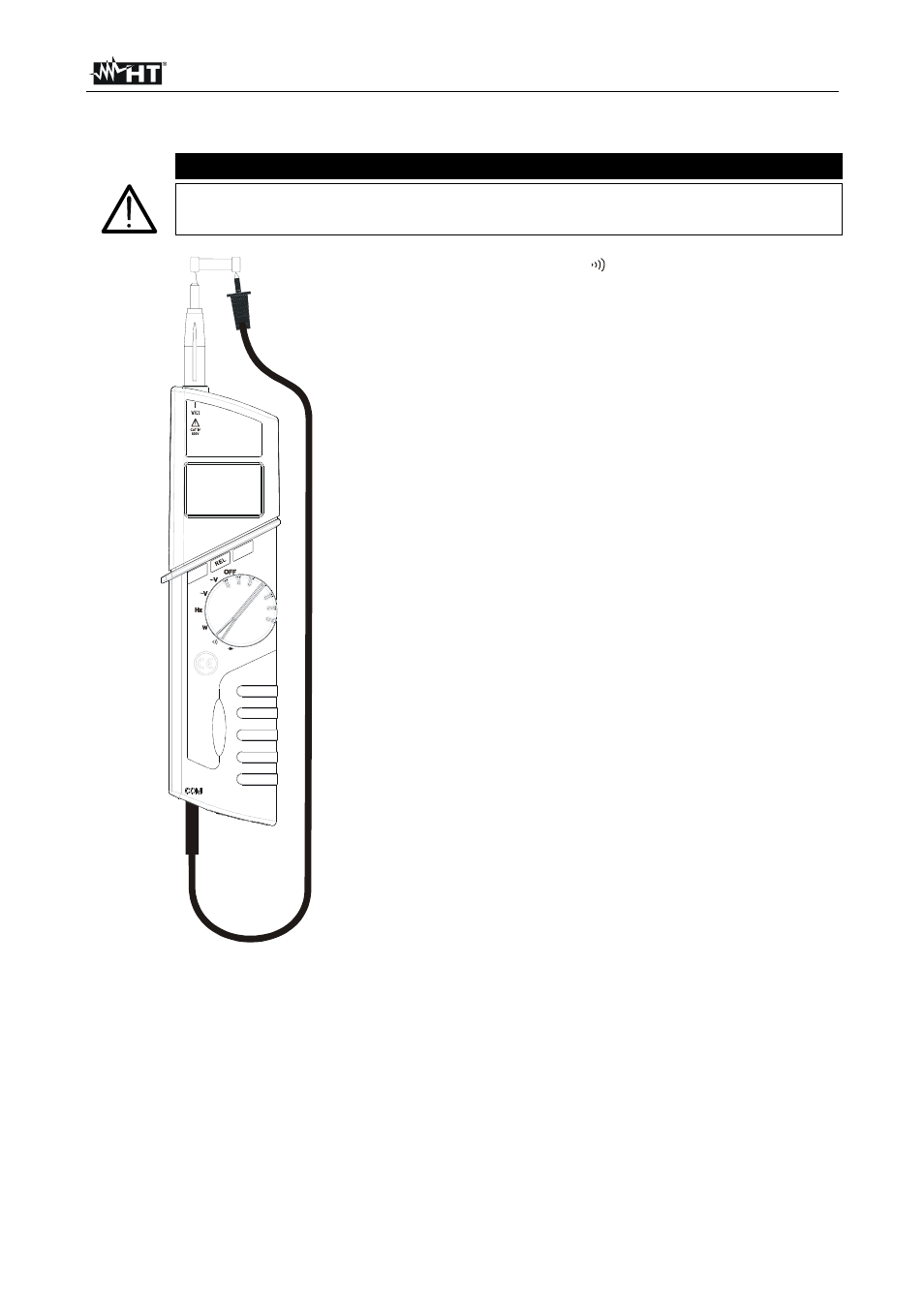

Fig. 7: Continuity test
1. Turn the selector on .
2. Insert the black test lead in the COM jack and the
red probe in the V+/Ω jack (Fig. 7).
3. Connect the test lead to the circuit under test; the
resistance value will be displayed (automatic
range detection).
4. Should you get the message "
O.L
" it means that
the detected voltage exceeds the limits which the
instrument can measure. In this case stop the
measurement by disconnecting the test leads
from the circuit under test to avoid risks for
yourself and for the instrument.
5. If the buzzer beeps during continuity tests it
means that the resistance value is lower than
50
Ω.
6. If you want to activate the HOLD, REL and
RANGE functions refer to chapter 4.2.
