Measurement structure
No.: 1 Number of measurements associated to the selected location
No.: 1 [13]
Number of measurements in the selected location
[Number of measures in the selected location and sub-locations]
> No.: 7/7
Number of selected test / Number of all results saved in the
selected location
STEP VOLT
Type of measurement saved in the selected location
8.1 SAVING RESULTS
At the end of a measurement test the result and the parameters can be saved into memory
(the icon
is shown in the bottom part of display). For saving result follow the following
steps:
1 Press MEM key on the meter. The herewith screen is displayed:

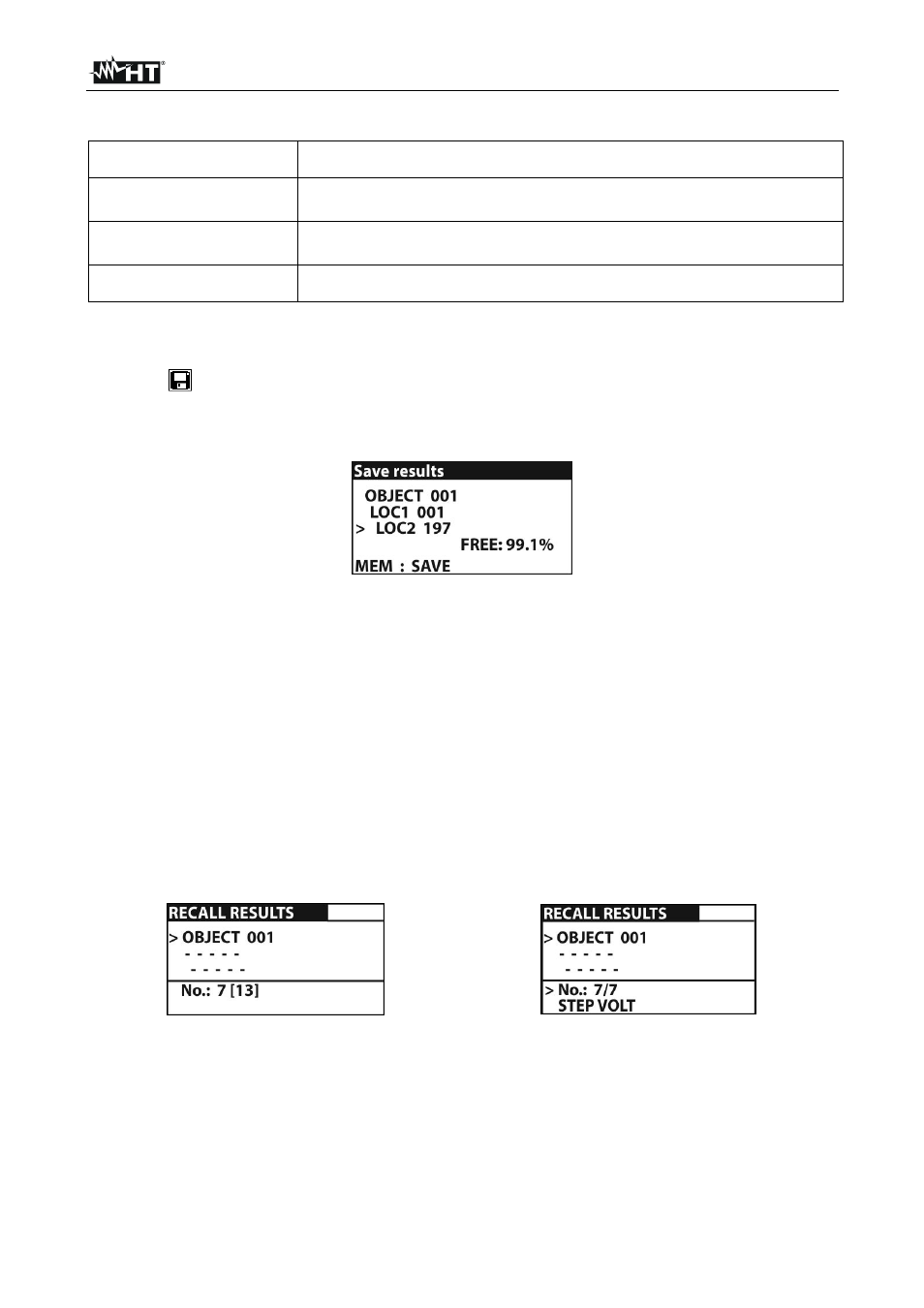

Fig. 31: Saving results inside memory
2 The “FREE“ message means the percentage value of memory still available for saving
operation
3 Use the  or  keys to select the type of location (Object / Loc1 / Loc2) and the  or
 to decrease or increase the numerical marker associated to the location (range 1 ÷
199)
4 Press again MEM key to complete the saving of data or the ESC key to exit without
saving
8.2 RECALL RESULT AT DISPLAY
The recall of result at display can be performed in the following equivalent ways:

By pressing MEM key in any measurement screen of the meter
 Selecting the item “MEMORY  RECALL RESULTS” in settings menu (see § 5.1)
Fig. 32: Recall results at display
1 Use the  or  keys to select the type of location (Object / Loc1 / Loc2) and the  or
 to decrease or increase the numerical marker associated to the location (range 1 ÷
199)
2 Press TEST key to select the number of the desired measurement
3 Press again TEST key for recall at display the result of desired measurement
