SRM Series/SRM-KIT Series Monitor
Page 44
Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of
the monitor, behind the metal frame. Figure 5-7 shows the location of clamp
insertion holes on one side of the LCD monitor. Refer to Table 2-2 for the
mounting clamps required for each model.

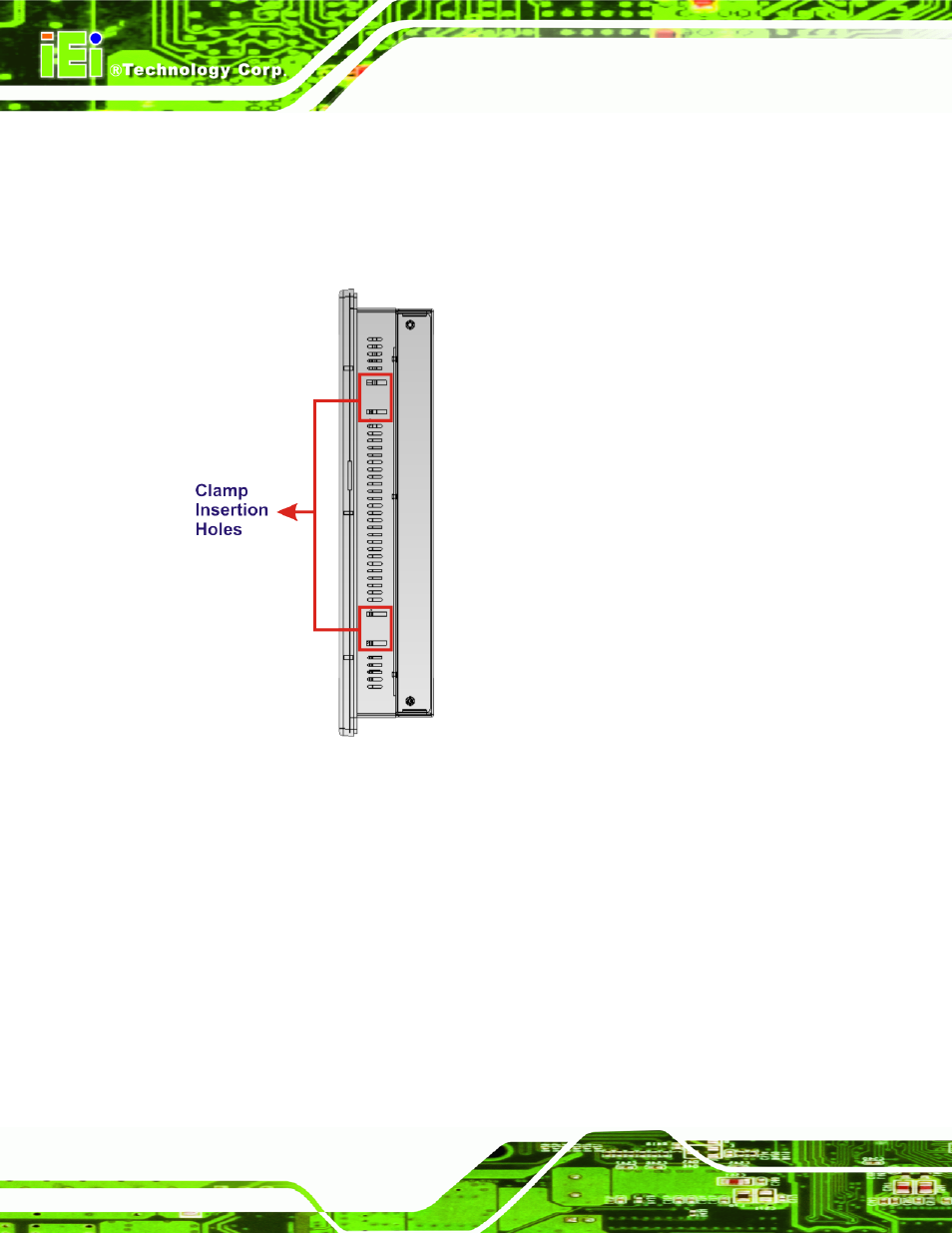

Figure 5-7: Clamp Insertion Holes
