SRM Series/SRM-KIT Series Monitor
Page 39
5.4.1 Rear Panel Connectors Overview

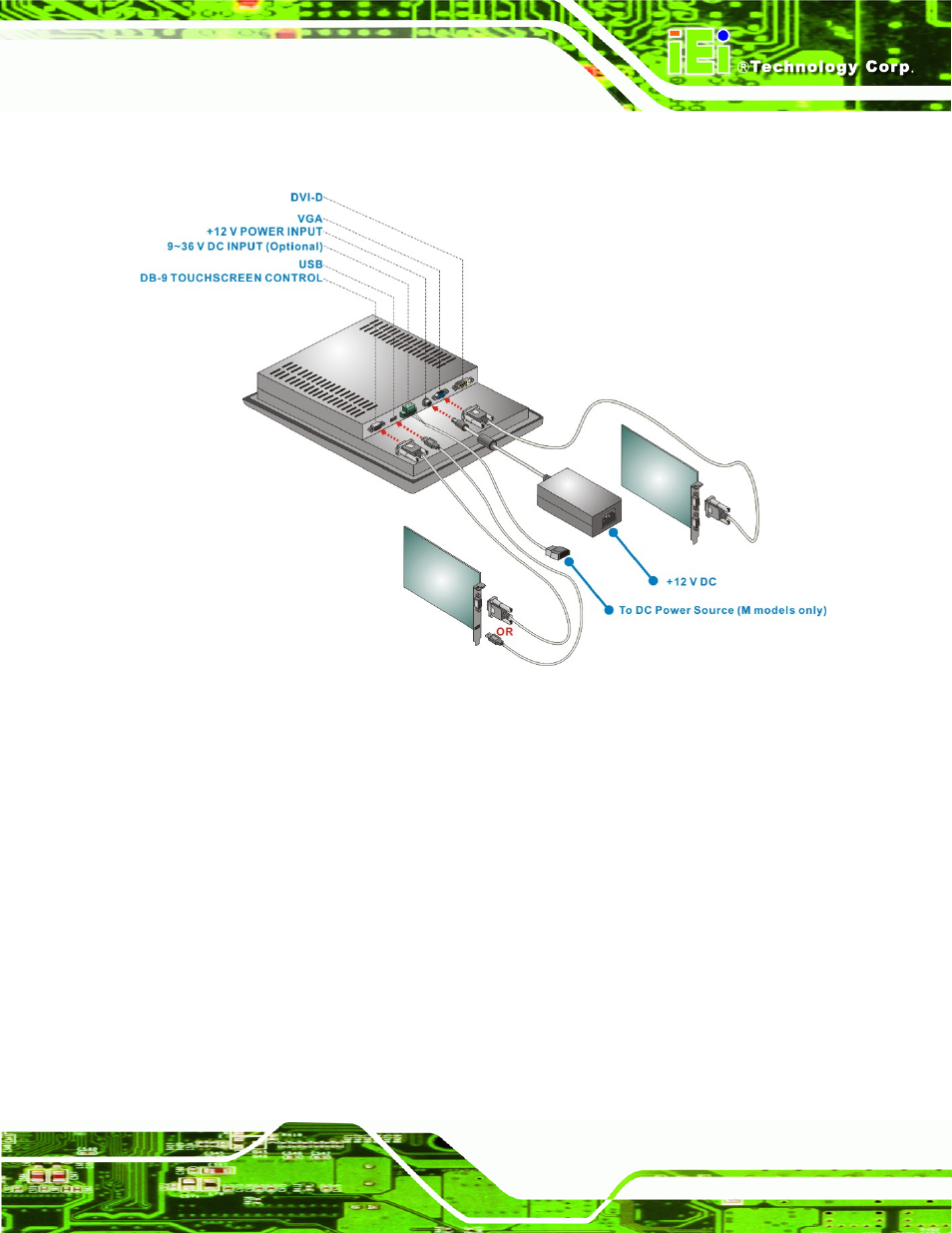

Figure 5-1: Monitor Rear Panel Connections
Figure 5-1 shows all the possible rear panel connectors for the SRM series LCD monitor.
The following sections fully describe the rear panel connectors for the SRM series LCD
monitor.
5.4.2 VGA Connector
Use the rear panel standard 15-pin female VGA connector to connect the monitor to the
system graphics interface.
