SRM Series/SRM-KIT Series Monitor
Page 7
1.2.4 SRM-KIT Series Rear View
The rear of the SRM-KIT series monitor is a metal chassis. An on screen display (OSD)
control button panel is located vertically on the left side of the chassis with the following
control buttons:
LCD
On/Off
Auto
Left
Right
Menu
The OSD panel also has one auto-dimming sensor, one power LED and one auto-
dimming LED. Refer to Chapter 6 for a complete description of OSD panel.
Figure 1-4 shows the LCD monitor front view of SRM-KIT121G and SRM-KIT150G.

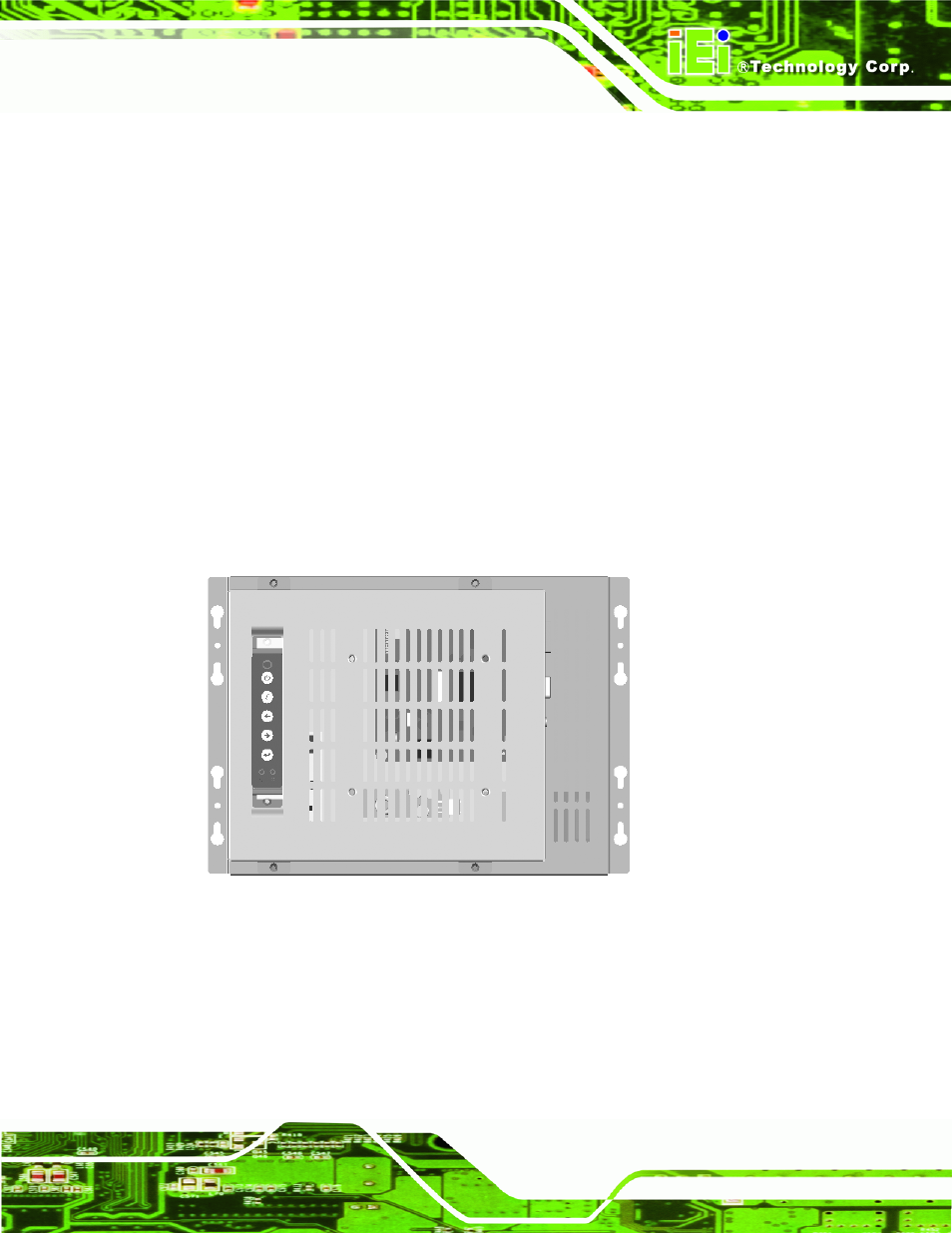

Figure 1-5: SRM-KIT Series Rear View
