1.2 External Overview
The SRM series industrial monitors are durable devices that can be used in harsh
industrial environments. The following sections describe the physical layout of the SRM
series industrial monitors.
1.2.1 SRM Series Front View
The front of the SRM series industrial monitor is a flat panel TFT LCD screen surrounded
by an aluminum frame. A control button panel (OSD) is located vertically on the right side
of the frame with the following control buttons:
ƒ LCD On/Off
ƒ Auto
ƒ Left
ƒ Right
ƒ Menu
The OSD panel also has one auto-dimming sensor, one power LED and one auto
-dimming LED.
Figure 1-2 shows the LCD monitor front view of SRM-121 and SRM-150.

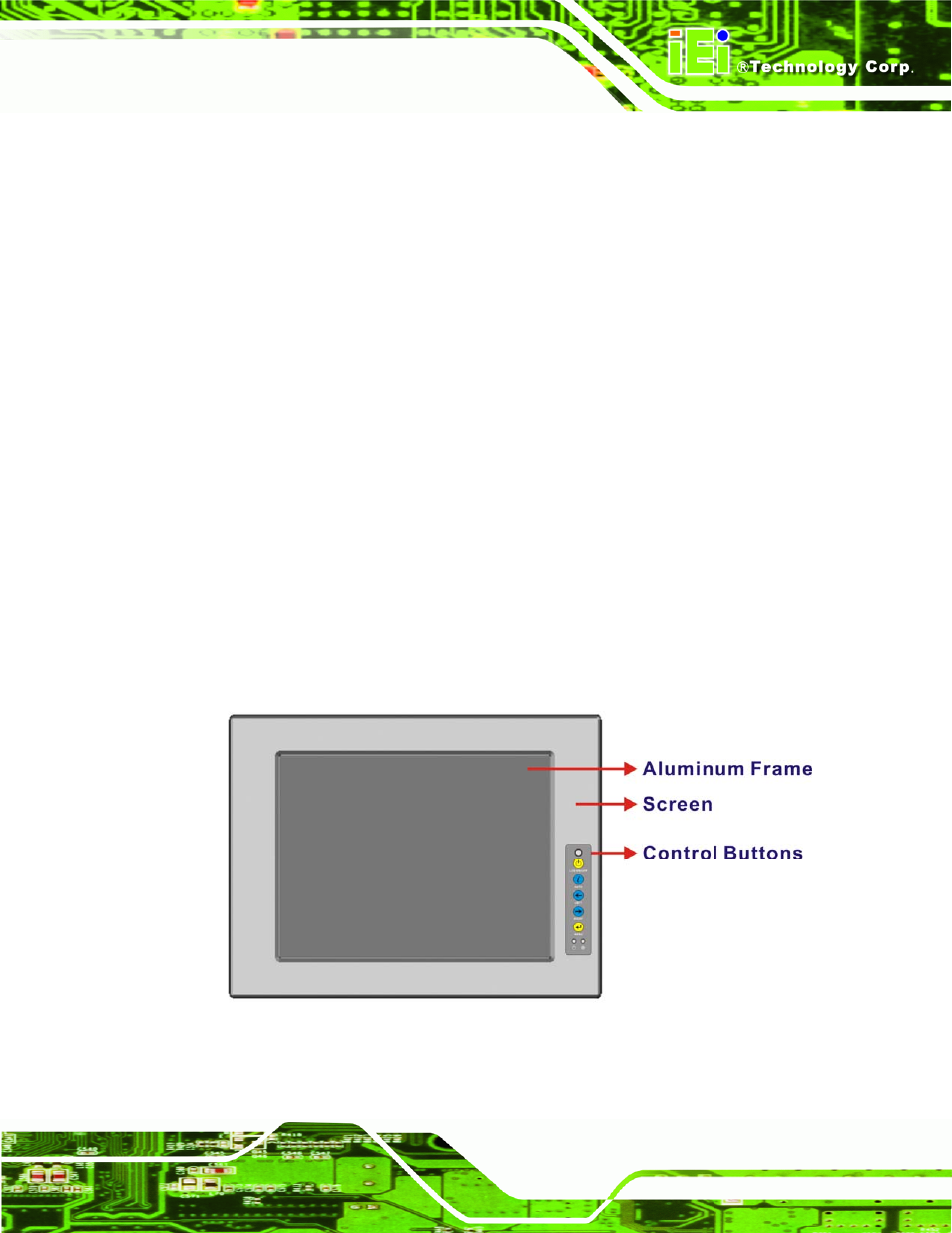

Figure 1-2: SRM Series Front View
