SRM Series/SRM-KIT Series Monitor
Page 9

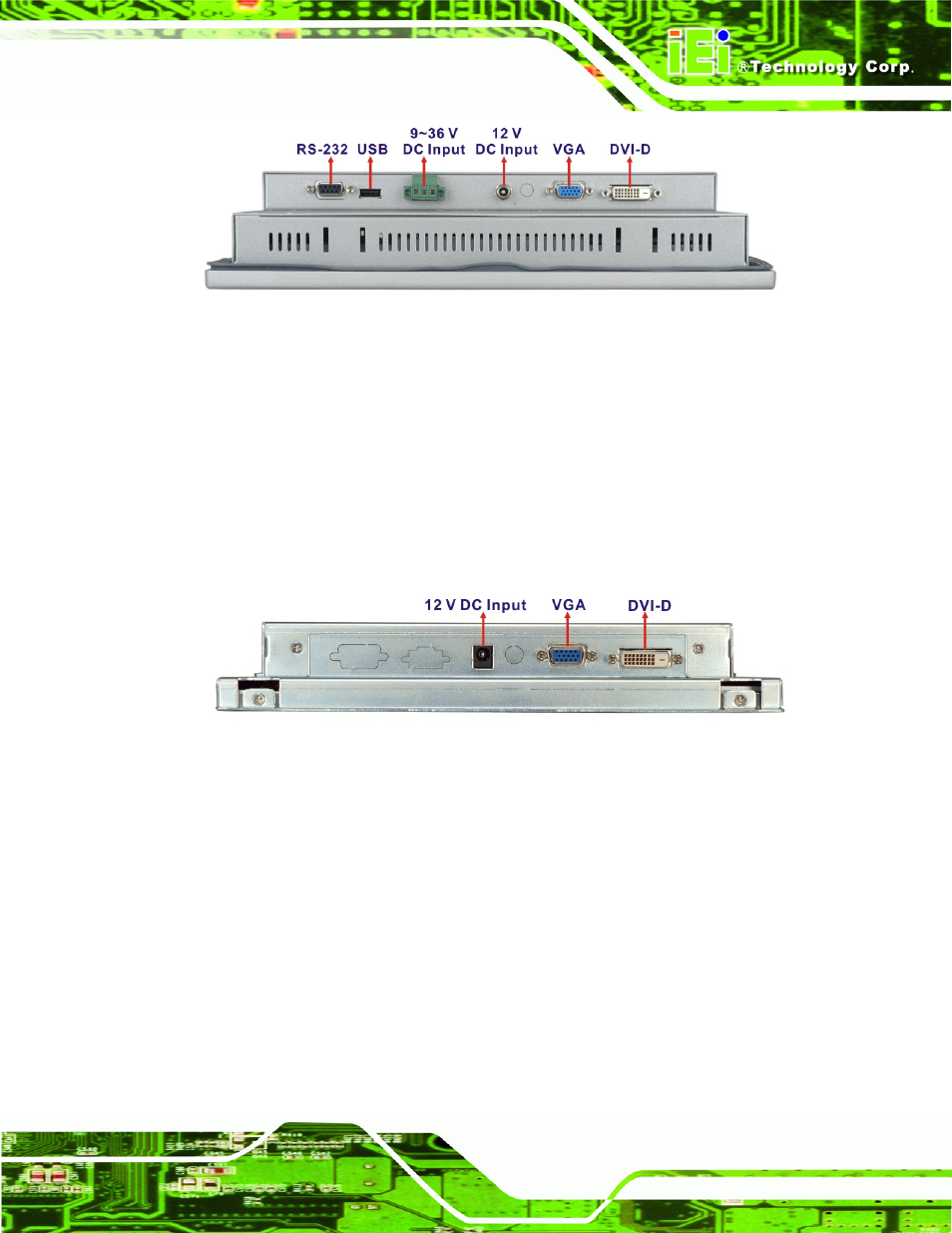

Figure 1-8: Side View
1.2.8 SRM-KIT Series I/O Panel
The I/O panel of the SRM-KIT Series shown in Figure 1-8 has the following interfaces.
ƒ 1 x 12V DC input connector
ƒ 1 x VGA connector
ƒ 1 x DVI-D connector
Figure 1-9: Side View
