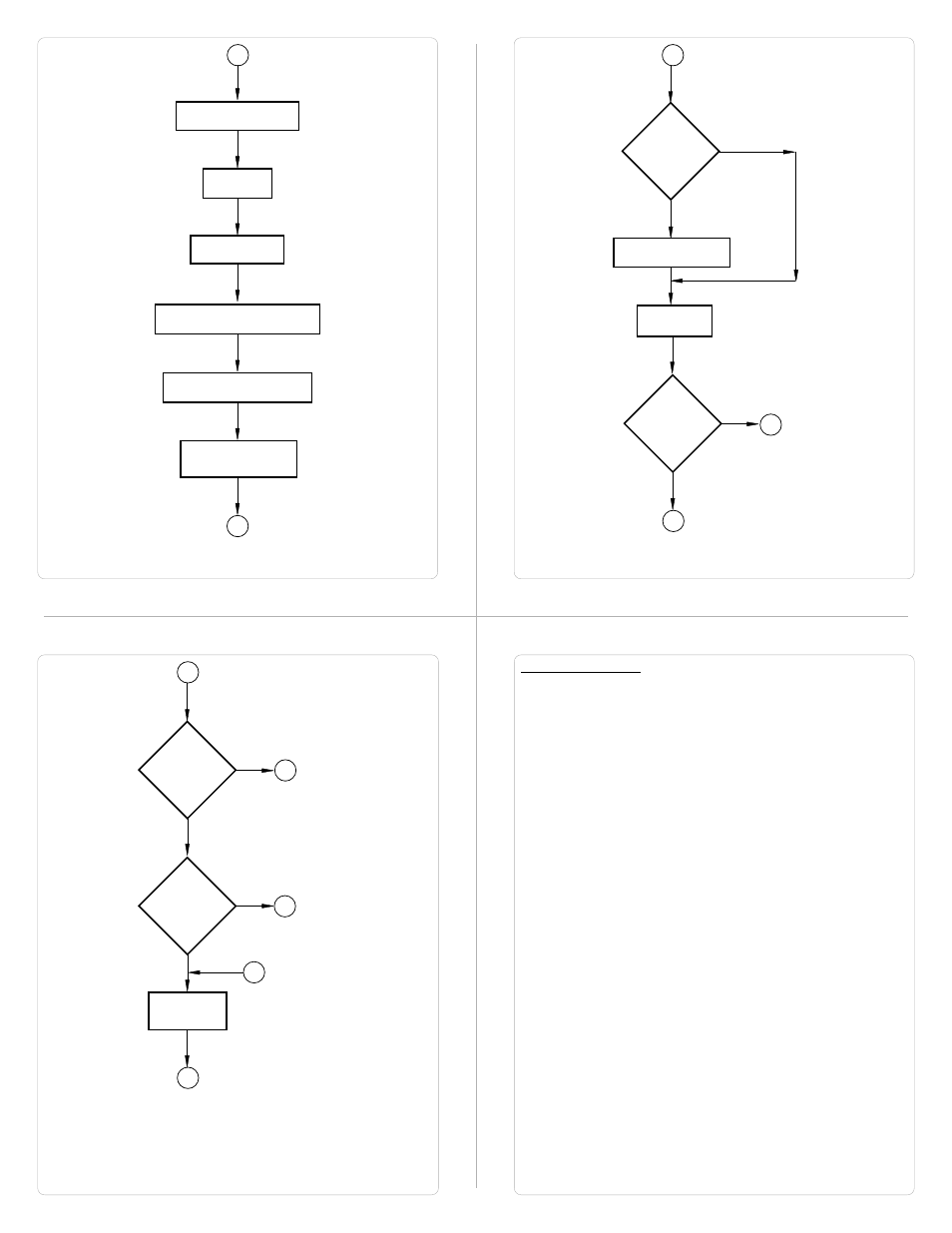

Check if same key
pressed
H
Upload Alarm Block
Serv Alarm
Display Screen
Display Associated Screens
Serv While Showing Task
I
Y
N
Key Release task
Same
key
Pressed
?
I
Y
N
Load new
keys
New
key
Pressed
?
A
J
Y
N
Valid Key
Password
?
A
Serv Key
Press Task
Password
Protected
Key ?
Y
G
N
G
J
A
Animation Properties:
All the objects (except Register / Coil Data Entry Objects) have
Animation Properties. Animation Property is a conditional property of
an object which changes with the value of the Tag associated with it.
Animation properties are of three types: Show / Hide, Flashing and
Percent filling.
1. Show / Hide Animation: Object is displayed only when the
condition specified by the user is true.
2. Flashing Animation: An object is flashed when the condition
becomes true.
Screen Objects have certain properties, referred as ‘Attributes’.
Attributes are useful for suggesting the importance of the particular
text object. Attributes for are:
- Flash
User can assign flashing to any text object *. An object can
flash at three different speeds: Slow, Medium and Fast. By
default no object is assigned flashing attribute. If flashing is
defined, slow flashing is selected by default.
* Data Entry
objects (Coil and Register) do not have flash attribute.
