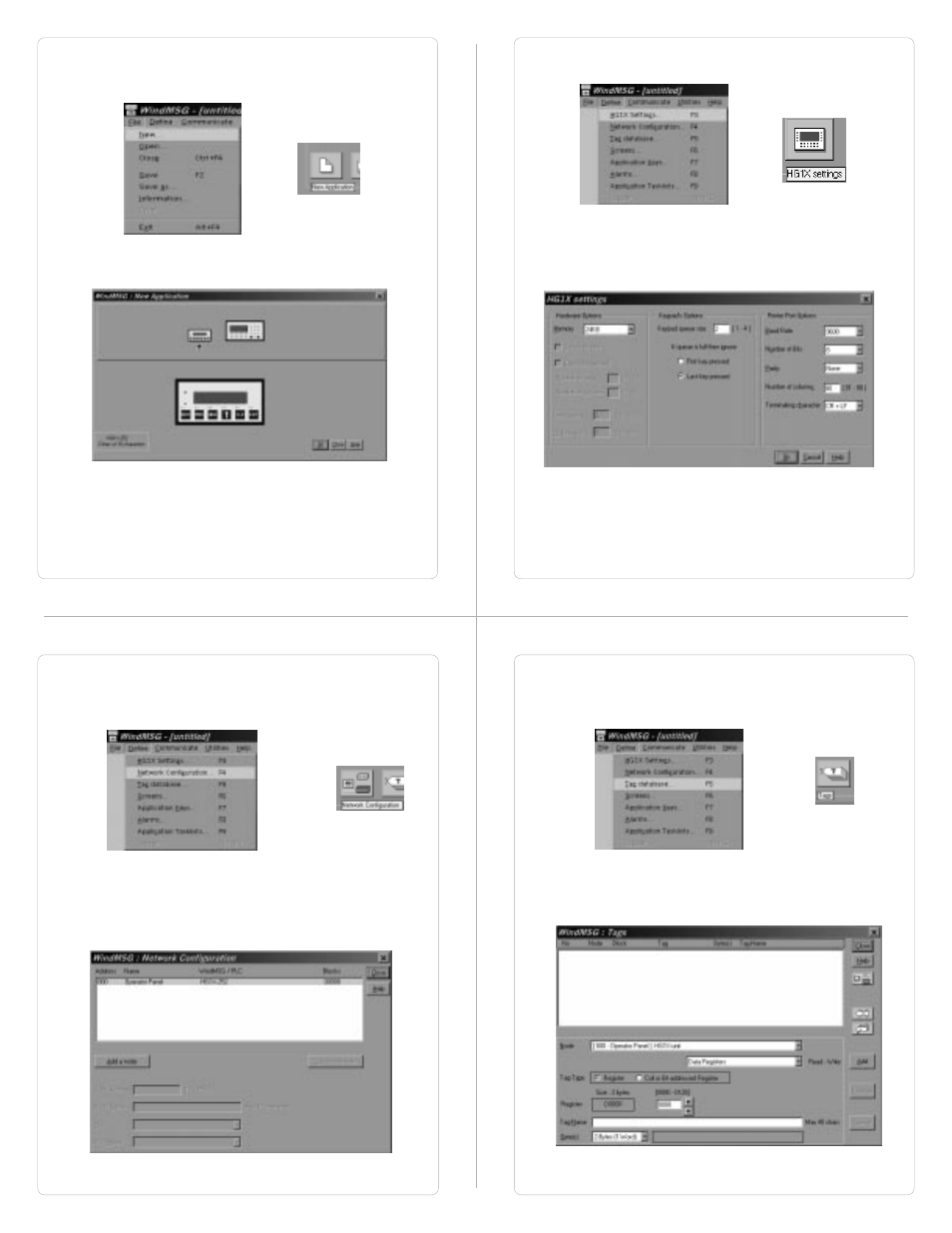

5.4 Creating new Application
1. Select New from File menu or click on the New
Application button.
2. In the dialog presented, select the HG1X Model and press
OK.
OR
3. Select HG1X Settings from Define menu or Press F3 key
or click on the HG1X Settings button.
OR
4. In HG1X Settings dialog box, select Application memory,
Key Queue Size, Serial printout options. Press
OK to
accept the selections made.
5.5 Setup Network / Node
1. Select Network Configuration from Define menu or Press
F4 key or click on the Network Configuration button.
2. In Network Configuration dialog box, Press Add a Node
button. Now select PLC and PLC Model. Assign a Node
Address for the node Press
OK to accept the selections
made. If another node has to be added repeat above steps
else press
Close
OR
5.6 Create Tag Database
1. Select Tag Database.. from Define menu or Press F5 key
or click on the Tags button.
2. In Tags dialog box select the Node, Tag type, Register,
enter Tag name and finally select number of bytes for the
Tag. Press
Add to accept the Tag. After adding all the
tags press Close button.
OR
