1.4 The USB function
The DDK-1700 can provide two separate functions by connecting the DDK-1700 with a PC via the
USB connector
1. Using an SD card as a card reader.
Insert an SD card into the DDK-1700 and then connect to a computer. You may then transfer files
between the SD card and the PC. Once you've connected your DDK-1700 to your computer
Windows will detect the connection and ask you what you want to do with the SD card.

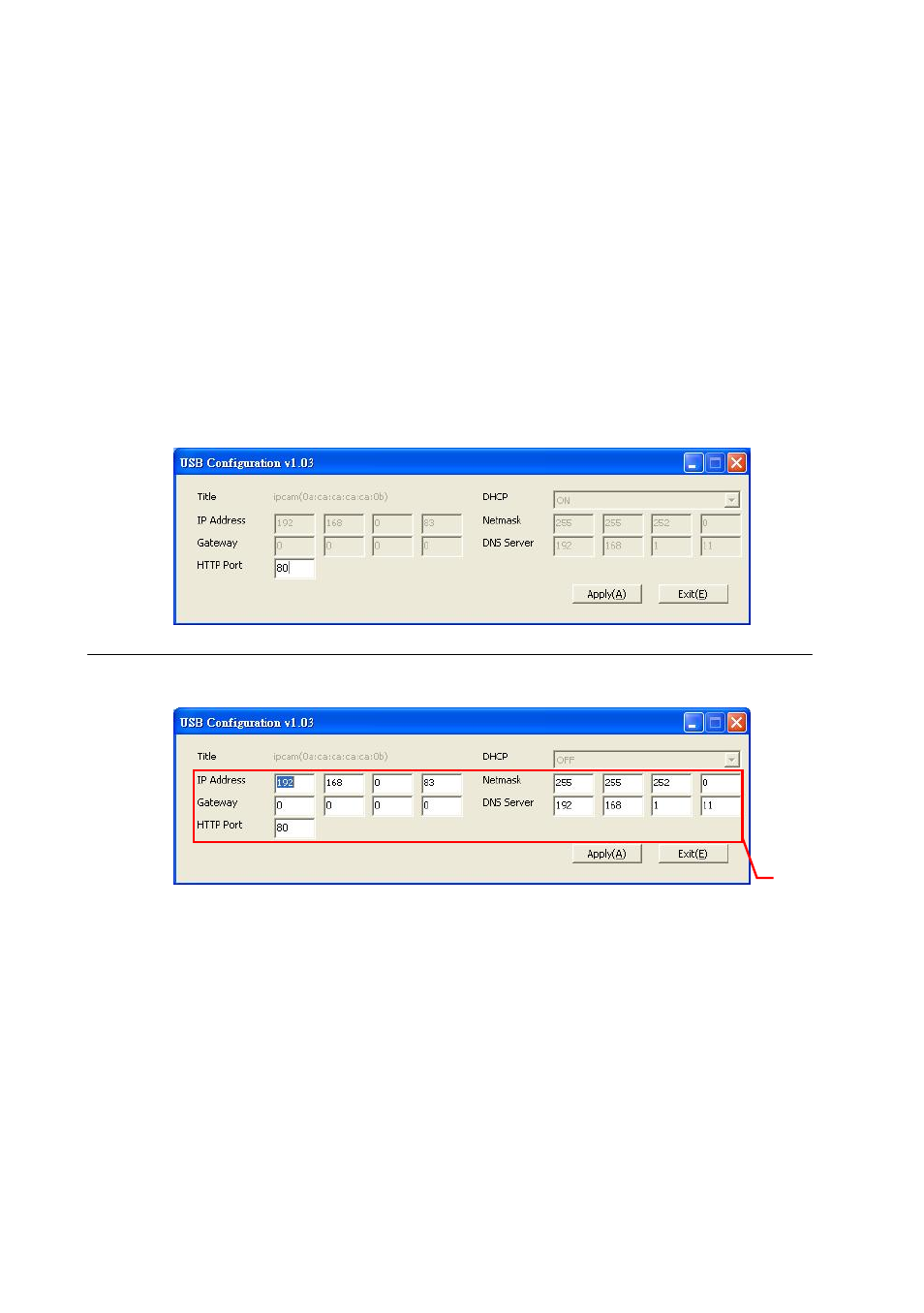

2. Using an SD card as a configuration tool.
Before using the USB configuration setting page remember to remove the SD card or the
computer won’t show this window.
DHCP ON
DHCP OFF
(default)
Network
Setting
NOTE: After changing the settings, click the “Apply” button. All changes will be effective
after removing the USB connector.
NOTE: After the IP address has been changed or reset, unplug the network cable and
then plug it in again to make sure the network connection is in normal mode.
