AiP-N series 16CH/9CH/4CH Manual
8

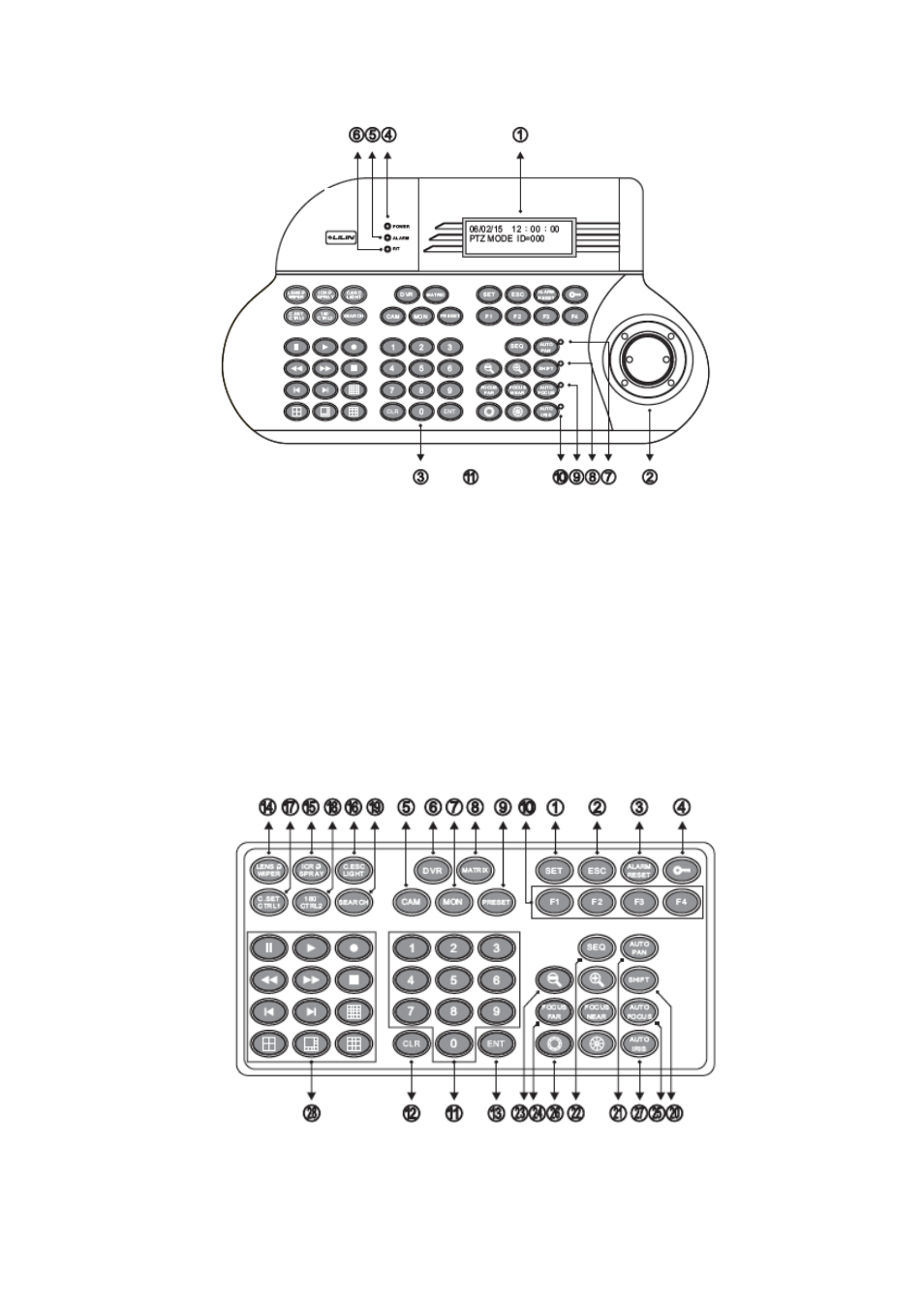

1.4 Keyboard
Keyboard
controls
1. LCD display – display the keyboard system setup menu and operation information
2. Joystick – 3 axis (Pan/Tilt/Zoom) / 2 axis (Pan/Tilt)
3. Keypad panel – there are 54 keys which can control PTZ, matrix, DVR and telemetry receivers
4. Power indicator
5. Alarm indicator
6. R/T indicator – data communication indication
7. Auto pan indicator
8. Shift indicator – shift key status indication
9. Auto focus indicator
10. Auto iris indicator
11. RJ-45 connector
1. Set – enter setup menu mode
2. ESC
– exit
3. Alarm reset – reset alarms and video loss
alarms
