Quick Installation Guide
This guide has been designed to provide a basic overview of key installation processes. If you require more
detailed instructions, please refer to the full installation guide that follows this section
Chapter 1: Rear Panel

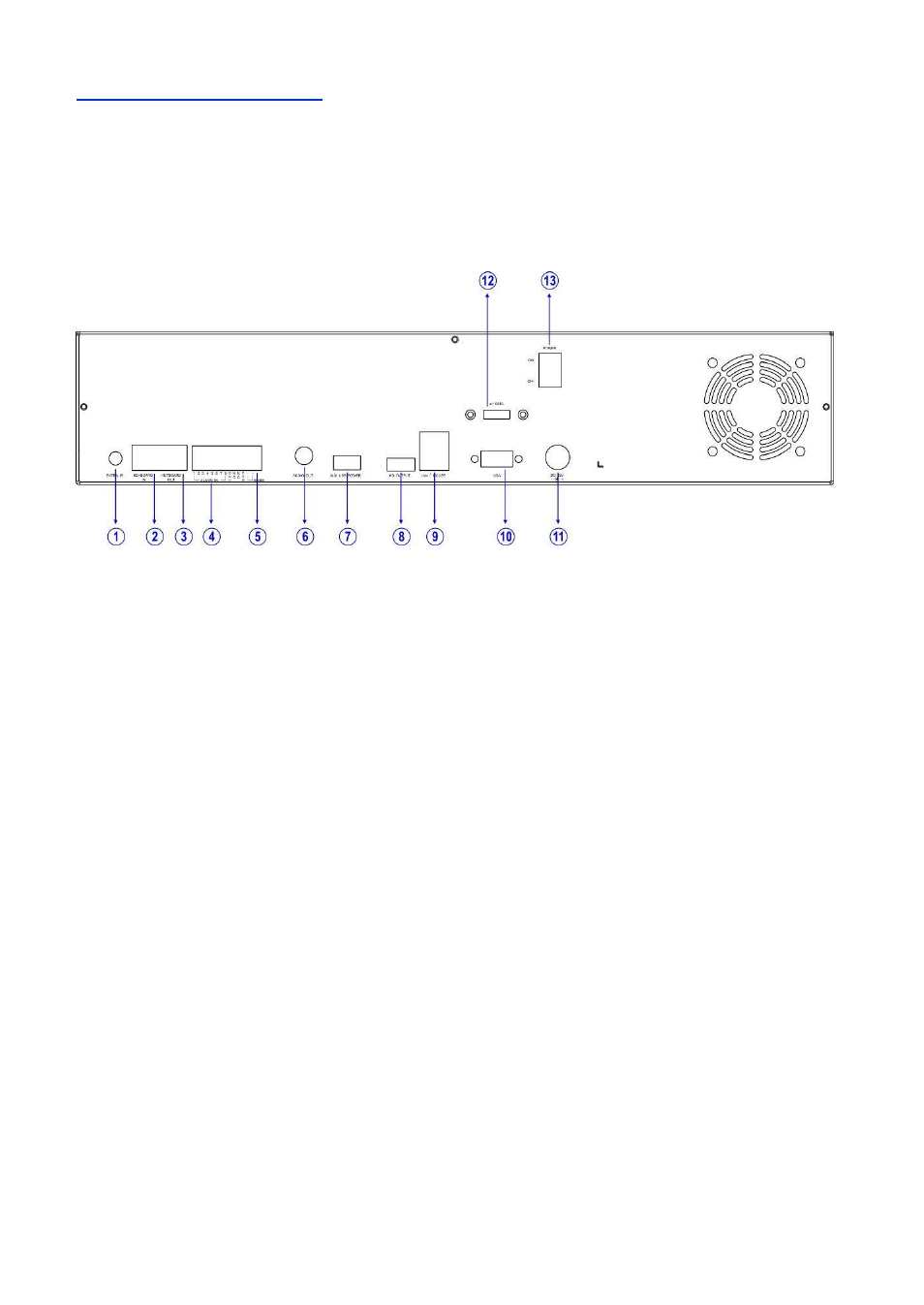

1.1 16CH Rear View
1. External IR receiver (RCA) 7. Aux USB Power
2. RJ-45 Keyboard-in
Connected from previous DVR’s
keyboard output in daisy chain
8. HDMI Output
3. RJ-45 Keyboard-out
Connect to the next
DVR’s input
9. LAN / USB Mouse
RJ-45 connector and USB mouse
4. Alarm I/Os
Alarm 8 input switches, 1 N/O alarm
output, and 1 N/C alarm output
10. VGA Output
5. RS-485
For PTZ connection
11. DC 12V Input
6. Audio Output
RCA audio connector
12. eSATA Output
13. Power Switch
