AiP-N series 16CH/9CH/4CH Manual
55

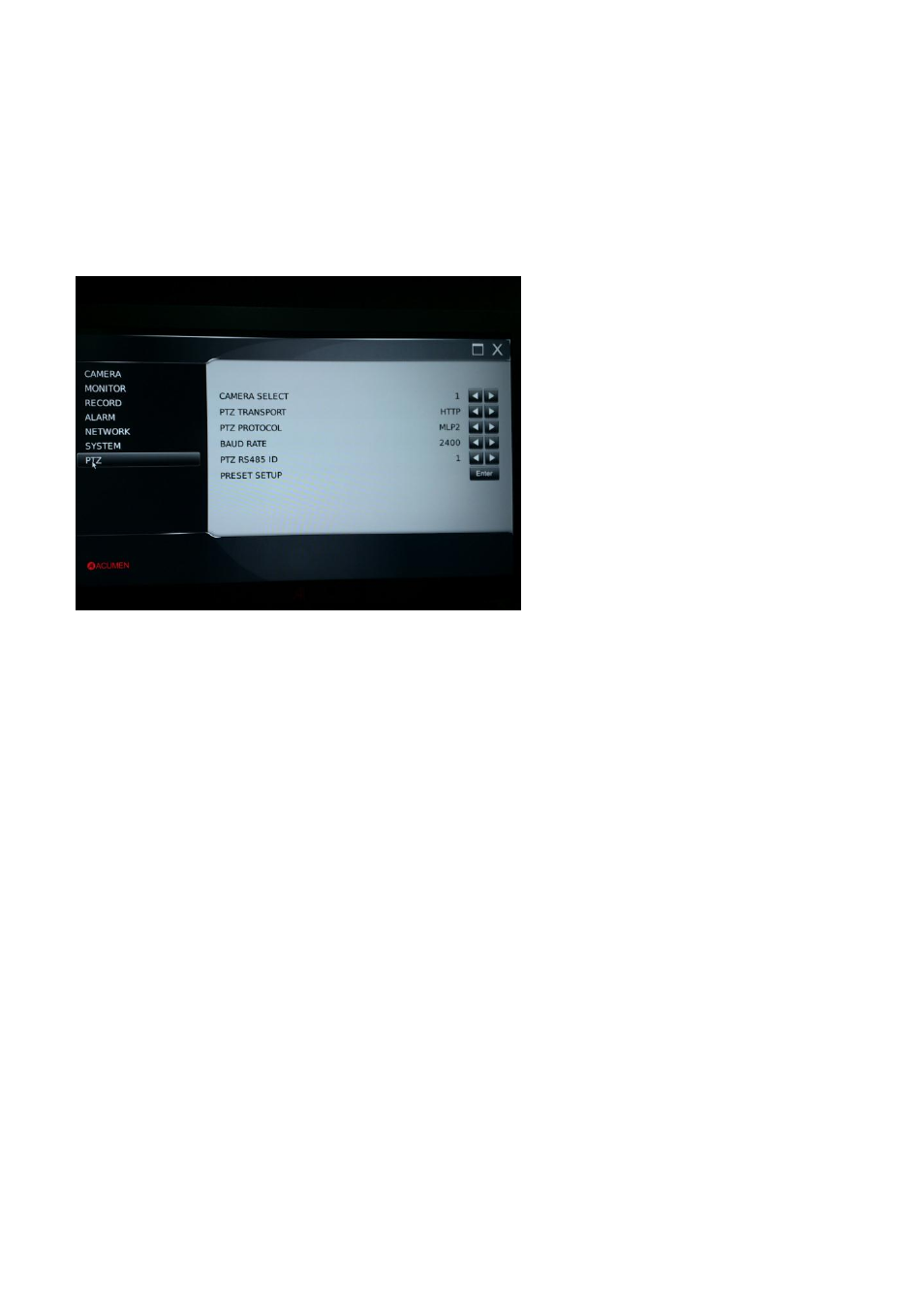

1.7 PTZ setup
The NVR can control RS-485 PTZ or IP PTZ cameras. To setup PTZ connection, follow these instructions:
1.7-1 Camera select
Use the directional arrows to select the camera you wish to edit
1.7-2 PTZ transport
Select from ONVIF, HTML or RS-485 transport. If RS-485 is selected the camera must be connected to the
RS-485 output on the back of the NVR.
1.7-3 PTZ protocol
PTZ protocols include MLP1, MLP2, Pelco D, and Pelco P.
