To setup an AiP camera, follow these instructions.

Camera IP address: the IP address of the AiP camera

Camera HTTP port: the HTTP port number of the IP address (default 80)

Video RTSP port: the RTSP port number of the IP address (default 554)

Username: username of the AiP camera (default: admin)

Password: password of the AiP camera (default: pass)
1.1-8 WS-Discovery
Web Services Dynamic Discovery (WS-Discovery) is part of the ONVIF protocol for searching AiP cameras
on a LAN.

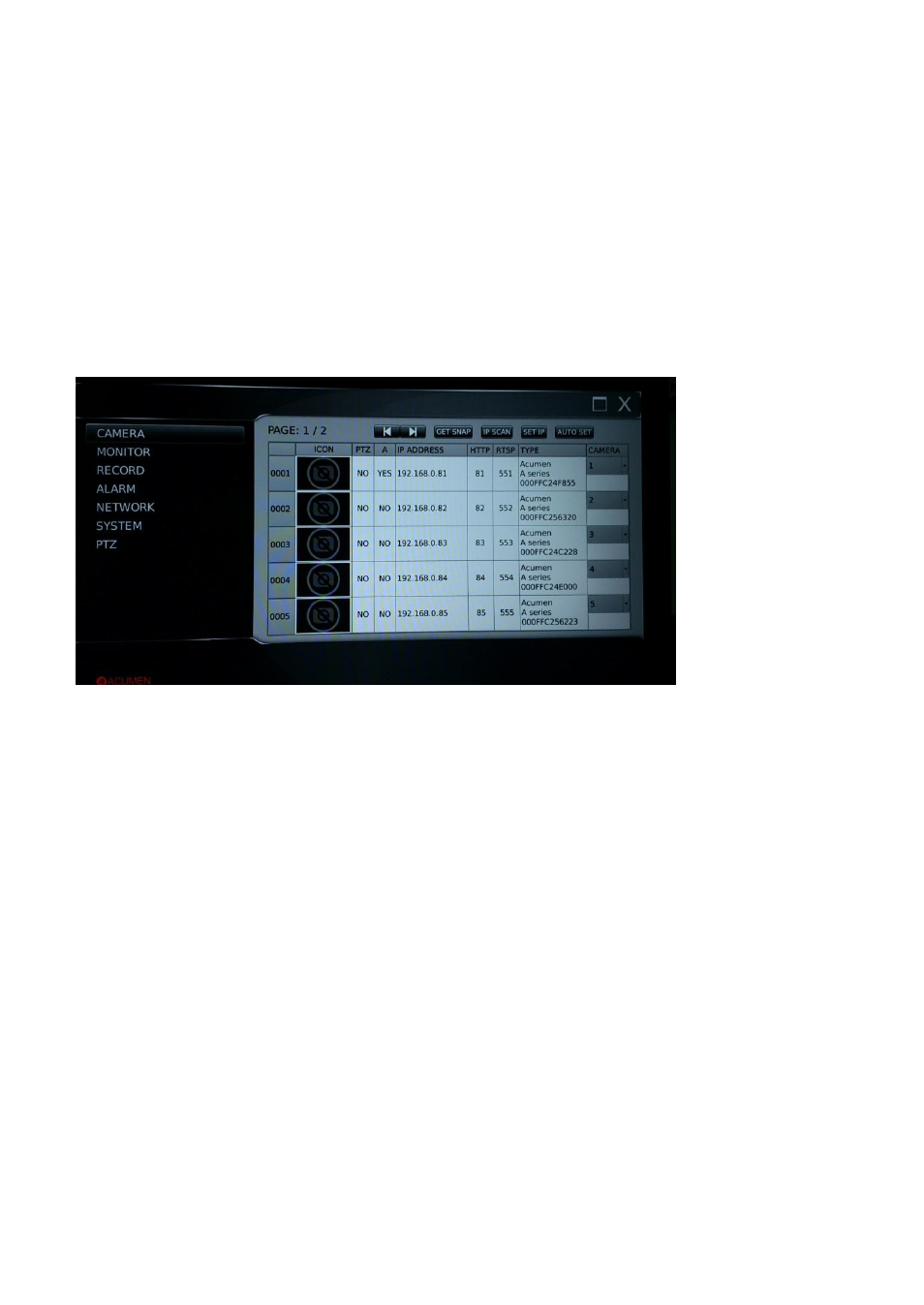

Use this utility to scan the LAN
After scanning, assign the relevant cameras to a channel by selecting channel number in right hand camera
column
‘Get Snap’ will take an image for each listed camera to make identification easier.
Set IP:
