AiP-N series 16CH/9CH/4CH Manual
5
User Guide
Chapter 1: Basic Operation

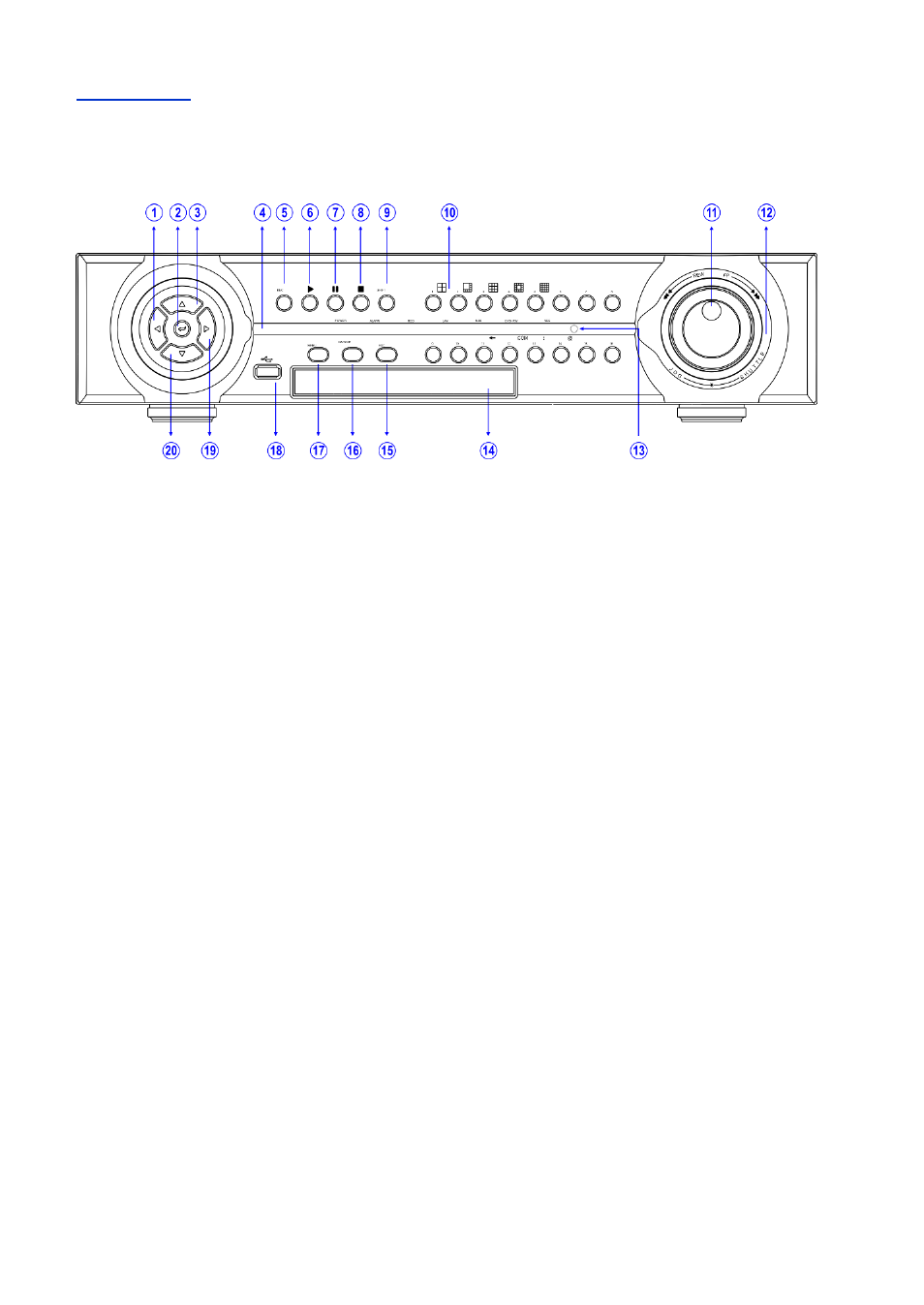

1.1 16CH Front Panel
1. Left
Move cursor left
Pan left
Decrease value
2. Enter
Enter operation in menu setup
Instant PTZ camera selection at live mode
Camera active
3. Up
Move cursor up
Tilt up
4. LED status panel
5. REC button
Start or stop recording
6. Play button
Use this button to start playback
7. Pause button
8. Stop button
9. Shift
Mode switch for split-display or camera
selection
10. Split-display/camera buttons
4, 8, 9, 13, 16 split-display
Camera selection mode
11. Jog dial
Play recorded image frame by frame in
playback
Perform zoom in and out
12. Shuttle ring
Fast forward video in playback mode.
13. IR receiver
14. Built-in Slim DVD/RW drive
(DVD model only)
15. ESC button
16. Backup button
17. Menu button
18. USB 2.0 connector
USB flash disk
USB DVD/RW
19. Right button
Move cursor right
Pan right
Increase value
20. Down button
Move cursor down
Tilt down
