AiP-N series 16CH/9CH/4CH Manual
56
1.7-4 PTZ model and baud rate
If the PTZ protocol is transmitted via traditional RS-485 wires attached to the NVR you need to setup the
baud rate and RS-485 ID respectively.
Table below shows listed models in the PTZ protocol list:
Model Baud Rate Number of Bytes
Pelco D 2400~9600 None
Pelco P 2400~9600 None
1.7-5 Preset setup

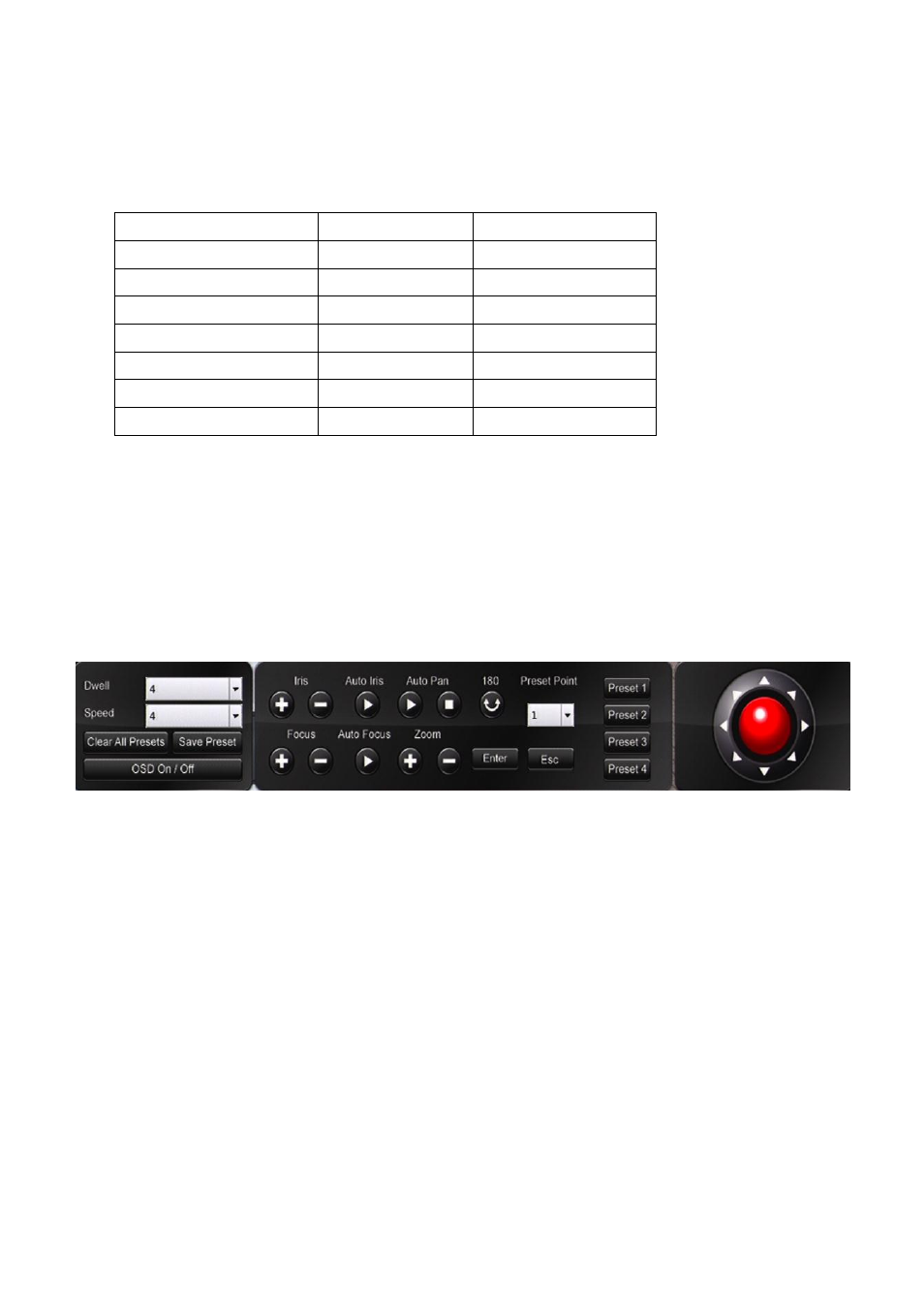

All features of PTZ can be configured from the live menu. You can also enter preset positions through the
preset set up option in the PTZ menu
Setting preset
Enter the preset setup then select your desired preset point from the dropdown bar
Enter dwell
Define the dwell time of a preset using the dropdown menu to select desired time. Dwell number ranges
from 0 to 255 seconds (the shortest to the longest).
Speed
Define the speed of the previous preset to the next preset, using the dropdown menu to select desired time.
The speed number ranges from 1 to 8 (the slowest to the fastest). The speed might vary based on different
PTZ camera’s settings.
Position
Use the joystick/controller to adjust the preset PTZ to your desired location
