Before Making Copies 2
KM-C1530 2-13

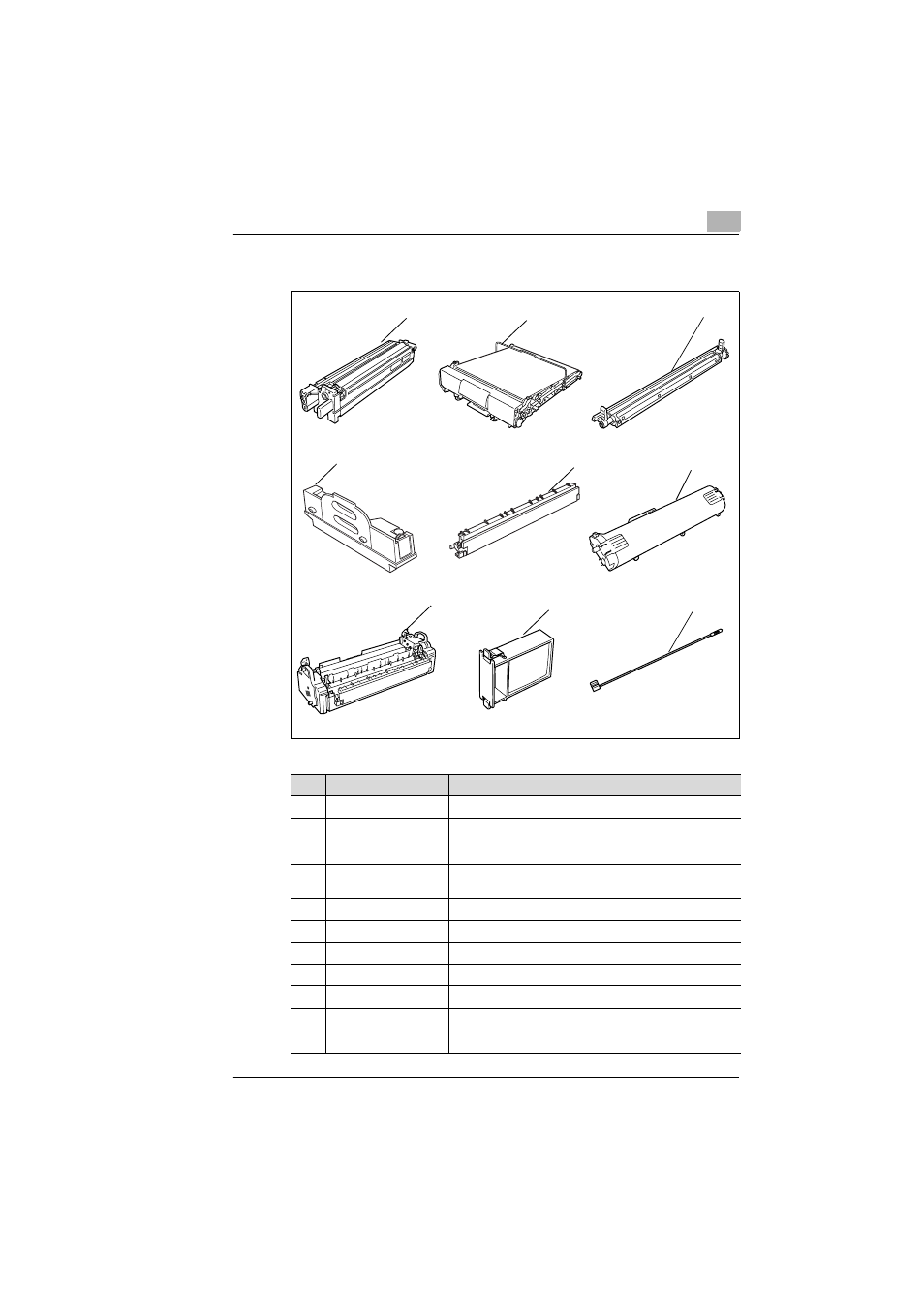

Supplies and Parts
1 2 3
4
5 6
7
8
9
No. Part Name Description
1 Imaging unit Generates the copied image
2 Image transfer belt unit Layers onto the image transfer belt each of the single
colors of the image generated by the imaging unit in order
to create a full-color image
3 Image transfer roller
unit Transfers onto the paper a full-color image generated by
the image transfer belt unit
4 Waste toner bottle Collects waste toner
5 Oil-coating unit Supplies oil to the fusing roller
6 Fusing web unit Supplies oil to the fusing belt
7 Fusing unit Fuses the transferred toner to the paper
8 Ozone filter Collects the ozone generated in the copier
9 LED cleaning tool Used to clean the surface of the LED unit, for example
when replacing the image transfer belt unit
Store in a safe place for later use.
