Ethernet Connector
The 8-pin RJ-45 connector for 10/100 Mb/sec Ethernet is wired as shown:

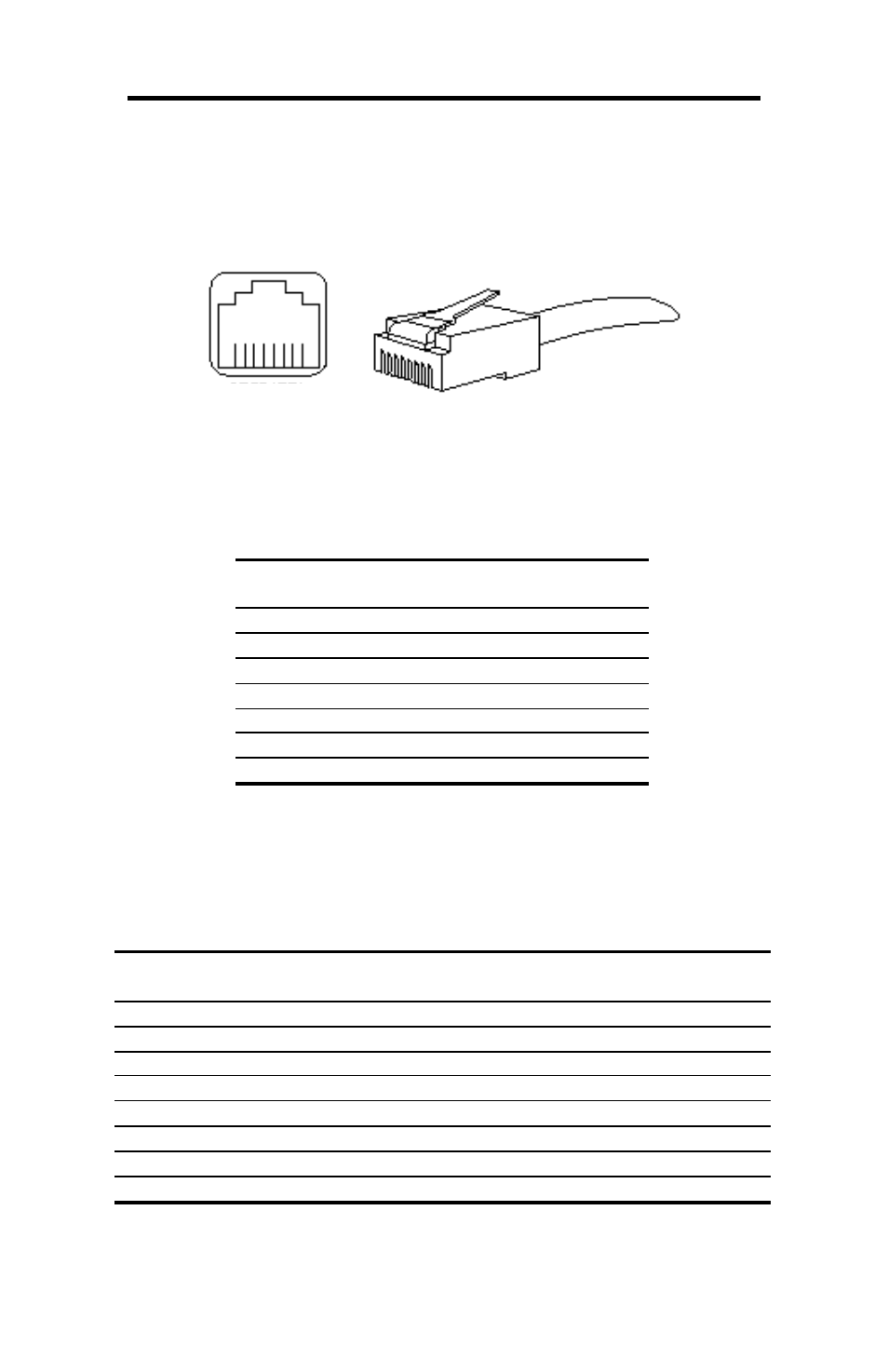

Figure 16: 8-Pin MJ Connector (Front)
With the connection pins assigned as shown:
Pin Number
Signal Name
1
Transmit +
TX (+)
2
Transmit -
TX (-)
3
Receive +
RX (+)
4
No Connection
NC
5
No Connection
NC
6
Receive -
RX (-)
7
No Connection
NC
8
No Connection
NC
Table 10: 8-Pin MJ Connector Pin Assignments
Connection from the ITI-8241C-S adapter to a network hub must be made as
shown:
Straight Through
Adapter Pin
Hub Pin
TX (+)
1
ßà
1
RX (+)
TX (-)
2
ßà
2
RX (-)
RX (+)
3
ßà
3
TX (+)
4
4
5
5
RX (-)
6
ßà
6
TX (-)
7
7
8
8
87654321
