Configuring the Video for Rear I/O
To configure the ITI-8241C-S Video to exit the rear of the system cabinet via
the ITI-8241C-R rear I/O module, use the following procedure:
§
Locate J10 and J11. (See Figure 2 for jumper locations)
§
Move each of the jumpers on J10 and J11 from the “F”
position to the “R” position.

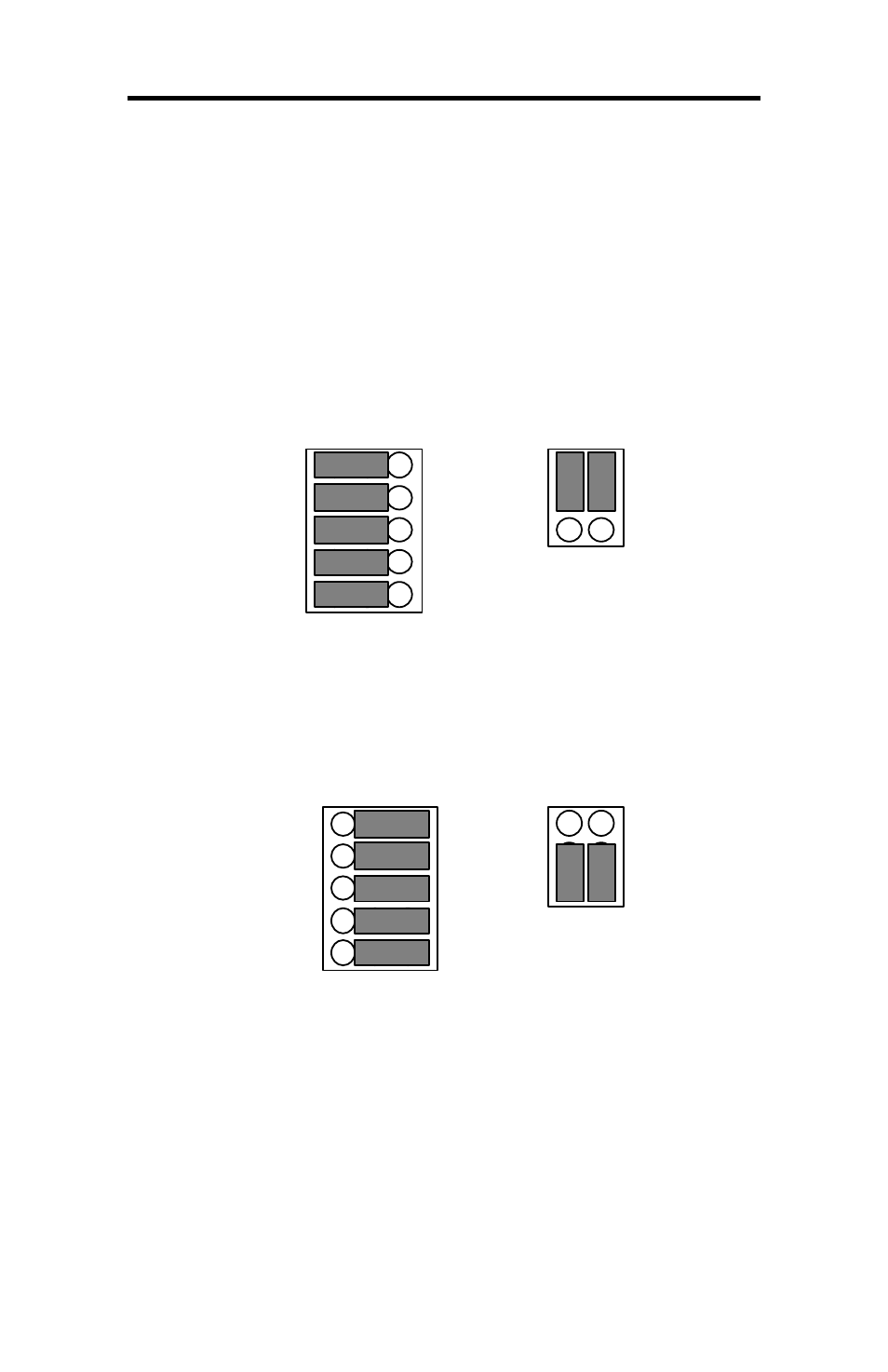

Figure 5: Video Configured for Front I/O
Figure 6: Video Configured for Rear I/O
The Video connector on the ITI-8241C-R rear I/O module will now be active,
and the front Video connector on the ITI-8241C-R module will be inactive.
F F
R
R
J11
J10
F F
R
R
J11
J10
