Gold's Gym GGTL90608.0 User Manual

Page 9

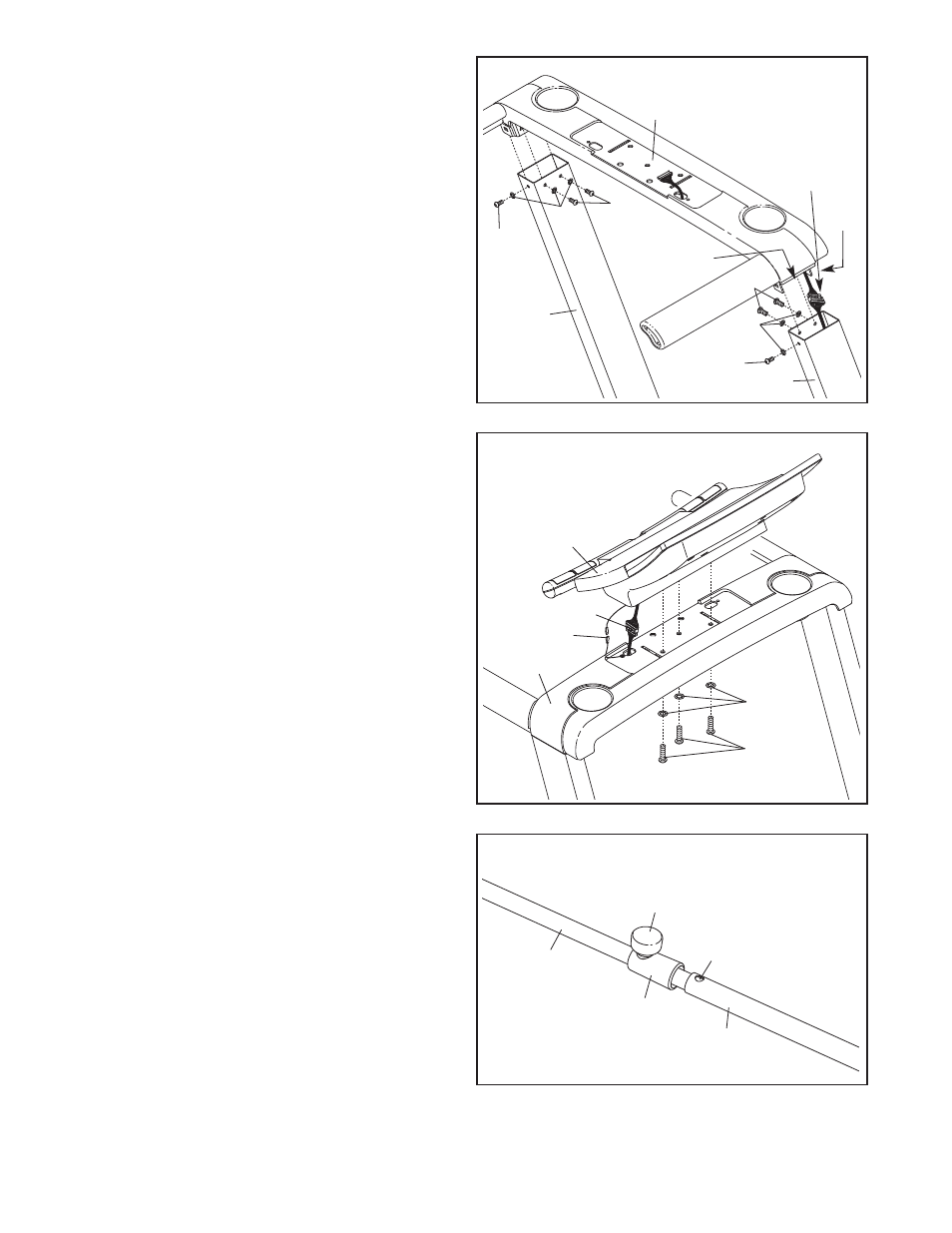

8. Insert the indicated connectors into the Right

Upright (78).

Next, insert the fronts of the brackets on the

Bridge (95) into the Uprights (74, 78), and then

fully insert the brackets. Make sure that the

plastic edges of the Bridge are inside the

Uprights.

Attach the Bridge (95) with six 1/4" x 1/2" Bolts

(7) and six 1/4" Star Washers (10); start all six

Bolts before tightening any of them.

See steps 4 and 6. Tighten the four 3/8" x 4 1/2"

Bolts (6).

Connectors

Front

Edge

9. Have a second person hold the console assem-

bly near the Bridge (95). Connect the Bridge

Wire (52) to the console assembly wire. See the

inset drawing in step 7. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try

again. IF THE CONNECTORS ARE NOT CON-

NECTED PROPERLY, THE CONSOLE MAY

BE DAMAGED WHEN THE POWER IS

TURNED ON.

Connect the Console Ground Wire (101) to the

console assembly ground wire. Insert the wires

into the console assembly.

Attach the console assembly with three 3/8" x

1 1/4" Bolts (5) and three 3/8" Star Washers (9).

Be careful not to pinch the wires.

Console

Assembly

101

10. Identify the Storage Latch (53). Remove the tie

from the end of the tube. Make sure that the

sleeve has been slid over the indicated hole and

that the Latch Knob (54) is locked into the indi-

cated hole. Pull on the sleeve to make sure

that it is locked into place.

Sleeve

Hole

Tube
