Gold's Gym GGTL90608.0 - Manual (Page 23)

23

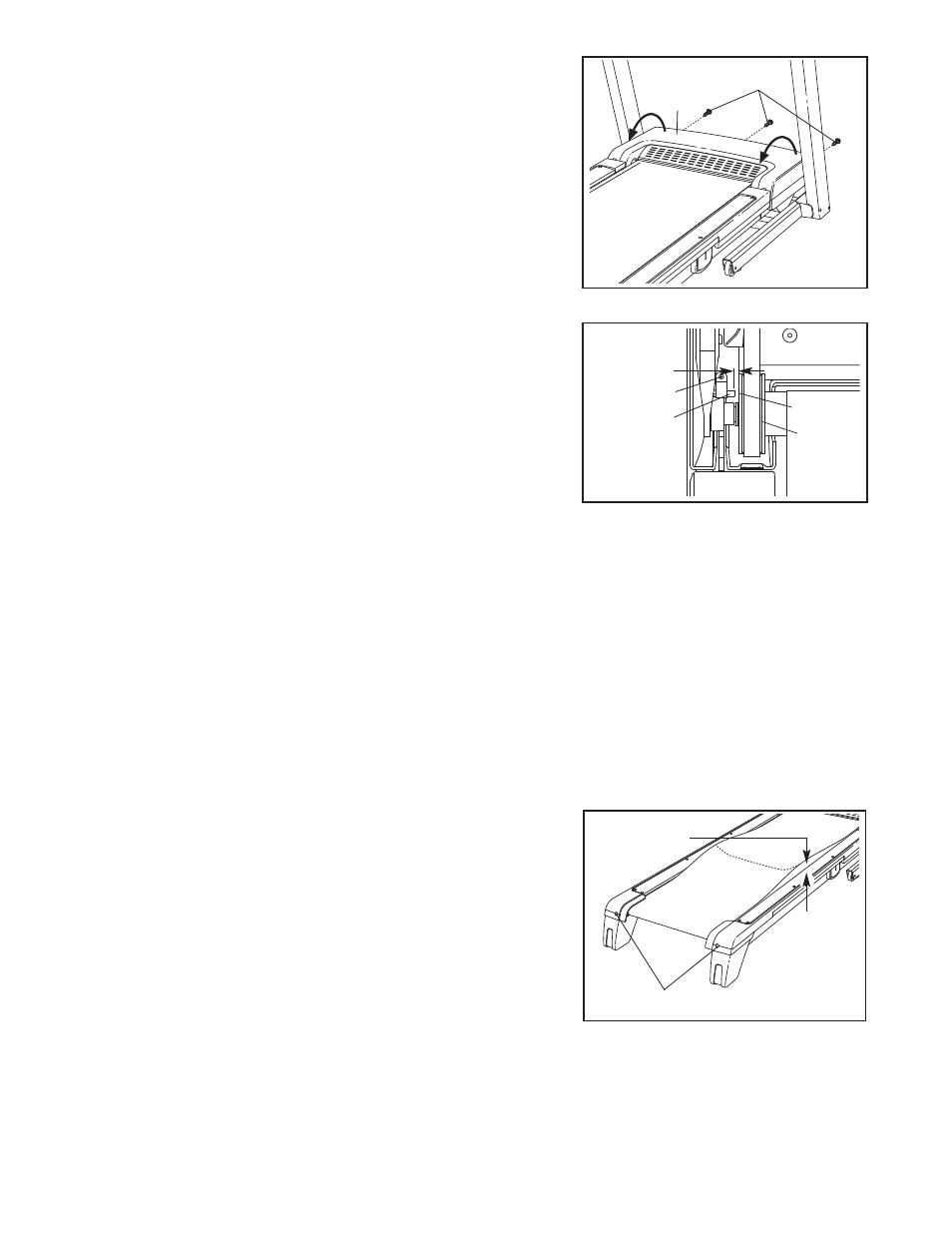

Remove the three 3/4" Screws (12) and carefully
pivot the Hood (61) off.
Locate the Reed Switch (71) and the Magnet (50)
on the left side of the Pulley (51). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet and
the Reed Switch is about 1/8 in. (3 mm). If neces-
sary, loosen the 3/4" Reed Switch Screw (15),
move the Reed Switch slightly, and then retighten
the Screw. Reattach the Hood (not shown). If nec-
essary, tip down the Uprights (not shown), reattach
the Hood Screws (not shown) and raise the
Uprights. Run the treadmill for a few minutes to
check for a correct speed reading.
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION: a. Hold down the Stop button and the Speed increase button, insert the key into the console, and
then release the Stop button and the Speed increase button. Press the Incline increase or de-
crease button. The treadmill will automatically rise to the maximum incline level and then return to
the minimum level. This will recalibrate the incline system. If the incline does not calibrate, press
the Stop button, and then press the Incline increase or decrease button again. When the incline
is calibrated, remove the key from the console.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 12.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
rear roller bolts counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
c. If the walking belt still slows when walked on, see the front cover of this manual.
Top
View
50
15
71
1/8 in.
51
Rear Roller Bolts
2–3 in.
b
61
12
