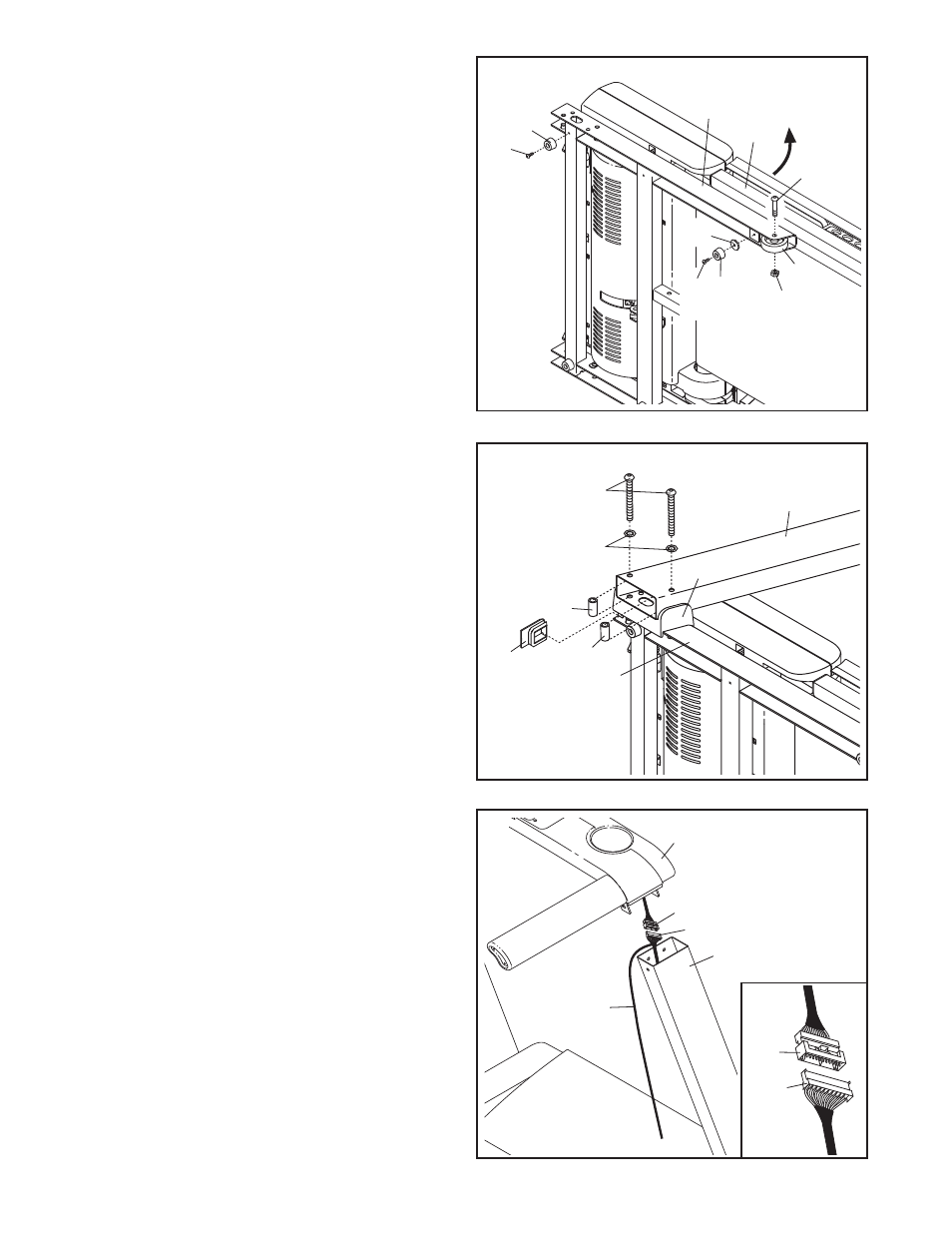

6. Hold a Bolt Spacer (80) inside the lower end of
the Left Upright (74). Insert a 3/8" x 4 1/2" Bolt
(6) with a 3/8" Star Washer (9) into the Left
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (80), 3/8" x 4 1/2"
Bolt (6), and 3/8" Star Washer (9).
Orient the Left Upright (74) and the Left Upright
Spacer (76) as shown. Hold the Left Upright
Spacer and the Left Upright against the Base
(83). Partially tighten the two 3/8" x 4 1/2" Bolts
(6); do not fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
With the help of a second person, tip the tread-
mill so that the Base (83) is flat on the floor.
76
74
6
83
80
80
77
9
6
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so the treadmill is more stable; do
not fully fold the Frame yet.
Attach a Base Pad (81) to the Base (83) in the
location shown with a 1" Tek Screw (2) and a
Base Pad Spacer (13). Then, attach another
Base Pad (81) with only a 1" Tek Screw (2).
Remove the 3/8" Nut (8) and the 3/8" x 2" Bolt
(4) from the Base (83). Attach a Wheel (84) with
the Bolt and the Nut that you just removed. Do
not overtighten the Nut; the Wheel must turn
freely.
5
83
84
56
4
8
81
2
81
13
2
7. Have a second person hold the Bridge (95) near
the Right Upright (78).
Connect the Upright Wire (38) to the Bridge Wire
(52). See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Then, remove the wire tie from the
Upright Wire.
78
95
52
Wire Tie
7
38
38
52
