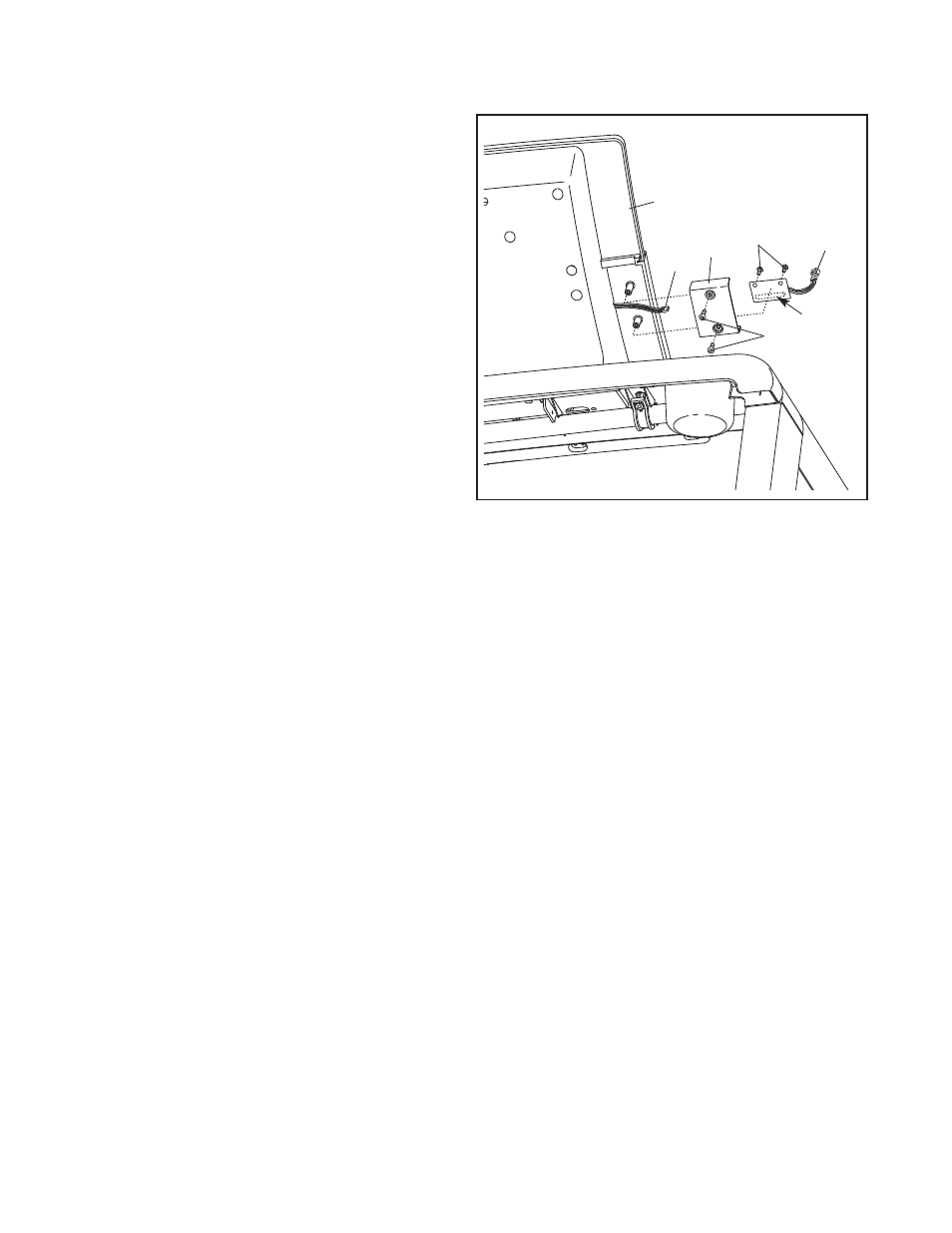

If you purchase the optional chest pulse sensor (see page 19), follow the steps below to install the re-
ceiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged.
Remove the indicated 1/2" Screws (1) and the
Access Door (87) from the Console Back (91).
2. Connect the wire on the receiver to the indicated
wire extending from the Console Back (91).
Hold the receiver so that the small cylinder is
oriented as shown and is facing the Console
Back. Attach the receiver to the plastic posts on
the Access Door (87) with the two included
small screws.
3. Make sure that no wires are pinched.
Reattach the Access Door (87) with the 1/2"
Screws (1). Discard the other wires included
with the receiver.
Receiver
87
Small
Cylinder 1
91
Wire
Small
Screws
