Gold's Gym GGTL90608.0 - Manual (Page 7)

7

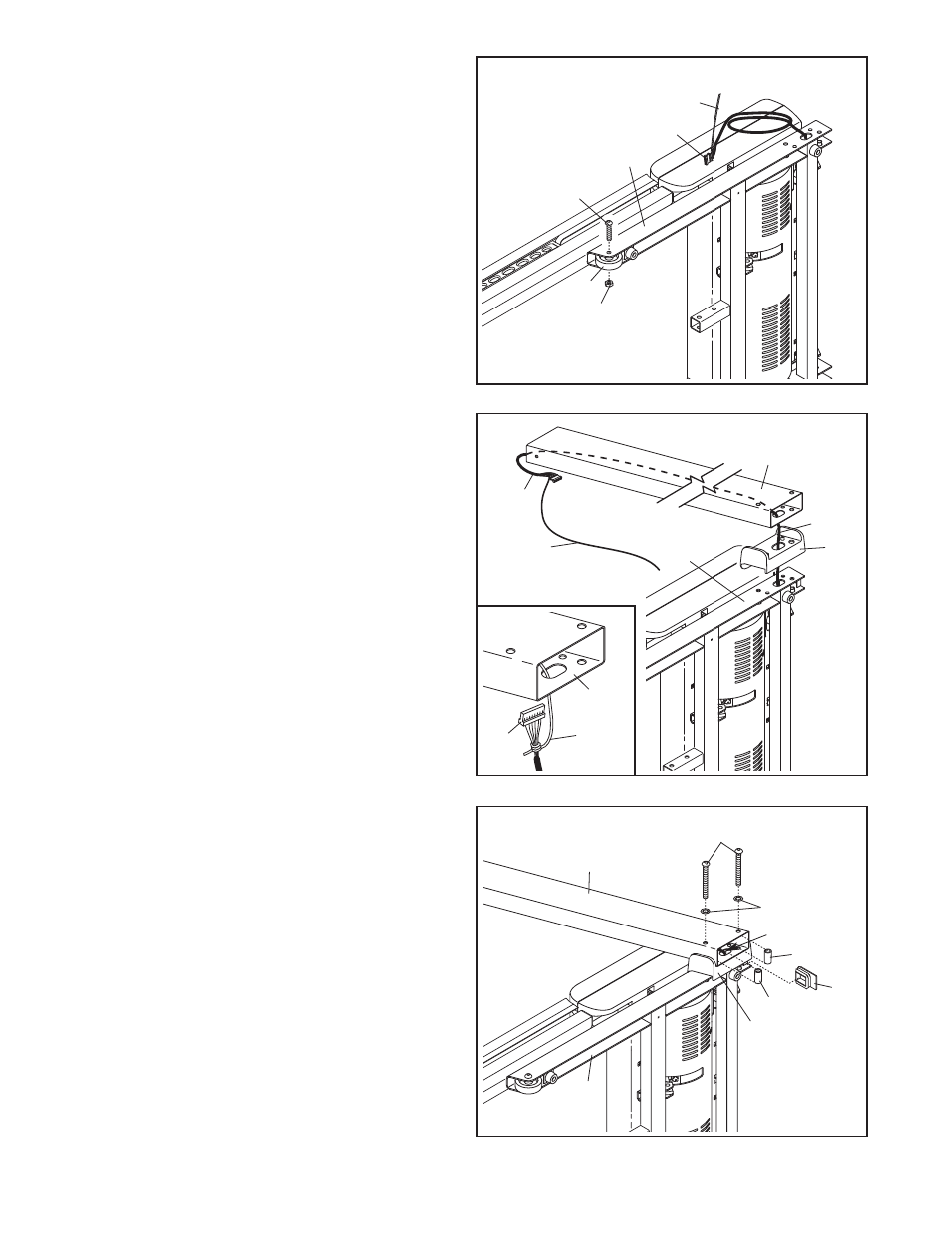

3. Identify the Right Upright (78) and the Right
Upright Spacer (79), which are marked with
stickers. Insert the Upright Wire (38) through the
Right Upright Spacer as shown. Set the Right
Upright Spacer on the Base (83).
Have a second person hold the Right Upright (78)
near the Base (83). See the inset drawing. Tie
the wire tie in the Right Upright securely around
the end of the Upright Wire (38). Then, pull the
other end of the wire tie until the Upright Wire is
routed completely through the Right Upright.
83
38
78
79
38
3
2. Remove the 3/8" Nut (8) and the 3/8" x 2" Bolt
(4) from the Base (83). Attach a Wheel (84) with
the Bolt and the Nut that you just removed. Do
not overtighten the Nut; the Wheel must turn
freely.
Cut the tie off the Upright Wire (38).
83
38
Tie
4
8
2
84
Wire
Tie
78
38
4. Hold a Bolt Spacer (80) inside the lower end of
the Right Upright (78). Insert a 3/8" x 4 1/2" Bolt
(6) with a 3/8" Star Washer (9) into the Right
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (80), 3/8" x 4 1/2"
Bolt (6), and 3/8" Star Washer (9).
Hold the Right Upright (78) against the Right
Upright Spacer (79). Be careful not to pinch
the Upright Wire (38). Partially tighten the 3/8"
x 4 1/2" Bolts (6); do not fully tighten the
Bolts yet.
Press a Base Endcap (77) into the Base (83).
79
78
38
9
77
80
80
6
4
83
Wire
Tie
