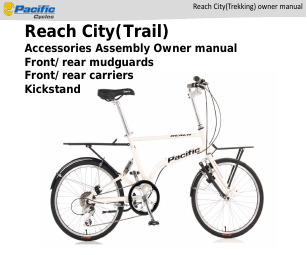

- Reach City(Trail)Accessories Assembly Owner manualFront/rear mudguardsFront/rear carriersKickstand
- Mudguard Assembly ProceduresStep 1: Remove the rear and front mudgaurds and parts from the packing.
- Step 2: (rear mudguard)For installation position the bicycle upside down, release the QR lever of the rear wheel. Move or remove the rear wheel. Use a 3mm allen key lock the mudguard stopper with 1mm play. Install the rear wheel and secure the QR lever.
- Step 3: (rear mudguard continued)Place the bicycle back on its wheel. Fix the front end of mudguard first. Insert the zip ties into the plastic adaptor, then use a 4mm allen key to fix the adaptor in position. Cut the extra length of zip ties close to the plastic adaptor. Lock the mudguard stay. Repeat the other side. Use 10mm wrench to adjust the clearance.
- Step 4: (front mudguard)Use a 4mm allen key to assemble the plastic adaptor below the V-brake. Repeat for the other side. Clamp the mudguard stay. Use 10mm wrench to adjust the clearance. Cut the extra length of zip ties if necessary.
- Carrier Assembly ProceduresStep 1: (front carrier)Use a 3mm allen key to tighten the center stay of the carrier to the upper part of the fork, use a 5mm allen key fix the carrier stay to both sides. Note: put spacer in between the stay and fork before tightening all bolts.
- 投影片編號 7
- Kickstand Assembly ProceduresUse the 8mm allen key to tighten the kickstand, adjust the angle to prevent interference with crank.
