Pacific Cycles 2RIDER Instruction Manuals and User Guides
We have 1 Instruction Manual and User Guide for 2RIDER Pacific Cycles
Manuals
| Recognized languages: | English |
|---|---|
| Pages: | 15 |
| Size: | 1.42 MB |
Show table of contents
Document Outline

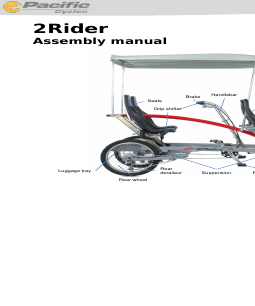

- 2RiderAssembly manual
- 2Rider features
- Specification
- Step 1: Take out all parts in the box and raise the chassis about 40 cm height for ease of assembly work.
- Step 2:Insert the handlebar stem to the steerer, tighten the clamp and the setting screw.
- Step 3:Connect the left steering link rod.
- Step 4:Assemble the pedals to crank arms at both sides.*This step will not affect any other sub-assembly, you can decide do it now or later.
- Step 5:Assemble the bow and front bumper to the chassis.
- Step 6:Assemble the front wheels to the front axle and hook the front V brake cable.*Tools needed:10mm Allen key wrench, 19mm open wrench.
- Step 7:Assemble the rear wheels to the rear dropouts and hook the rear V brake cable.
- Step 8:Assemble the luggage tray.
- Step 9:Assemble the seats, and insert the grip shifter on the right seat handlebar.
- Step 10:Assemble the kit seat to the kit seat stays, and assemble the kit seat subassembly to the main chassis. Insert the safety bar.
- Step 11:Assemble the canopy.
- Step 12:Align the handlebar and front wheels, adjust the derailleurs and brakes, and check all bolts and nuts are tight. Note: If you remove the canopy, 2Rider can stand up to save storage space.
