Holland Electronics HPH860 Instruction Manuals and User Guides
We have 1 Instruction Manual and User Guide for HPH860 Holland Electronics
Manuals
| Recognized languages: | English |
|---|---|
| Pages: | 6 |
| Size: | 210 KB |
Show table of contents
Document Outline

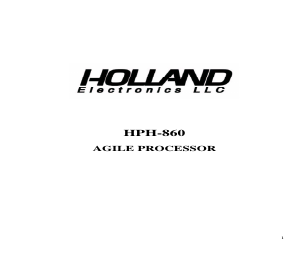

- HPH-860
- AGILE PROCESSOR
- Description
- Features
- Specifications
- Input Frequency Range: 54 to 806 MHz
- Input Channels: CATV channels 2 to 125
- Off-air channels 2 to 69
- Output Frequency Range: 54 to 860 MHz
- Output Channels: CATV channels 2 to 94, 95-99, 100-135
- Output Level: 57 dBmV min.
- Input Range: 0-30dBmV typ.
- Output Level Adjust Range: 48 to 60 dBmV
- Aural Carrier Adjust Range: 12 dB min.
- Noise Figure: 8 dB VHF, 10 dB UHF
- Spurious Outputs:
- In-band >-57 dB min, -60dB typ.
- Fv–1.5 MHz >-50 dB
- Out of Band > -57dB min, -60dB typ.
- Video Flatness: ( 1.7 dB
- IF Output: 35 ( 2 dBmV @45.75 (. .005 MHz
- Controls: Aural Carrier and Output Level
- Weight: 7.9 lbs.
- Size: 19˝ L × 13/4˝ H × 10˝ D
- Power Requirements: 90 - 260 VAC, 60 Hz
- Front & Rear Panels
- INPUT CHANNEL MODE SELECTION
- OUTPUT CHANNEL MODE SELECTION
