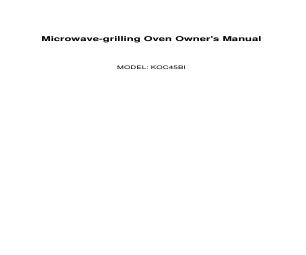

Campomatic KOC45BI Instruction Manuals and User Guides
We have 1 Instruction Manual and User Guide for KOC45BI Campomatic
Manuals
| Recognized languages: | English |
|---|---|
| Pages: | 20 |
| Size: | 728 KB |
Show table of contents
Document Outline
- PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
- 1.TECHNICAL SPECIFICATION.
- 2.PRECAUTIONS FOR USE
- If a permanent connection is used, the appliance’s power supply wire should be fitted with a polar breaking device with contact gap of at least 3 mm, located in an easily accessible position close to the appliance itself.
- If a socket and plug connection is used, check that they are of the same type. Do not use reducers, adapters or junctions since they cause overheating or burns. the ac power supply must be 220-240V,50Hz,with a minimum 16A distribution line fuse, or a ...
- 3.SAFETY PRECAUTIONS
- 4.GET TO KNOW YOUR OVEN
- 5.BEFORE INSTALLATION
- 6.DESCRIPTION OF FRONT PANEL CONTROLS
- 7.USING THE OVEN
- When the oven is used for the first time, it should be heated to the maximum temperature for long enough to
- burn off any oily residues left during the manufacturing process, which might contaminate foods with unpleasant smells.
- In case too much condensation produced on the inner glass of the microwave door and inside the cavity, don’t leave cooked food in the microwave for long.
- 8. FUNCTIONS
- When the power is on, “0:00” is flashing on DSP1. Turn PT1 to adjust hour time, then press and turn PT1 to set and adjust minute time, at last press PT1 again for confirming.
- The appliance is in 24-hour time system.
- Modify the current time: Under the standby mode, press PT1 for 3 seconds until the current time flashes on DSP1, then repeat the setting above.
- 8.2 Selecting the function
- Under the standby mode, all of the functions show on DSP3 after press PT2. Then turn PT2 to select the function, and the selected function will be displayed on DSP3, while the preset cooking time will be displayed on DSP1 and the preset parameters ( m...
- After selecting the microwave function “”, the indicator “” “” “” light up, press PT1 and turn PT1 to set the cooking time and the microwave power, “” “” indicator light; Press PT1 to adjust the duration, after the setting, press PT2, the appliance st...
- Press PT1 again to reset cooking power and cooking time.
- Microwave power:
- 1000/800/600/400/200/0W
- The longest cooking duration setting of microwaves power 1000W is 15 minutes, the other cooking duration is 90 minutes.
- After selecting the function “”, “” “” indicator light, press PT1 to set the cooking time; press PT1 again to adjust the duration; after the setting, press PT2, the appliance starts working immediately.
- Press PT1 again to reset cooking time。
- Press PT2, turn PT2 , after select the function “”, “” “” “” indicator light, press PT1 and turn PT1 to set the cooking time, press PT1 again to adjust the microwave power, after setting the microwave power; Press PT1 to set the duration; Press PT2 t...
- Press PT1 again to reset cooking power and cooking time.
- 8.6 Pizza function
- After selecting this function “”, the indicator “” “” light up, press PT1 to adjust the weight of pizza, weight indicator “” light up; After selecting the weight, press PT1, “” lights up, turn PT1 to adjust the duration; Press PT2, cooking starts im...
- 8.7 Defrost by Weight
- ⑴. After selecting the function “”, “” “” indicators are on, press PT1 to do the program selection, after selecting the program, press PT1 to adjust the weight, after adjust the weight; press PT1 to adjust the duration, time show district blinks and ‘...
- Press PT1 again to reset programm。
- ⑵. The appliance will pause after working half of time preset. “” stops blinking, DSP1 shows the rest defrost time. DSP2 shows ‘Turn’ blinking, it is off when open the door of the appliance. It continues to work when pressing PT2 again.
- We can calculate the defrosting time according to different food and weight, and microwave power can adjust automatically to reach the best defrosting effect. Furthermore, the table beneath offers reference value of defrosting referring to the weight,...
- 8.8 Defrost by time
- ⑴ After selecting Defrost function “”, “” “” indicators light up, press PT1 to adjust the cooking time; press PT1 again to adjust the duration; after the setting above, press PT2, cooking starts immediately.
- Press PT1 again to reset cooking time。
- ⑵ The appliance will pause after working half of time preset, and it stops blinking, defrost function “”, DSP1 shows the rest defrost time. DSP2 shows ‘Turn’ blinking, it is off when open the door of the appliance. It continues to work when pressing P...
- 8.9 Delayed Start time (Automatic cooking)
- ⑴. When PT1 is pressed to define a delayed start time the corresponding light “” starts to blink. DSP1 shows the current time and DSP2 shows ‘AUTO’. Turn PT1 to the right or left to change the delayed start time. Press PT2 to validate the delayed star...
- DSP1 shows the delayed start time you set and DSP2 is with no display when the appliance is in standby.
- ⑵. Press PT2 for 3 seconds if you want to cancel the selected function.
- 8.10 Pause in the process of cooking
- ⑴. You can stop the cooking process at any time by pressing PT2 or by opening the oven door. In both cases:
- The operating parameters (time, weight, power, etc.) can only be modified when the cooking process has been interrupted. Proceed as follows:
- 8.11 End of a cooking cycle
- At the end of the process you will hear three beeps and the display will show the word ‘End’.
- The beeps repeat every 30 seconds until the door is opened or PT2is pressed. The oven returns to the OFF setting.
- 8.12 8.12 show and child lock function
- 8.12.1 show function
- Under Off mode, the appliance will only show clock symbol“”. Press PT1 until DSP1and DPS2 shows OFF SHO, which means show function is not activated. Turn PT1 to activate ON SHO, press PT2 to confirm the activation of ON SHO.
- Under ON SHO mode, heating elements will not work, only lamp, cooling fan and motor are working. If you want the appliance to work, set the appliance as OFF SHO.
- Under ON SHO mode, the appliance will alternates between ON SHO and the function you set every 5 seconds.
- Note: Show function has a memory function. After Power is on, child lock function will continue to work.
- 8.12.2 Child lock function
- Under Off mode, the appliance will only show clock symbol“”. Press PT1 until DSP1 and DSP2 shows OFF SHO. Press PT1 again until DSP1 and DSP2 show OFF BLOC.
- Turn PT1 to activate child lock function ON BOLOC or to close child lock function OFF BLOC. When DSP1 and DSP2 show ON BLOC, press PT2 to confirm to activate child lock. And the symbol“” will appear on DSP4.
- Under child lock function, the appliance will display “bloc “for three seconds whether you press PT1 or PT2, and return to the previous function you set.
- Note: Child lock function has a memory function. After power is on, child lock function will continue to work.
- 8.12.3 Two ways to unlock
- Temporary unlock: Press PT1 until “”symbol on DSP4 disappear. And you could operate the oven. After 2 minutes, the appliance will be under child lock mode.
- After the two minutes, the appliance will automatically go into child lock mode whether the appliance was under standby or working mode.
- Permanent unlock: Under child lock mode, operate the appliance according to this chapter to unlock the oven.
- 8.13 Cooling fan system
- The appliance is equipped with a cooling system which comes into operation as soon as a cooking function starts.
- Operation of the fans generates a normal air flow which comes out above the door and may continue for a short time even after the appliance is switched off.
- 8.14 Inside light
- The appliance light comes on:
- ● When the oven door is opened in standby status
- ● If the oven door is left open, the oven light will automatically shut-off after 10 minutes.
- 9. RECOMMENDED BAKING MENU
- 9.1 Cooking with Microwave
- Warning! Read the section ‘Safety Precautions’ before cooking with your microwave.
- Follow these recommendations when cooking with microwave:
- ● Before heating or cooking foods with peel or skin (e.g. apples, tomatoes, potatoes, sausages) peel them so that they do not burst. Cut the food up before starting to prepare it.
- ● Before using a container or dish make sure that it is suitable for microwave use (see the section on types of ovenware)
- ● When cooking food with very little moisture (e.g. defrosting bread, making popcorn, etc.) evaporation is very quick. The oven then works as if it was empty and the food may burn. The appliance and the container may be damaged in such situation. You ...
- ● It is not possible to heat with much oil (frying) in the microwave.
- ● If you have several containers, such as cups, for example, set them out uniformly on the turntable plate
- ● Do not seal plastic bags with metal clips. Use plastic clips instead. Prick the bags for several holes so that the steam can escape.
- ● Check that they reach at least a temperature of 70℃ When heating or cooking foods.
- ● There might come steam on the oven door window during cooking and may start to drip. This situation is normal and may be more noticeable if the room temperature is low. The process of cooking is not affected by this. After you have finished cooking,...
- ● When heating liquids, use containers with a wide opening, so that the steam can evaporate easily.
- Prepare the foods as per the instructions and keep in mind the cooking times and power levels indicated in the tables.
- Keep in mind that the figures given are only indicative and can vary depending on the initial state, temperature, moisture and type of food. It is depending on the initial state, temperature, moisture and different types of food. It is advisable to ad...
- Cooking with microwave.
- 1. The greater the amount of food, the longer the cooking time. Keep in mind that:
- △ Double the quantity = double the time
- △ Half the quantity = half the time
- 2. The lower the temperature, the longer the cooking time.
- 3. Foods containing a lot of liquid heat up more quickly
- 4. Cooking will be more uniform if the food is evenly distributed on the turntable. If you put dense foods on the outer part of the plate and less dense ones on the centre of the plate, you can heat up different types of food simultaneously.
- 5. You can open the oven door at any time. When you do this the oven switches off automatically. The microwave will only start working again when you close the door and press the start key.
- 6. It takes less time if we put a cover over food, but the cover should have vents avoiding extreme pressure.
- 9.2. Defrosting with Microwaves
- General instructions for defrosting
- 1. When defrosting, use only dishes that are appropriate for microwaves.
- 2. The defrost function by weight and the tables refer to the defrosting of raw food.
- 3. The defrosting time depends on the quantity and thickness of the food. When freezing food keep the defrosting process in mind. Distribute the food evenly in the container.
- 4. Distribute the food well. You can use aluminum foil delicate food. Important: The aluminum foil should not come into contact with the oven inner cavity of the oven as this may cause electrical arcing.
- 5. Thick portions of food should be turned over several times in the process of baking.
- 6. Distribute the frozen food as evenly as possible since narrow and thick portions defrost more quickly than the thicker and broader parts.
- 7. Fat-rich foods such as butter, cheese and cream should not be completely defrosted. If they are kept at room temperature thy will be ready to be served in a few minutes. With ultra-frozen cream, if you find small pieces of ice in it, you should mix...
- 8. Place poultry on an upturned plate so that the meat juices can run off more easily.
- 9. Bread should be wrapped in a napkin so that it does not become too dry.
- 10. Remove frozen food from its wrapping and do not forget to take off any metal twist-tags. For containers that are used to keep frozen food in the freezer and which can also be used for heating and cooking, all you need to do is take off the lid. Fo...
- 11. The liquid resulting from defrosting, principally that from poultry, should be discarded. In no event should such liquids be allowed to come into contact with other foods.
- 12. Do not forget that by using the defrosting function you need to allow for standing time until the food is completely defrosted.
- 13. You should turn food over once the microwave alarms in the process of defrosting, with 'turn' display on DSP2.
- Insert the rack in the way that it doesn’t come into contact with the metal surface of the oven cavity in case any danger of electric arcing which may damage the oven.
- 9.4 Pizza function
- It is not necessary to pre-heat the browning plate to cook pizzas.
- Place the pizza directly on the browning plate.
- Place the browning plate on the centre of the glass turntable in the microwave oven.
- Warning: the cavity wall and the browning plate become very hot. Care should be taken to avoid touching heating elements, cavity wall or the browning plate. The usage of oven gloves is strongly recommended to avoid burns.
- 9.5 What kind of ovenware can be used?
- 9.6.1Microwave function
- For the microwave function, notice that glass, china, clay, plastic, and paper can be used as container. Metal pans, dishes or containers with metal parts or decorations cannot be used in the microwave. Glassware and clay with metallic decoration or c...
- The ideal material for microwave oven is glass, refractory china or clay, or heat resistant plastic. Very thin, fragile glass or china should only be used for short period of time (e.g. heating)
- Always wear oven gloves to take mature food.
- To test ovenware, put the item in the oven for 20 seconds at maximum microwave power, after 20 seconds, take the ovenware out immediately, it is suitable to use if it is cold or just slightly warm. However, it is not suitable for microwave oven if it ...
- 9.6 GrillING
- In the case of the grill function, the ovenware should be resistant to temperature of at least 300℃. Plastic dishes are not suitable for the grill function.
- 9.7 Combination functions
- In the combination functions (microwave + conventional heating elements), the ovenware used should be suitable for microwave and grill.
- 9.8 Aluminum containers and foil
- Pre-cooked food in aluminum containers or in aluminum foil can be put in the microwave if the following aspects are respected.
- ● Be noticed that manufacturer’s recommendations written on the external packing.
- ● The aluminum containers cannot be more than 3 cm high or come in contact with the cavity walls (minimum distance 3 cm). Any aluminum lid or top should be removed.
- ● The cooking time is longer because the microwaves only permeate into food from the top. If you have any doubts, it is best to use only dishes suitable for microwave use.
- ● Important: aluminum foil cannot come into contact with the cavity walls since this may cause electrical arcing.
- ● Lids
- We recommend you use glass or plastic lids or cling film:
- 1. In case of excessive evaporation (mainly during very long cooking times)
- 2. Cooking time is shorter
- 3. The aroma is preserved
- The lid should have holes or openings so that no pressure produces. Plastic bags should be opened. Baby feeding bottles or jars with baby food and similar containers can only be heated without tops/lids on otherwise they may burst.
- 10. CLEANING AND MAINTENANCE
- Before carrying out any operations, disconnect the appliance from the electricity supply. Take the plug out of the socket or switch of the oven’s power circuit.
- Warning! Never use a jet of steam for cleaning the inside of the oven.
- Warning! The microwave oven should be cleaned regularly, with all food remains being removed. The surface of microwave may deteriorate if it is not clean. That may reduce the oven’s working life and possibly result in a dangerous situation.
- 10.1. Cleaning stainless steel
- To keep stainless steel in a good condition, it should be cleaned regularly.
- 10.2 Daily cleaning routine
- When cleaning and caring for stainless steel surfaces, always use only specific products which do not contain abrasives or chlorine-based acids.
- Instructions for use: Pour the product onto a damp cloth and wipe over the surface, then rinse thoroughly and dry with a soft cloth or chamois leather.
- 10.3 Food stains or spills
- Never use metal scouring pads or sharp scrapers which may damage the surface of the oven.
- Use ordinary non-abrasive products with the aid of wooden or plastic utensils if necessary. Rinse thoroughly and dry with a soft cloth or chamois leather.
- 10.4 Cleaning the oven cavity
- Cleaning is the only maintenance normally required. Every time after cooking, clean the inner cavity with a damp cloth since this is an easier way to remove splashes or spots that may stick to the cavity.
- To remove dirt that is harder to shift, use a non-aggressive cleaning product. Do not use oven sprays or other aggressive or abrasive cleaning products.
- Always keep the door and the oven front very clean to ensure that the door opens and closes properly.
- Make sure water does not permeate into the microwave ventilation holes.
- Regularly take out the turntable plate and the respective support and clean the cavity base, especially after any liquid spillage.
- If the oven cavity is very dirty, put a glass of water on the turntable and switch on the microwave oven for 2 or 3 minutes at maximum power. The steam released will soften the dirt which can then be cleaned easily using a soft cloth. Unpleasant odors...
- 10.5 Cleaning the cavity ceiling
- If the oven ceiling is dirty, to avoid the danger of burning , wait until the grill is cold before lowering it.
- Do not use abrasive cleaning products or sharp objects.
- To avoid any risk, do not remove the mica cover.
- The glass lamp cover is located on the oven ceiling and can be removed easily for cleaning. For this you just need to unscrew it and clean it with water and dishwashing liquid.
- 10.6 Rinse of door seal and front panel
- Please rinse in time if there are residues left in door seal or on front panel. Do not use rough cleaning tools like hard brush, coarse cloth, wire netting, knife or any other sharp tools, using those sharp tools may scratch door seal or the surface o...
- 10.7 Cleaning the accessories
- Clean the accessories after each use. If they are very dirty, soak them first of all and then use a brush and sponge. The accessories can be washed in a dish washing machine.
- Make sure that the turntable plate and the respective support are always clean. Do not switch on the oven unless the turntable and the respective support are in place.
- 11. SPECIAL MAINTENANCE
- 12. INSTALLING THE APPLIANCE
- 12.1Before the installation
- Open the oven door and take out all the accessories and remove the packing material.
- Make sure that the oven is not damaged by any way. Check that the oven door closes correctly and the inside of the door and front oven panel are not damaged.
- 12.2 DO NOT USE THE OVEN
- If the power cable or the plug is damaged, if the oven does not function correctly or if it has been damaged or dropped. Put the oven on a flat and stable surface. The oven should not be installed close to any heat source, radios or televisions.
- During installation, make sure that the power cable does not come into contact with any moisture or objects with sharp edges and the back of the oven. High temperature can damage the cable. Warning: after the oven is installed you should make sure you...
- 12.3 Positioning the Microwave Oven
- If we put the Microwave Oven into cabinet, the material cabinet should be insulated, and the clearance between the edge of the cabinet and the Microwave Oven should be over 100 mm for ventilation.
- 13. TROUBLE SHOOTING
