Harman-Kardon AVR 3650 - Manual (Page 17)

17
Making Connections
AVR
Making Connections
CAUTION: Before making any connections to the audio/video receiver, ensure
that the AVR’s AC cord is unplugged from the receiver and the AC outlet.
Making connections with the receiver plugged in and turned on could damage
the speakers.

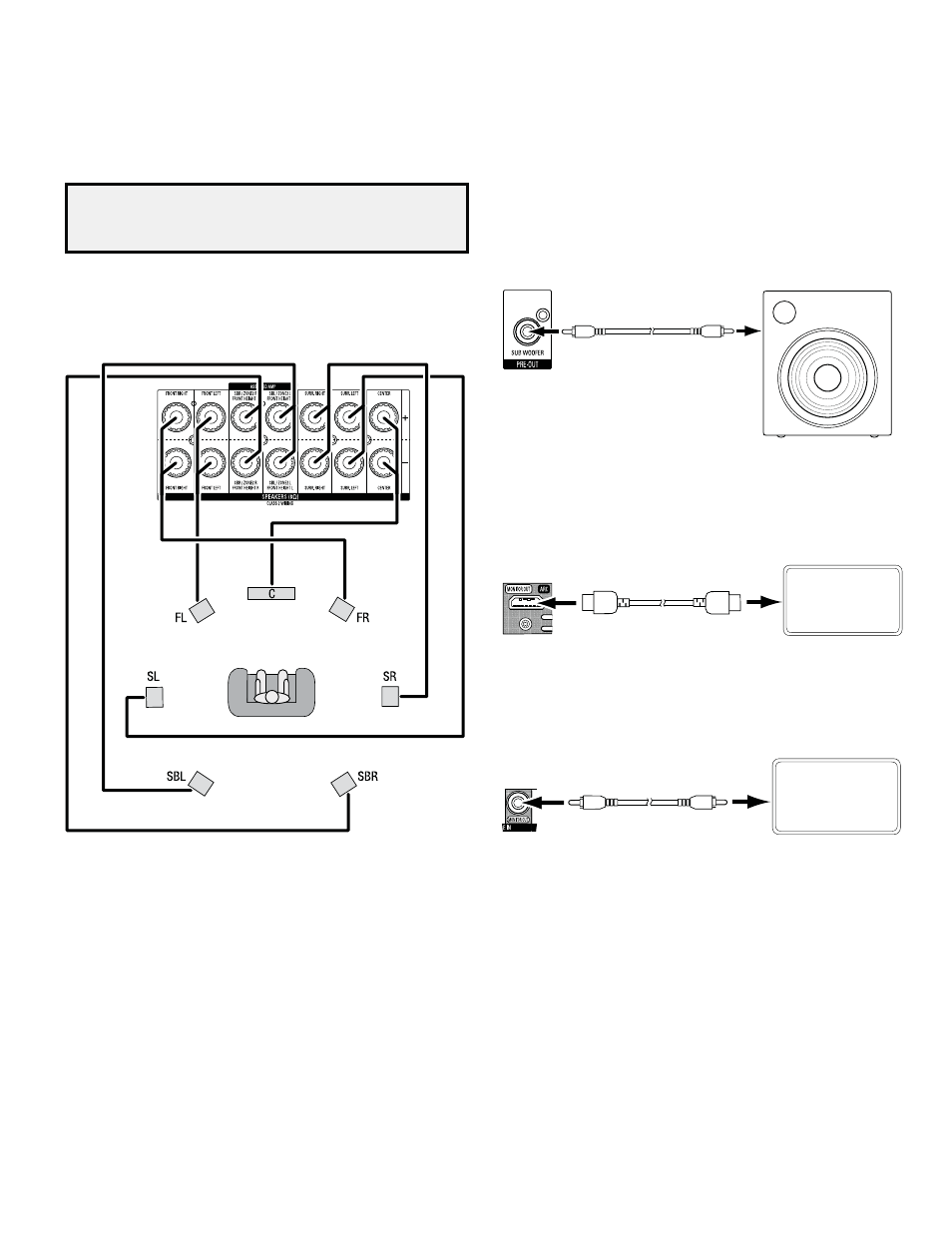

Connect Your Speakers
After you have placed your loudspeakers in the room as explained in Place Your Speakers,
on page 13, connect each speaker to its color-coded terminal on the AVR as explained
in Speaker Connections, on page 14. Connect the speakers as shown in the illustration.
NOTE: If you installed front height speakers, connect them as shown for the SBL and
SBR speakers.
Connect Your Subwoofer
Use a single RCA audio cable to connect the AVR’s Subwoofer connector to your
subwoofer as explained in Subwoofer Connections, on page 14. Consult your subwoofer’s
user manual for specific information about making connections to it.
AVR Subwoofer
Connector
Powered
Subwoofer
Single
RCA Audio Cable
(not supplied)
Single
RCA Audio Cable
(not supplied)
Powered
Subwoofer
AVR Subwoofer
Connector
Connect Your TV or Video Display
If your TV has an HDMI connector: Use an HDMI cable (not included) to connect it to the
AVR’s HDMI Monitor Out connector. You do not need to make any other connections to
your TV from the receiver or from any of your video source components.
HDMI Monitor Out
Connector
HDMI Cable
(not supplied)
TV
Receiver
HDMI Monitor Out
Connector
HDMI Cable
(not supplied)
If your TV does not have an HDMI connector: Use a composite video cable (not
included) to connect the AVR’s Composite Monitor Out connector to your TV’s composite
video connector.
Composite
Monitor Out
Connector
Composite Video Cable
(not supplied)
TV
Receiver
Composite
Monitor Out
Connector
Composite
Video Cable
(not supplied)
NOTE: The HDMI connection to your TV is preferred. If you use the composite video
connection to your TV, you will not be able to view the AVR’s on-screen menus.
