Heatilator • GDST4336I, GDFL4136I, GDCR4136I, GDCL4136I • 2129-900 Rev. F • 11/08
87
Standing Pilot Ignition
Valve Assembly

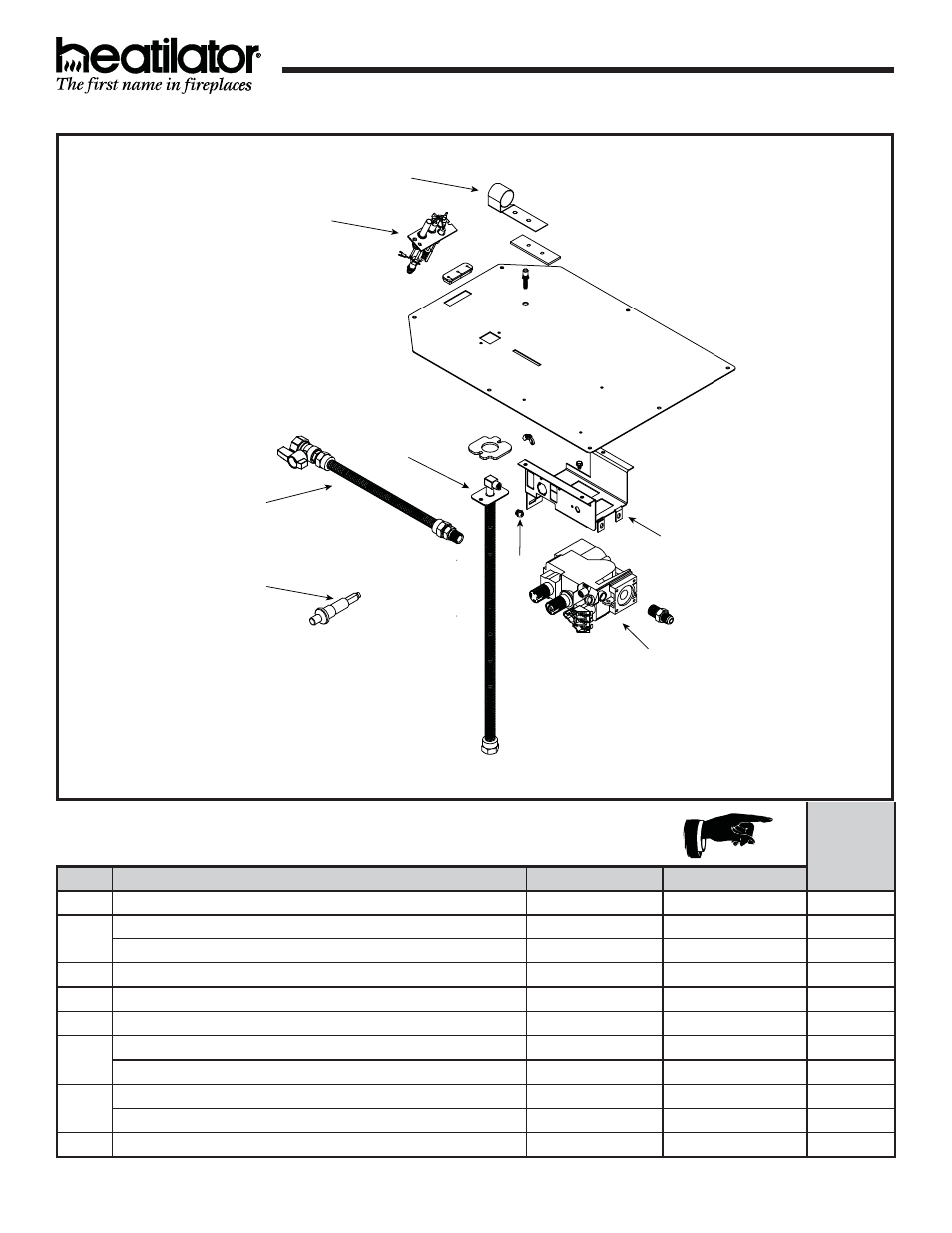

Valve Assembly Diagram/ Parts List
GDST4336, GDFL4136
Service Parts
Beginning Manufacturing Date: April 2008
Ending Manufacturing Date: ______
1
2
3
4
5
7
8
6
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM
DESCRIPTION
COMMENTS
PART NUMBER
1
Shutter Bracket Assembly
2118-121
Y
2
Pilot Assembly NG
2103-010
Y
Pilot Assembly LP
2103-011
Y
3
Flexible Gas Connector
530-302A
Y
4
Flex Ball Valve Assembly
302-320A
Y
5
Piezo Ignitor
291-513
Y
6
Orifi ce NG (#32C)
582-832
Y
Orifi ce LP (#50C)
582-850
Y
7
Valve NG
230-0710
Y
Valve LP
230-0720
Y
8
Valve Bracket
2118-104
