Heatilator • GDST4336I, GDFL4136I, GDCR4136I, GDCL4136I • 2129-900 Rev. F • 11/08 42
C. Securing and Leveling the Appliance
WARNING! Risk of Fire! Prevent contact with:
• Sagging or loose insulation
• Insulation backing or plastic
• Framing and other combustible materials
Block openings into the chase to prevent entry of blown-
in insulation. Make sure insulation and other materials
are secured.
DO NOT notch the framing around the appliance
standoffs.
Failure to maintain air space clearance may cause
overheating and fi re.
NOTICE: Failure to ensure that the fi replace opening
is square may result in the decorative front not fi tting
properly.

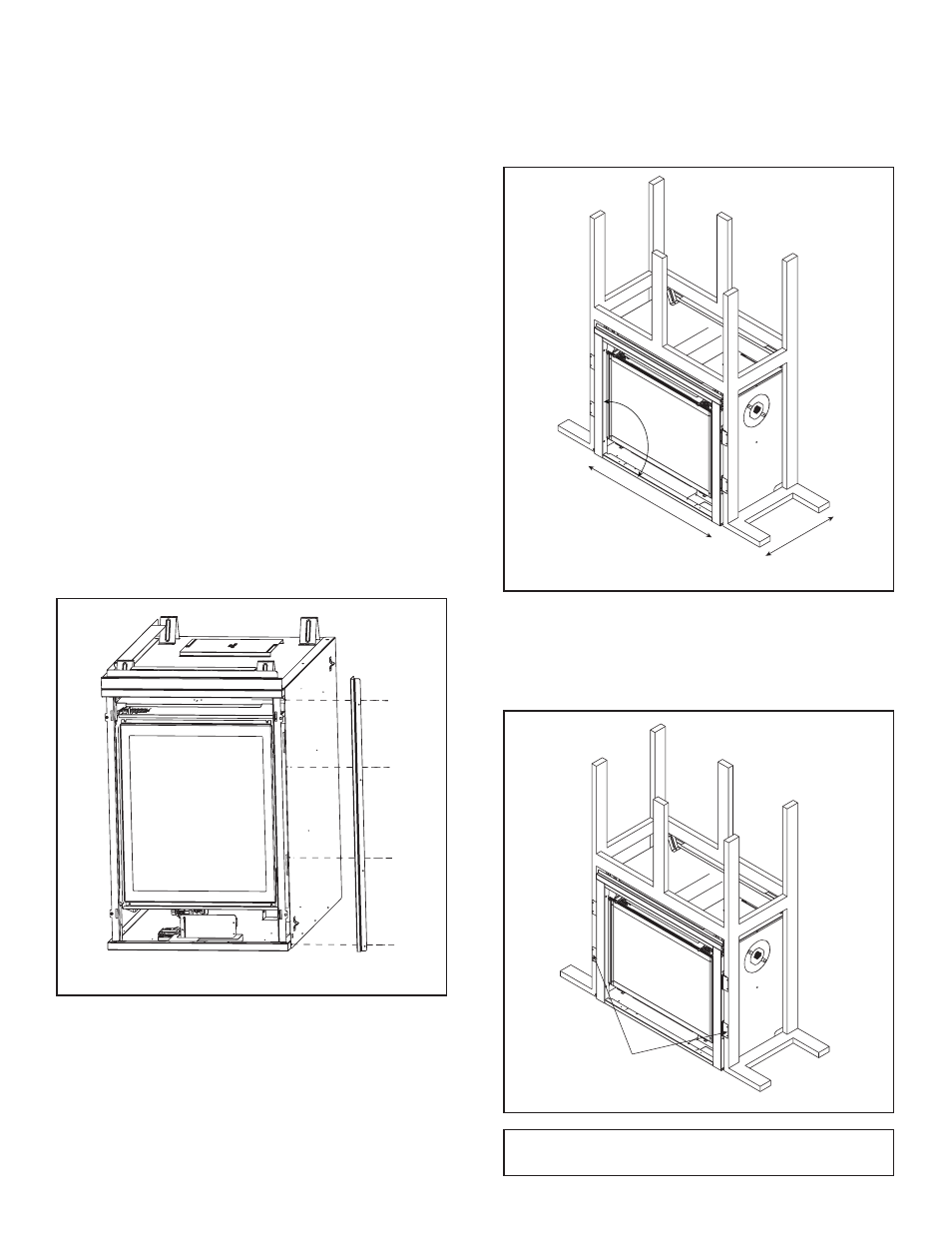

The diagram shows how to properly position, level, and
secure the appliance (see Figure 9.9). Nailing tabs are pro-
vided to secure the appliance to the framing members.
1. Venting - refer to Vent Clearances and Framing (Section
8) for hole location.
2. When installing a GDCL4136I or GDCR4136I fi replace
remove the nailing tab located on the side of the unit
and reattach it to the front corner of the unit as shown
in Figure 9.8 (GDCR4136I).
Figure 9.10 Securing An Appliance
NAILING TABS
Note: Once appliance is setup for top or rear venting, it
CANNOT be changed at a later time.
Figure 9.9 Proper Positioning and Leveling of an Appliance
90º
SID
E T
O SIDE
FRONT T
O BACK
3. Place the appliance into position, making sure to
maintain proper clearance to combustibles.
4. Level the appliance from side to side and front to back. It
is acceptable to use wood shims under the appliance.
5. Fasten the appliance to the fl oor using the pilot holes
located at the bottom of the appliance.
Figure 9.8 Attach Nailing Tab to Front Corner of Unit
6. Bend out nailing tabs on each side making sure to keep
the nailing tabs fl ush with the framing.
7. Using a framing square, make sure that the sides of
the appliance are square to the bottom as shown in
Figure 9.9.
8. Secure the appliance to the framing by using nails
or screws through the nailing tabs. It is acceptable to
use plumber strap to secure the unit to the framing if
necessary. See Figure 9.10. Be sure to maintain all
clearances to combustible material.
