Heatilator • GDST4336I, GDFL4136I, GDCR4136I, GDCL4136I • 2129-900 Rev. F • 11/08 70

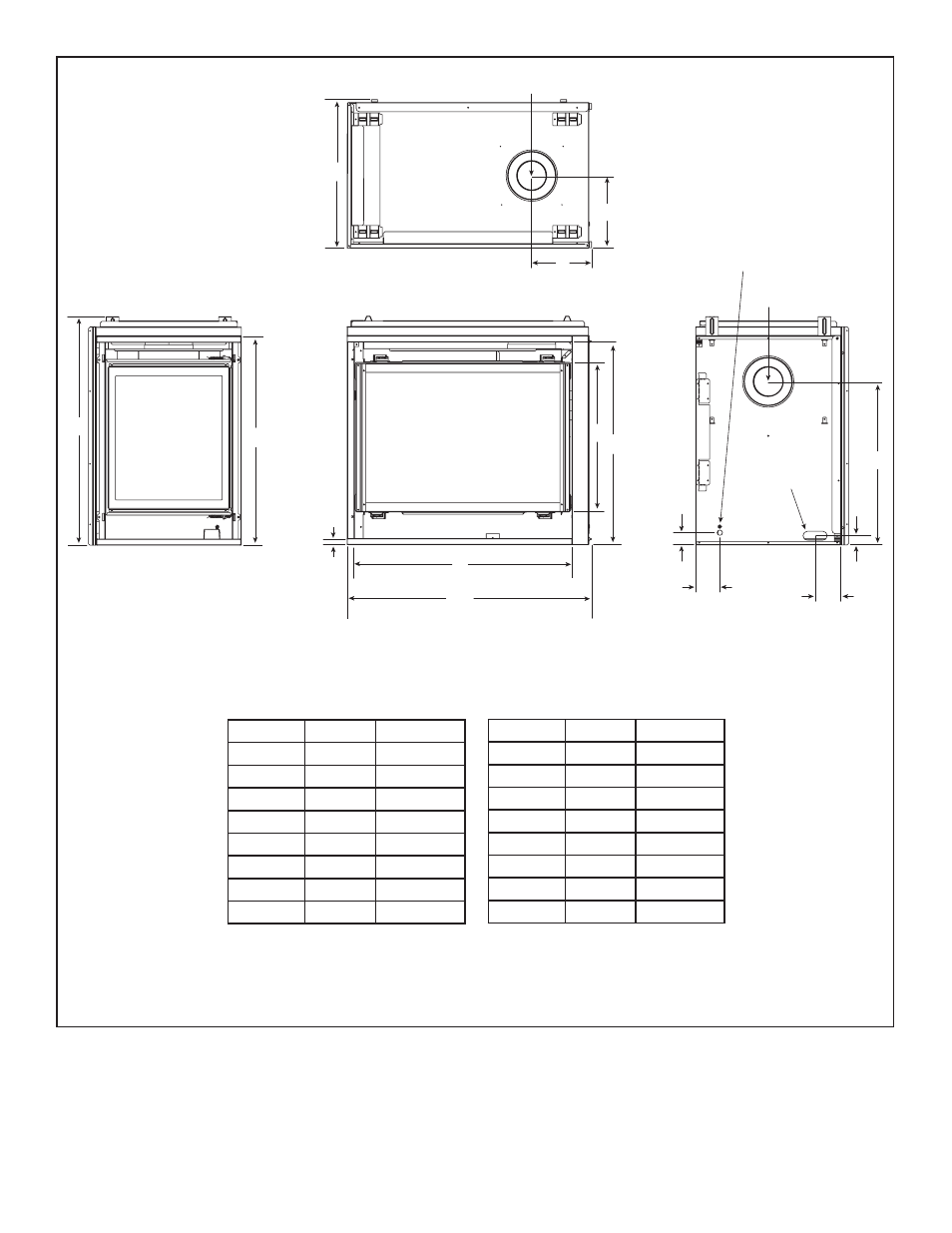

Figure 16.3 GDCR4136I, GDCL4136I Dimensions
B
C
FRONT VIEW RIGHT VIEW
ELECTRICAL
ACCESS
GAS LINE
ACCESS
LEFT VIEW
A
J
Ø K
L
Ø K
D
F
G
H
M
P
N
i
O
E
Location Inches Millimeters
I 1-1/2 38
J 27 686
K 8 203
L 12 305
M 9-1/2 241
N 24-1/2 622
O 38 965
P 34-5/8 880
Location Inches Millimeters
A 36 914
B 40-1/2 1029
C 24-1/2 622
D 33-1/2 851
E 1 25
F 2-1/8 54
G 4-1/8 105
H 4-1/4 108
