Connecting to AV Devices
Connect external devices such as a VCR, VCD or DVD player, or
video game to the TV using the 4-IN-1 cable.
Connecting to a VCR/VCD/DVD Player

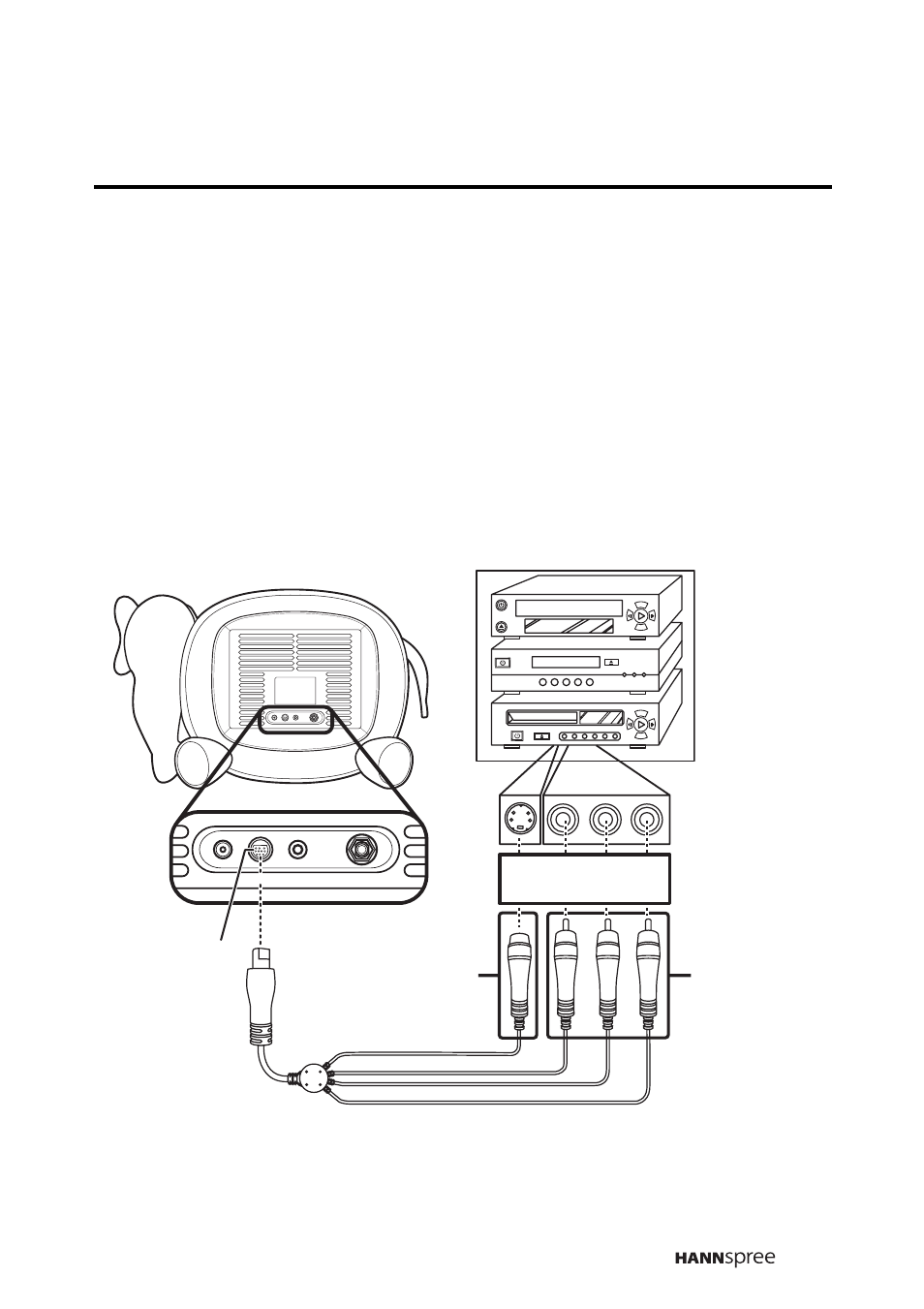

The illustration presented here shows how to connect the TV to a
VCR, VCD, or DVD player. Actual connections may vary according to
the make and model of the device. Refer to the user’s manual
included with the device for more detailed instructions.
Note
The cables are color-coded (black, red, white, yellow). Connect each color-
coded cable to the appropriate connector on your device.
4-IN-1 cable
DC 12V HEADPHONE ANT 4-IN-1
DC 12V HEADPHONE ANT 4-IN-1
B R W Y
VCR
DVD
VCD
S-Video
connector
AV
4-IN-1 cable
4-IN-1 jack
connectors
