HP ProLiant ML370 G6 (Tower)

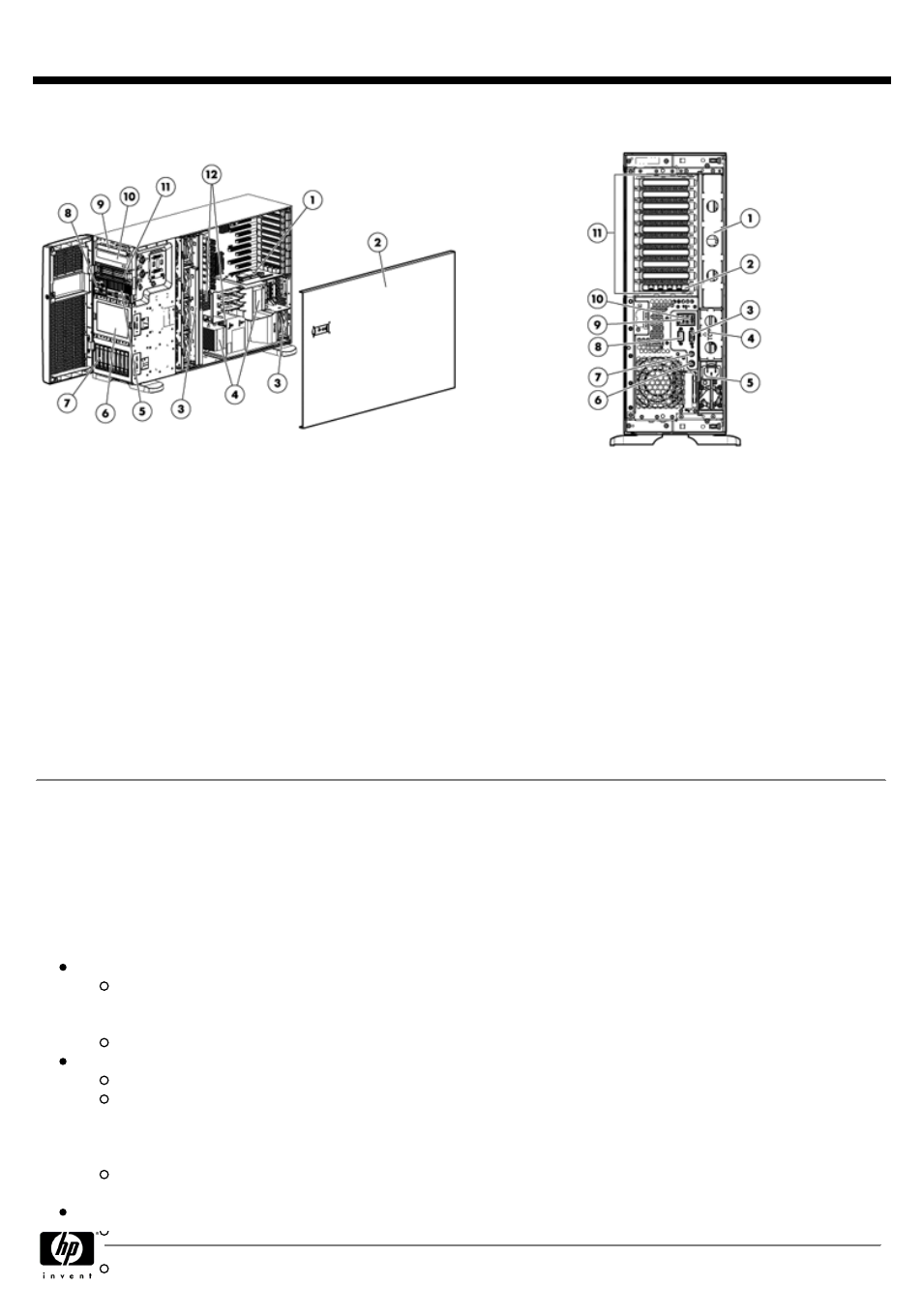

Front View: Rear View:
1. 9 Available PCI-Express Gen2 slots; PCI-X (optional) 1. PCI-X Expansion slot riser bay
2. Quick removal access panel 2. Four NIC connectors
3. Three Hot-plug fans (standard) Five (optional) 3. Video connector
4. Intel Six or Quad-Core Processor (Performance model
includes two processors) 4. Power supply bay 2
5. Power on/standby button 5. Power supply bay 1 (populated)
6. Optional drive cage bay 6. Mouse connector
7. SAS/SATA drive cage 7. Keyboard connector
8. System Insight Display 8. Serial connector
9. Optional slimline optical drive bay 9. iLO 2 connector
10. DVD-ROM drive 10. Two USB connectors
11. Removal media bay 11. 9 Available PCI-Express Gen2 expansion slots; PCI-X
(optional)
12. Eighteen slots for DDR3 Registered or Unbuffered
Memory
At A Glance
The next generation of the HP ProLiant ML370 (expandable tower chassis) and the new HP ProLiant DL370 (4U rack
optimized chassis) deliver Industry-leading management tools, leading performance, expandability, flexibility and the latest
energy efficient technologies. These servers are well-suited for deployment in growing businesses, remote office sites, or
datacenters and have been designed to bring you (our customer) the utmost confidence to run your business.
Features included in both the HP ProLiant ML370 G6 and the HP ProLiant DL370 G6:
Processors:
Up to two (2) Intel® Xeon® 5500 series processors series with Intel Turbo Boost technology which now allows
customized adaptability for optimizing both power consumption and performance based on your respective
requirements
Intel® 5520 chipset
Memory:
Total of 18 DIMM slots
Up to 192GB (16GB kits populating12 DIMM slots), using PC3-8500R DDR3 Registered (RDIMM) memory,
operating at 800MHz when fully populated at 2 DIMMs per Channel in 12 slots
NOTE: If only one processor is installed, only half the DIMM slots are available.
NOTE: when populating with the 16GB Memory Kits (Quad-Rank), only 12 DIMMs can be populated.
Up to 24GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1066MHz when fully
populated at 2 DIMMs per Channel in 12 slots
Storage Controller:
