10
ENGLISH
INSTALLATION INSTRUCTIONS (continued)
Connecting to the PC
Read Usage Notes ( to ) carefully to ensure maximum safety before proceeding to
these steps:
(1) Make sure that the display signals produced by your PC meet the specifications of this
product.
For the specifications of this product, see Product Specifications ( to ).
(2) Choose an appropriate site and install the product on a level table where the stand is secure.
Install the monitor to have ready access to a power socket.
(3) Make sure that the monitor’s power switch is off.
The monitor is shipped with the power switch off.
(4) Make sure that your PC’s power switch is off.
(5) Interconnect the signal input terminal (RGB1) on the monitor rear panel and the display
signal output terminal of the PC to each other using the signal cable included.
Optional cables are needed to connect to the RGB2 input and audio input terminals.
If the signal cable included does not match your PC, consult your dealer after reading the section
“Signal Input”.
(6) Insert one end of the power cable included into the rear-panel power cable connector and
the other end into a power socket.
If a power adapter is used, ground the grounding wire to avoid electrical shocks and radio
interference. (Complete grounding before connecting the power plug to a power supply. Before
disconnecting the grounding wire, be sure to disconnect the power plug from the power supply
first.)
(7) Turn on the monitor, then the PC to make sure that a display image appears on the monitor
screen.
For instructions on turning on the monitor and adjusting its display images, see “Operating
Instructions”
( to ).
28 30
13 21

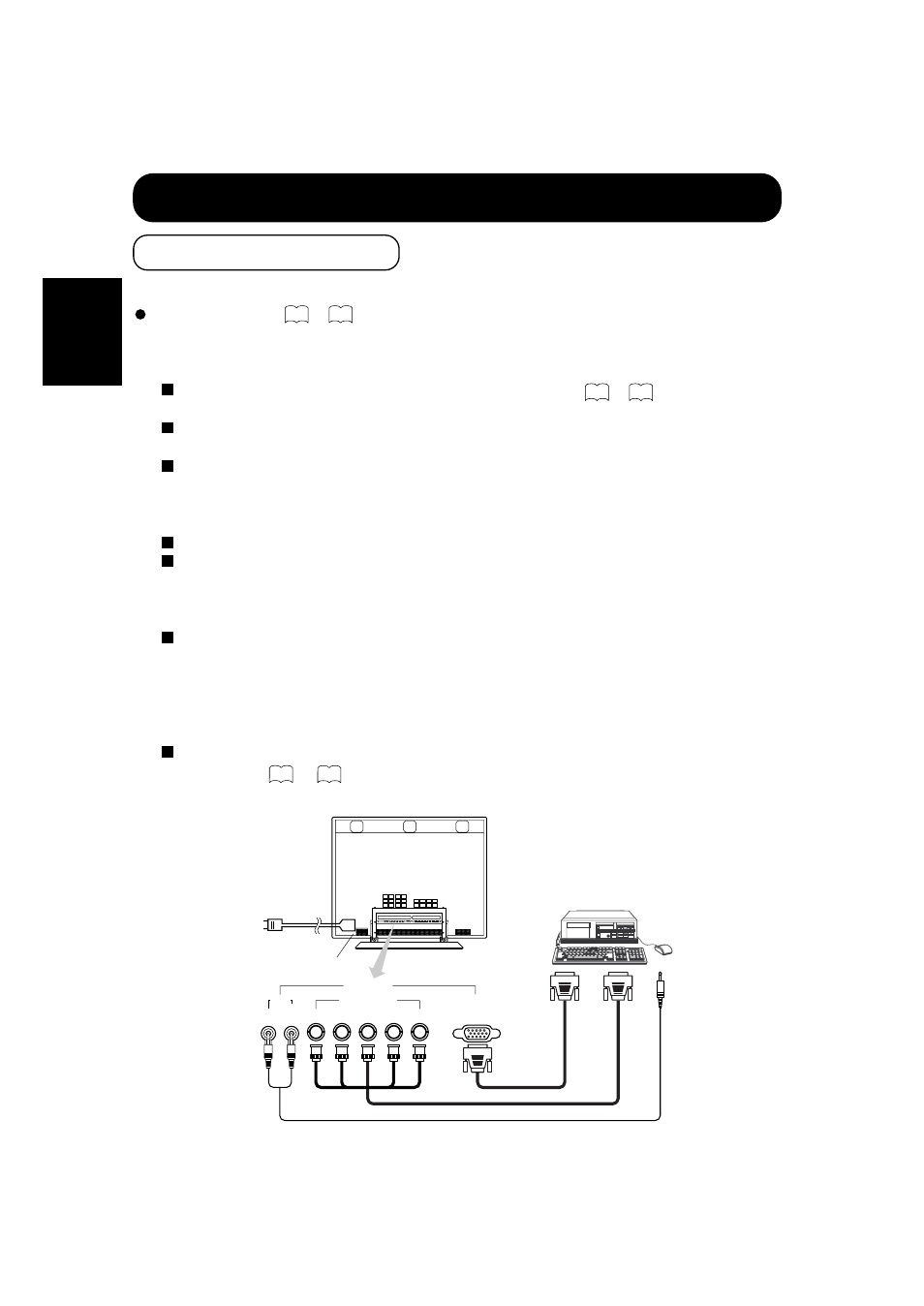

Monitor rear panel
Power cable
Power cable
connector
PC
T
o
signal input
ter
minals
T
o
audio input
ter
minals
T
o
signal input
ter
minals
T
o
audio output
ter
minal T
o
signal output
ter
minal T
o
signal output
ter
minal
RGB INPUT
R L
(MONO)
V H B G R
AUDIO
[ D-SUB ]
[ BNC ] RGB2 RGB1
Installation and Cabling
3 6
