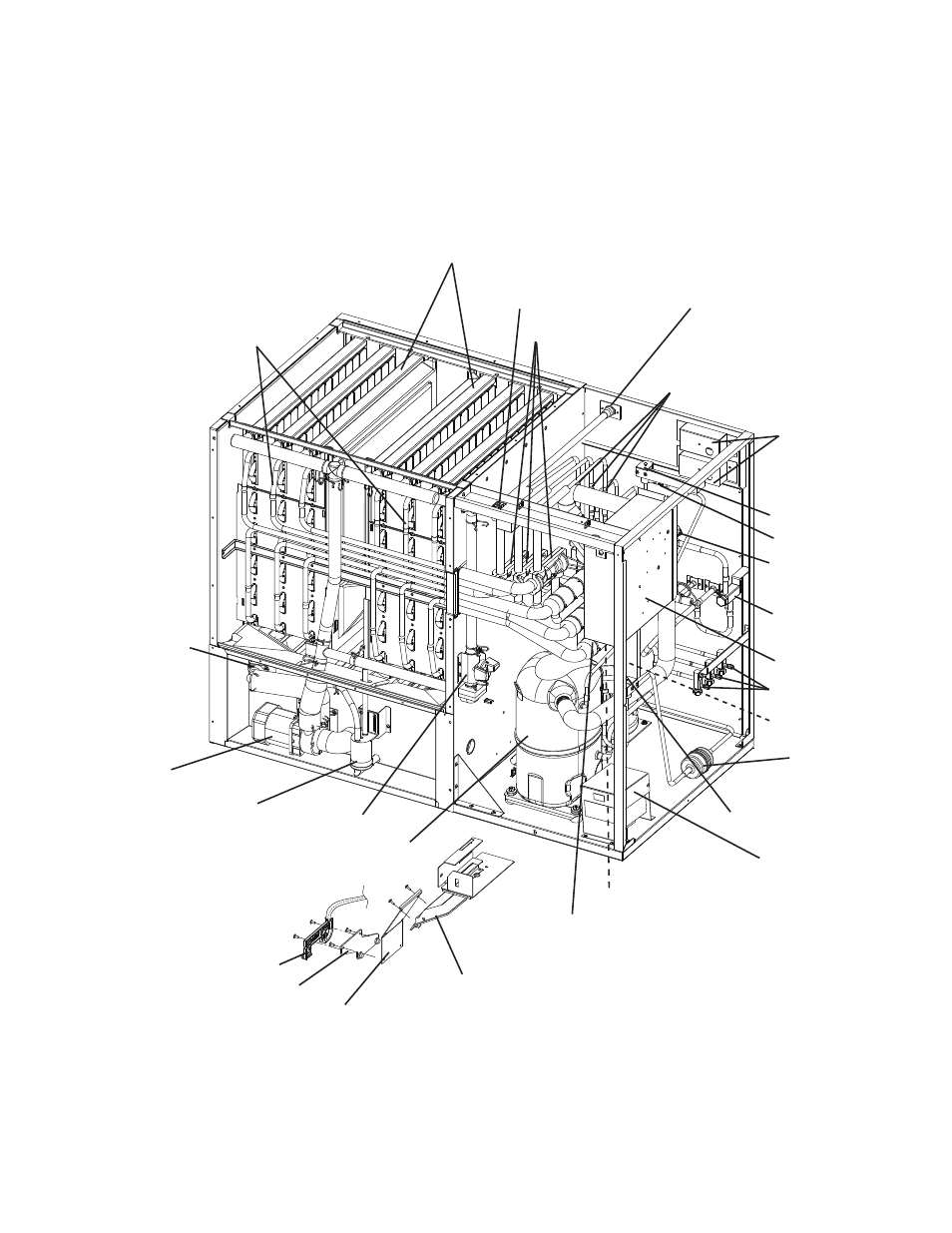

2. KM-2500SRH3 (remote air-cooled)
Evaporator Assembly
Spray Tubes
Inlet Water Valve Water Supply Inlet
Hot Gas Valve
Junction Boxes
Receiver Tank
Service Valves
Control Box
Liquid Line Valve
Drier
Main Transformer
Box
Control Switch
Bin Control Thermostat
Compressor
Cleaning Valve
Float Switch
Water Pump
Check Valve
(water)
Expansion Valves
Strainer
Shut-Off Valve
(Factory Use Only)
Headmaster
(C.P.R.)
Check Valves
(Refrigeration Circuit)
Bin Control Thermostat Bracket
Bin Control Bulb Holder
Bin Control "Z" Bracket
Bin Control Extension Bracket
