III. Technical Information

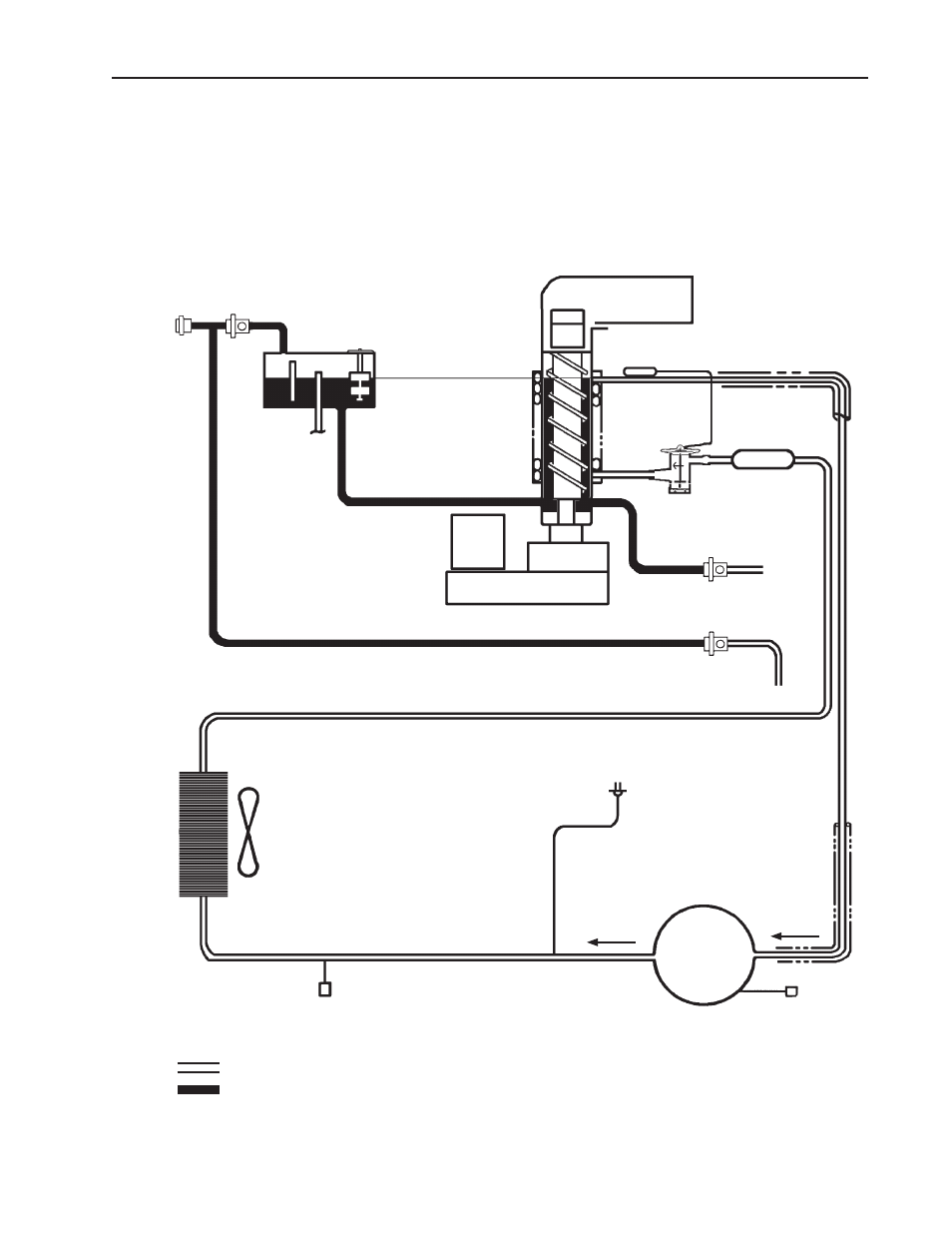

A. Water Circuit and Refrigeration Circuit
1. DCM-750BAH(-OS)
Inlet Water Valve
Dispensing Water Valve
Drain Valve
Float Switch
Water Level
To Drain
Evaporator
Spout
Expansion Valve
Gear Motor
Overflow
Reservoir
Water Supply
Drier
Air-Cooled Condenser
Fan
High Pressure Switch
Access Valve Access Valve
Compressor
Refrigeration Circuit
Water Circuit
