Page 25

5

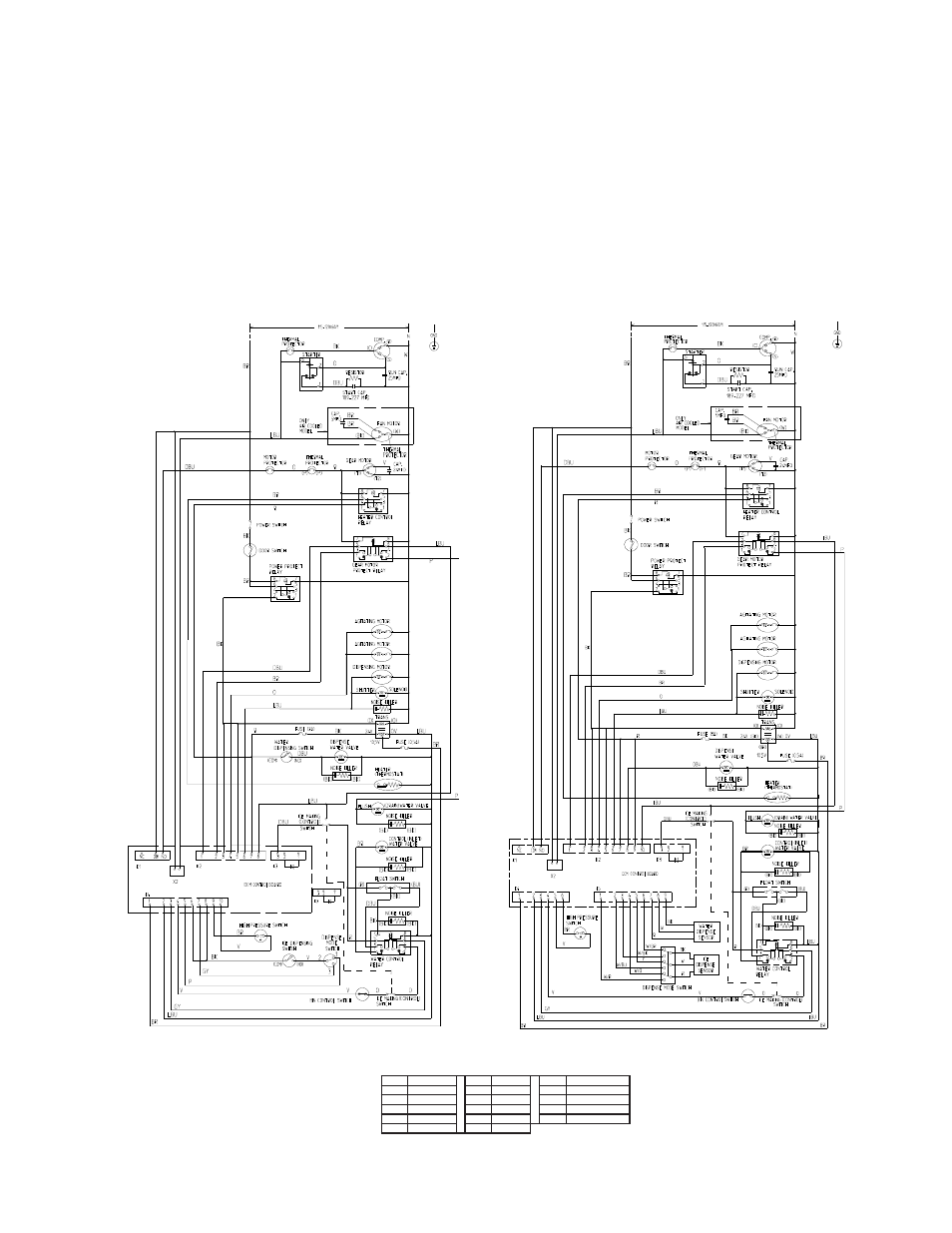

C. Sequence of Electrical Circuit – Ice Making
1. Fill Cycle
With the power switch in the "ON" position and the control switch in the "ICE" position,
the inlet water valve energizes and the reservoir fills with water until the upper float
switch closes.
DCM-750BAH-OS,
DCM-750BWH-OS
DCM-750BAH,
DCM-750BWH
BK
BLACK
O
ORANGE
W/BK WHITE/BLACK
BR
BROWN
P
PINK
W/BR WHITE/BROWN
BU
BLUE
R
RED
W/BU WHITE/BLUE
DBU DARK BLUE
V
VIOLET
W/O WHITE/ORANGE
GY
GRAY
W
WHITE
W/R WHITE/RED
LBU LIGHT BLUE
Y
YELLOW
WIRE COLOR CODE
