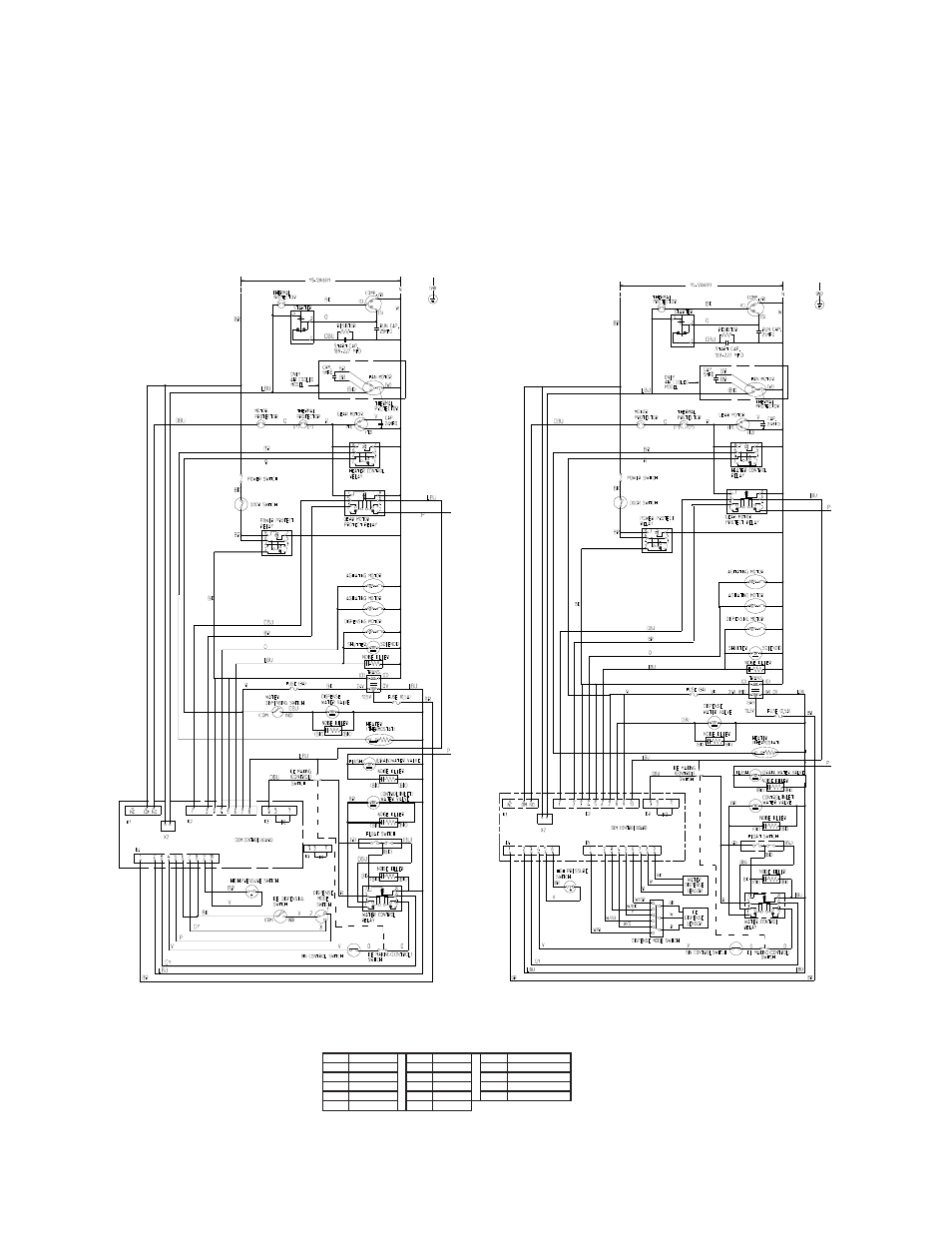

6. Low Water Safety
Upper float switch fails to close within 90 seconds after the lower float switch opens, the
50 second shutdown sequence begins. The inlet water valve remains open until the
upper float switch closes.
BK
BLACK
O
ORANGE
W/BK WHITE/BLACK
BR
BROWN
P
PINK
W/BR WHITE/BROWN
BU
BLUE
R
RED
W/BU WHITE/BLUE
DBU DARK BLUE
V
VIOLET
W/O WHITE/ORANGE
GY
GRAY
W
WHITE
W/R WHITE/RED
LBU LIGHT BLUE
Y
YELLOW
WIRE COLOR CODE
DCM-750BAH-OS,
DCM-750BWH-OS
DCM-750BAH,
DCM-750BWH
