4. 12 Hour Drain Cycle / Drain Switch
hour timer initiates cycle or the control switch is moved to the "DRAIN" position.
90 seconds after initiation, the compressor and condenser fan motor stop, 60 seconds
later the gear motor stops. Once the gear motor protect relay de-energizes, the drain
water valve opens. In the hour drain cycle, the drain water valve remains open for
0 minutes. When the drain cycle is initiated manually using the control switch, the drain
valve remains open until the control switch is moved to the "ICE" position.
BK
BLACK
O
ORANGE
W/BK WHITE/BLACK
BR
BROWN
P
PINK
W/BR WHITE/BROWN
BU
BLUE
R
RED
W/BU WHITE/BLUE
DBU DARK BLUE
V
VIOLET
W/O WHITE/ORANGE
GY
GRAY
W
WHITE
W/R WHITE/RED
LBU LIGHT BLUE
Y
YELLOW
WIRE COLOR CODE
DCM-750BAH-OS,
DCM-750BWH-OS
DCM-750BAH,
DCM-750BWH

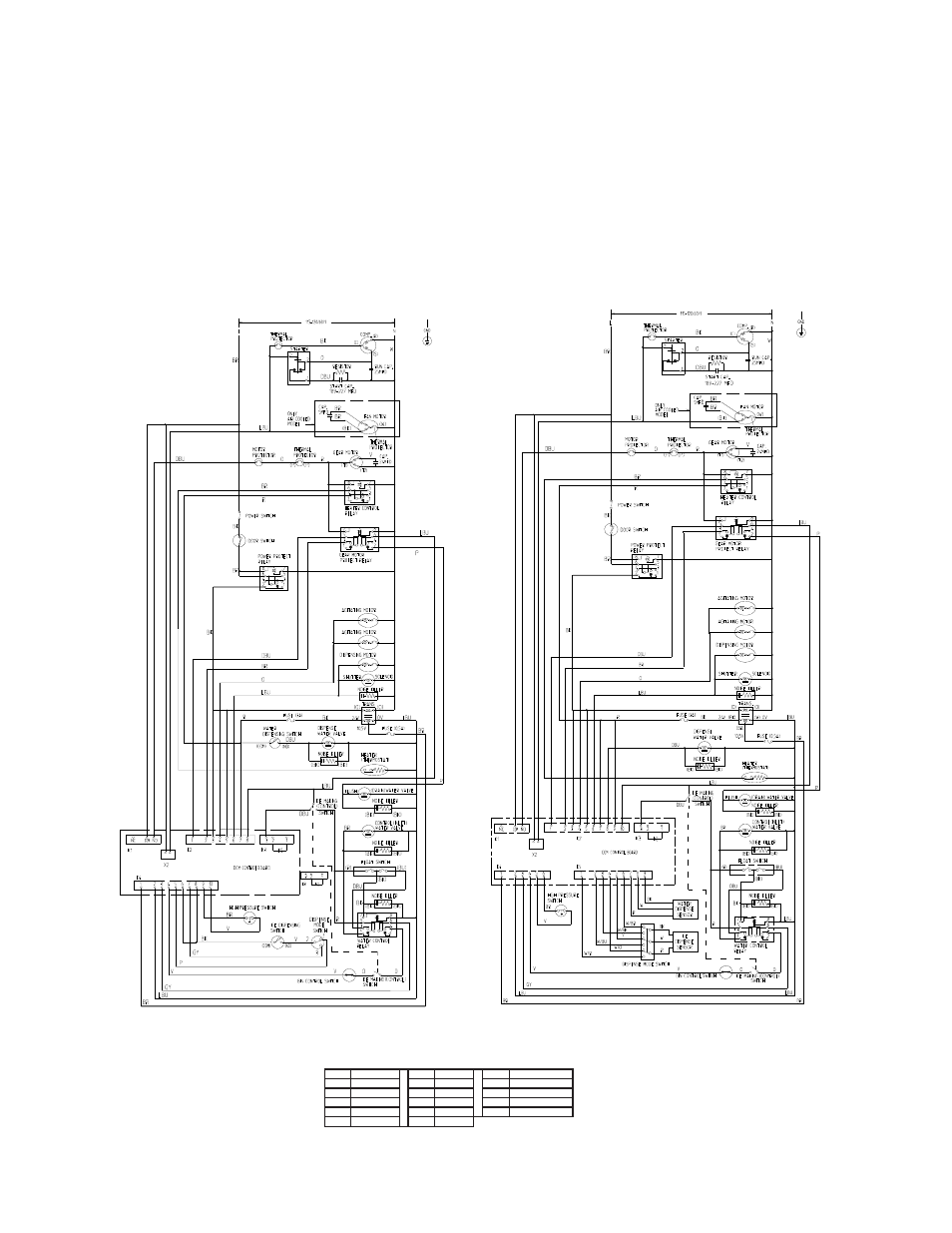

Hour Drain Cycle
Manual Drain Cycle
Hour Drain Cycle
Manual Drain Cycle
