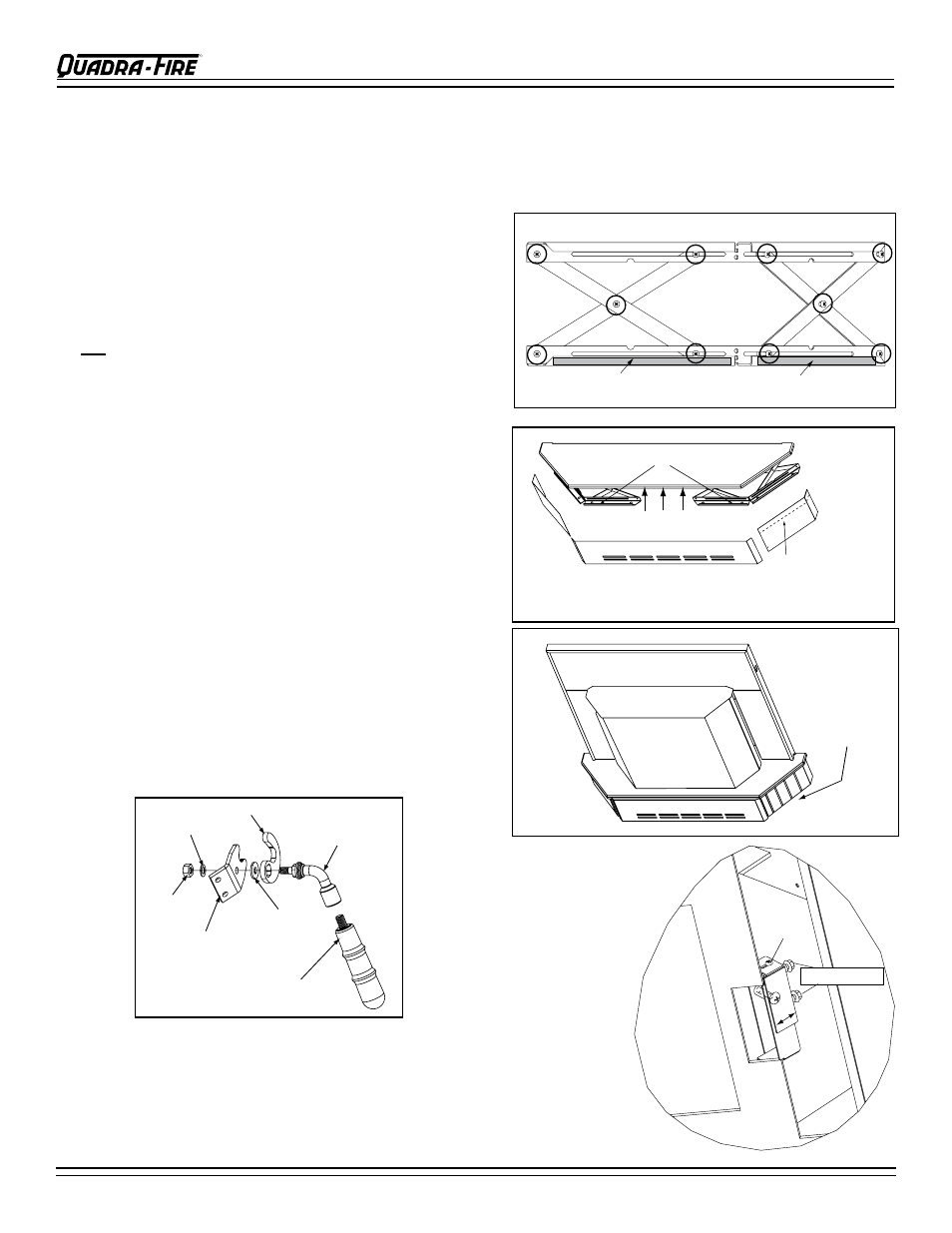

4100-I ACT WOOD INSERT

Page 16

September 1, 2008

R

250-7201E

ZERO ClEARANCE ADJUSTABlE TRiM SUPPORT

Two sizes: 9”d x 45”w and 12”d x 50”w, both 2” to10” Height Adjustment

Included in Kit: (

1) Trim Top, (1) Trim Front, (2) Trim Sides, Double-Sided Tape (already installed)

Tools Needed:

Phillips Head Screwdriver, Sheet Metal Shears, Measuring Tape, Gloves

1. The 10 screws on each set of scissors will already be loose

when shipped.

Figure 16A.

2. Expand scissors to desired height. Tighten screws to hold in

place using Phillips Head screwdriver.

Figure 16B.

. Measure front and side trims to required height to cover scis-

sors and mark pieces for cutting. Cut excess material from

top of trim’s edge, not bottom. This edge will be sharp; wear

gloves to prevent injury to your hands.

Figure 16B.

4. Using sheet metal shears, cut trim along the marked edge.

The cut edge fits under lip of top trim, so it allows for some

variance in your straight edge.

5. The double-sided tape that holds front and side trims to scis-

sors has a powerful bonding adhesive. Adjustments are

extremely difficult once trim has adhered to tape. Do a dry

run first without removing paper from tape.

6. Place cut edge of trim under top lip and into position on scis-

sors. Place side pieces on first and then front piece. The

front piece overlaps side pieces. NOTE: The trim in the Flush

Mount Kit is one piece.

7. Once you are satisfied with the positioning, remove trim and

set aside.

8. Remove the paper from double-sided tape that is to accept

trim side. Align side and then press hard against tape to

secure side piece. Repeat for other side. Install front trim

piece last.

NOTE: /8” (9.5mm) thick tile or like material can be cut to size and

fit under lip of top trim edge for a decorative touch.

Figure 16C.

DOUBLE-SIDED TAPE

DOUBLE-SIDED TAPE

SCREWS ARE CIRCLED

EXPLODED VIEW OF SCISSORS

Figure 16A

Figure 16B

DOOR HANDLE ASSEMBLY

Figure 16C

Decorative tile

may be installed

INSTALL FRONT TRIM LAST.

CORNERS OVERLAp SIDE

TRIM pIECES

EXpAND SCISSORS TO DESIRED HEIGHT

CUT TOp EDGE OF TRIM,

NOT BOTTOM EDGE

Figure 16D

DOOR lATCH ADJUSTMENT

Adjustment Bolts

Securing

Screw

I

t is important the door gasket has a proper seal. As the gasket compresses or

“seats” during use, it may become necessary to adjust or tighten the door latch.
1. Loosen securing screw (do not remove).
2. Turn adjustment bolts as need for adjustment (in or out) using 7/16” end

wrench.

. Tighten securing screw to hold adjusted position in place.

Figure 16E

Nut 1/4-20

Washer

Door Latch Bracket

Washer, 5/8 x 1/4

Hook Door Latch

Door Handle

Fiber Handle
