Operation
22 309293J

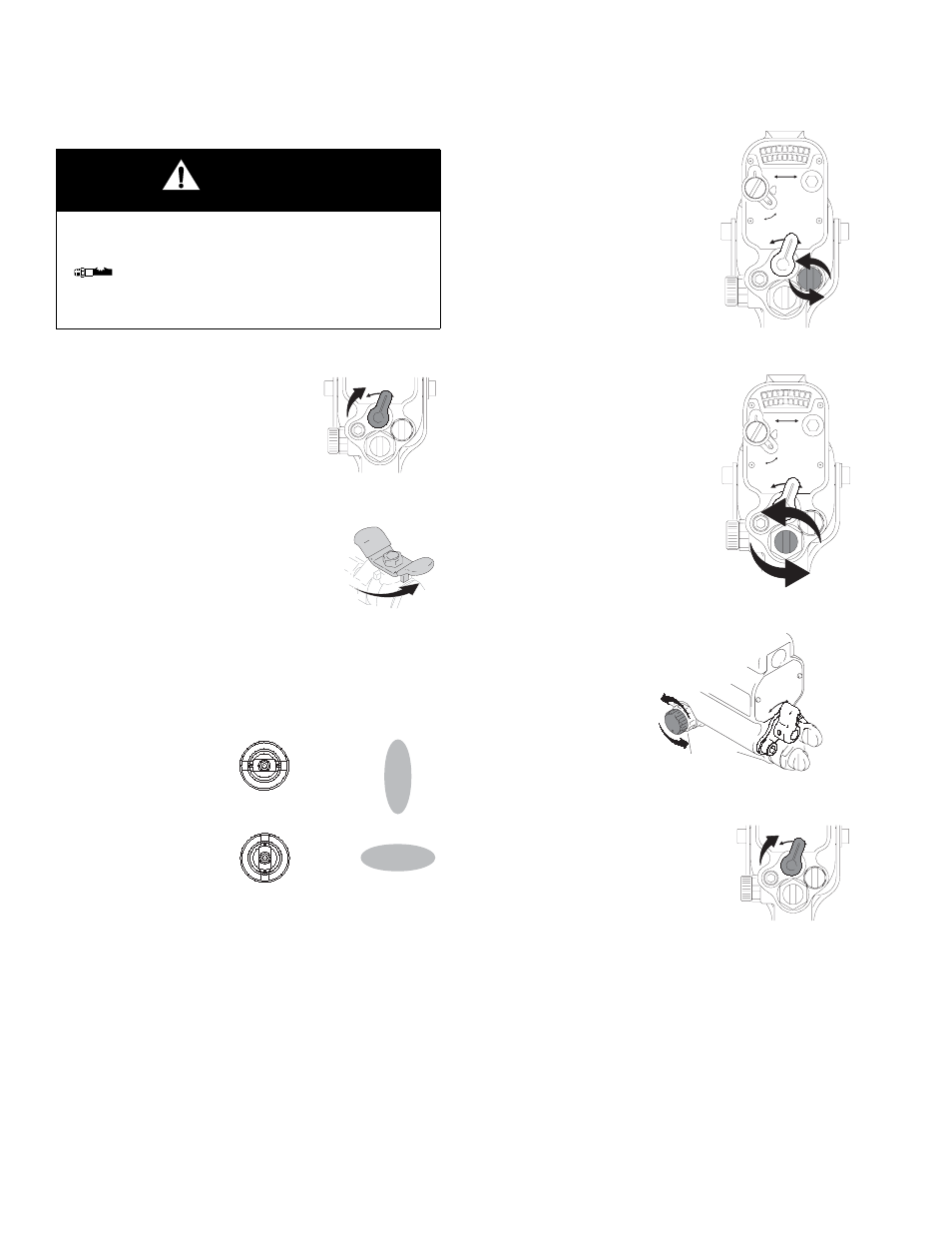

1. Make sure the ES ON/OFF valve is OFF.
2. Turn on the main air supply valve (B).
3. Position the air cap by loosening the air cap retain-
ing ring, and rotating the air cap for a vertical or hor-
izontal spray pattern. Tighten the retaining ring until
the air cap is held firmly in place; you should not be
able to rotate the air cap horns by hand.
4. Fully open the fan air adjustment valve.
5. Fully open the fluid adjustment valve.
6. Fully open the atomizing air restrictor valve.
7. Make sure the ES ON/OFF valve is OFF.
WARNING
Pressurized Equipment Hazard
To reduce the risk of an injury, follow the
Pressure Relief Procedure on page 20
whenever you are instructed to relieve the
pressure.
I O ES
ti1273a
Vertical Pattern
Horizontal Pattern
ti1269a
100 % KV
μα
0
HI
LO ES
I O ES
ti1267a
100 % KV
μα
0
HI
LO ES
I O ES
ti1272a
I O ES
ti1273a
