KK-K9-C15-K-INST-5-03 3
INSTALL DOOR PANELS AND WINDOW GAURDS:
• Install aluminum door panels with hardware provided
• Install hinge and window guard on top of door panel with hardware provided
• Lift window guard to installed position and mark mounting holes
• Install top mounting bracket with #10 x ½ “ screws, making sure that holes in window guards
align with holes in mounting bracket.
Note: It will be necessary to bend the window guards to fit the contour of the vehicle door.
•
Install window guard into mounting bracket with 10/32 x ½” machine screws & flat washers.
•
Remove protective plastic from door panel and window guard.
INSTALL MOUNTING LEGS:
• Attach mounting legs to hold down plates.
• Attach hold down plates to floor of vehicle
utilizing front seat mounting studs
K9 MAIN HOUSING:
Note: Install side walls to floor using #12 X 3/4” stainless
screws until roof is in place. Keep all bolts loose until entire
unit is mounted
• Install floor of K9 kit into vehicle
• Floor should be placed on top of mounting legs
and centered.
• Install left side wall of K9 unit and attach with
¼-20 x ½” carriage bolts & #12 x ¾” stainless
screws.
• Install right side wall of K9 unit and attach with ¼-20 x ½” carriage bolts.

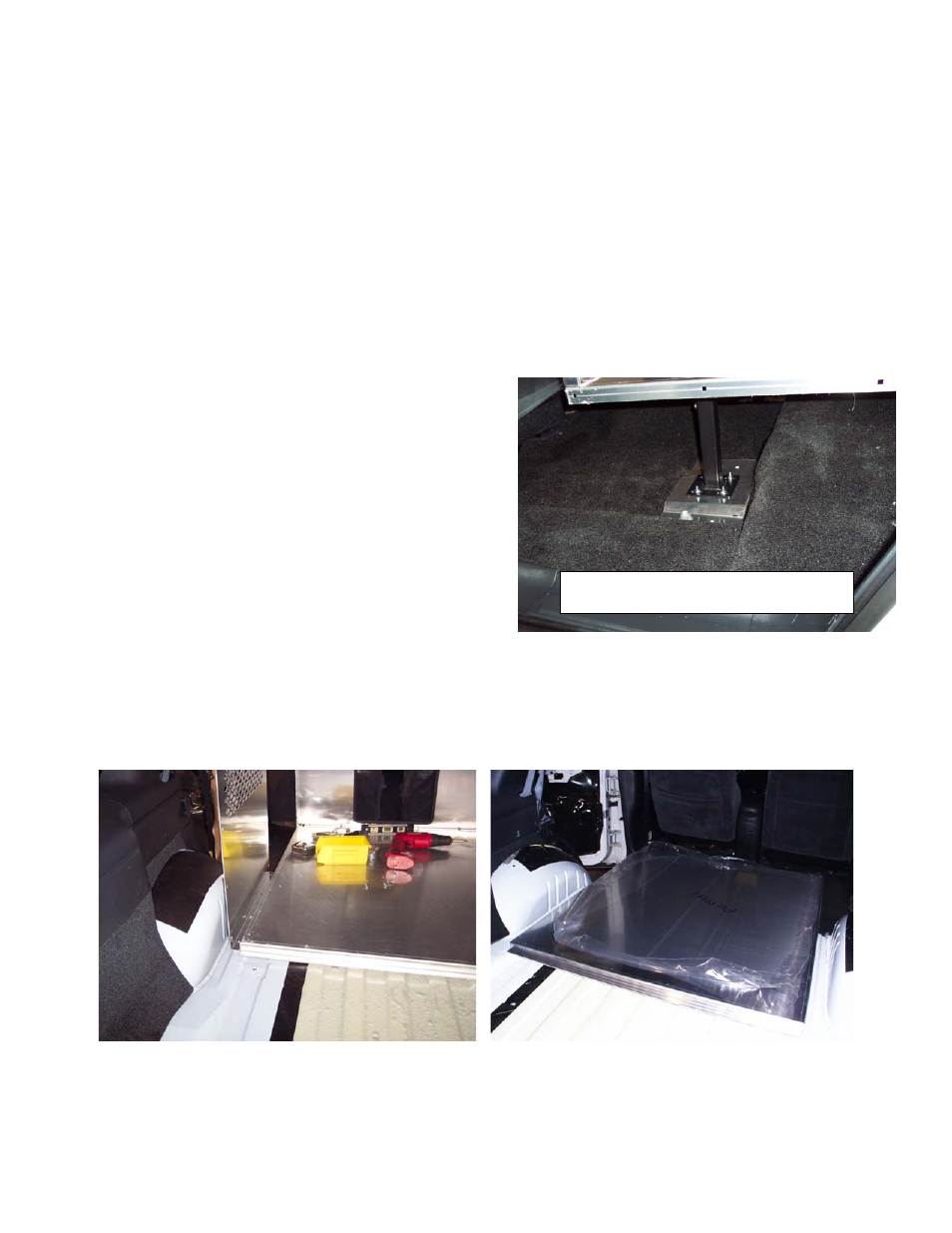

Driver side mounting leg and plate
