Auto Channel Setup

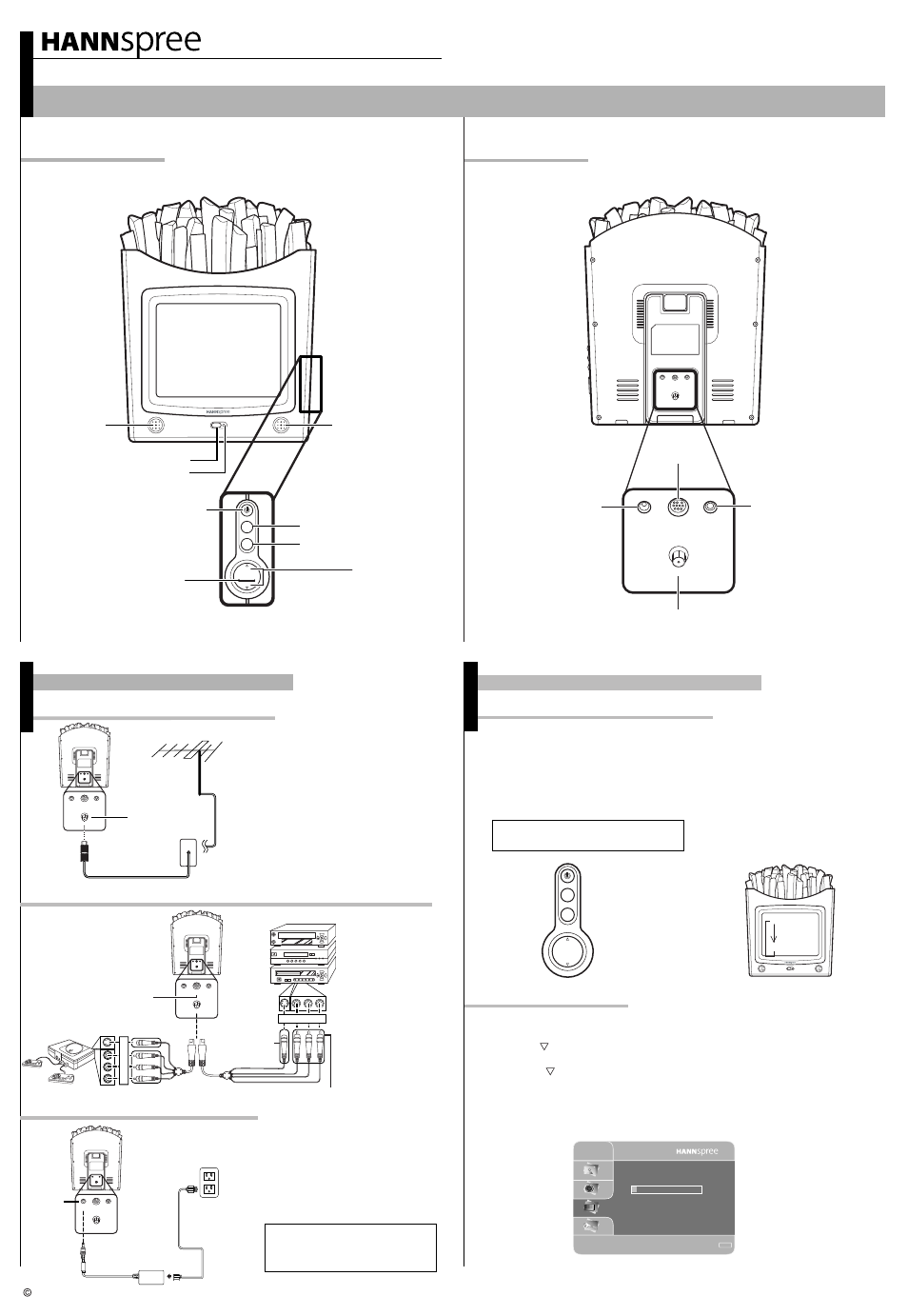

Quick Start Guide

Front View

Front View

Rear View

Rear View

Copyright 2005, Hannspree, Inc. All rights reserved.

Making Connections

Connecting to a VCR, VCD, DVD Player, or Video Game Console

Connecting the Power Adapter

1. The illustration presented
here shows you how to
connect your TV to a
VCR, VCD, DVD player
or video game console.

Connecting to Antenna/Cable TV

A/V and Channel Setup

MAD-001313

1. Connect one end of the VHF/UHF
(Antenna) or CATV cable to ANT Jack
(VHF/UHF IN Jack) on the back of the
TV.

2. Connect the other end of the VHF/UHF
(Antenna) or CATV cable to the Antenna
or CATV socket.

Video game console

B

R

W

Y

B R W Y

AV connectors

S-Video

connector

VCR

DVD

VCD

4-IN-1 A/V jack

4-IN-1 A/V cable

Power cord

Power adapter

DC-IN

Power outlet

1. Connect the power cord to the power
adapter as illustrated.
2. Plug the power adapter connector into
the DC-IN input jack on the rear panel
of the TV.
3. Insert the three-pronged plug at the
other end of the power cord into a
power outlet.

K229-10H1 9.6" Liquid Crystal Display TV

This guide is designed as a reference to help you start using your LCD TV quickly. Please refer to the User's Manual for more detailed installation and safety instructions.

AV

DC 12V

Antenna/Cable TV

Speakers/Headphone jack

SPEAKER

DC 12V

AV

ANT

SPEAKER

DC 12V

AV

ANT

Power

Source

Menu

Speaker

Speaker

ANT jack

(VHF/UHF IN Jack)

Antenna/CATV

coaxial cable

SPEAKER

DC 12V

AV

ANT

SPEAKER

DC 12V

AV

ANT

Antenna

SPEAKER

DC 12V

AV

ANT

SPEAKER

DC 12V

AV

ANT

SPEAKER

DC 12V

AV

ANT

SPEAKER

DC 12V

AV

ANT

CH

CH

VOL+

-VOL

source

menu

Channel

select

Volume

adjust

CH

CH

VOL+

-VOL

source

menu

Power indicator LED

Remote IR sensor

TV

AV

1. Press the

MENU button to enter the OSD menu.

Please follow the instructions by using the control panel.

6. Your television will begin automatically memorizing the available channels.

4. Press the

CH button until the "Auto Program" feature is selected.

2. Use the

CH button to select "TV".

5. Press the

VOL

+

button to begin "Auto Program".

3. Press the

VOL

+

button to enter the TV setting.

2. The cables are
color-coded (black,
red, white, and yellow).
Connect each color-
coded cable to
the appropriate
connector on your
device.

TV

Auto-Programming

093.84 MHz
1

6%

Return :

MENU

Auto Program

Note :
Images are for illustration only and may
vary by model or region.

Selecting A/V Sources

1. Make sure your TV is turned on and a
device such as a DVD player is connected.

2. Press the

SOURCE button on the

control panel to select different source signals.
TV channel number, AV or AVs appear on the screen.

Note : AVs only appears on the screen when
S-Video is connected.
