Installation
311879F 9
Changing the Orientation of the Fluid Inlet
and Outlet Ports
The pump is shipped with the ports facing the same
direction. To reverse the orientation of the ports:
1. Remove the clamps holding the inlet and/or outlet
manifold to the covers.
2. Reverse the manifold and reattach. Install and
tighten clamps snugly.

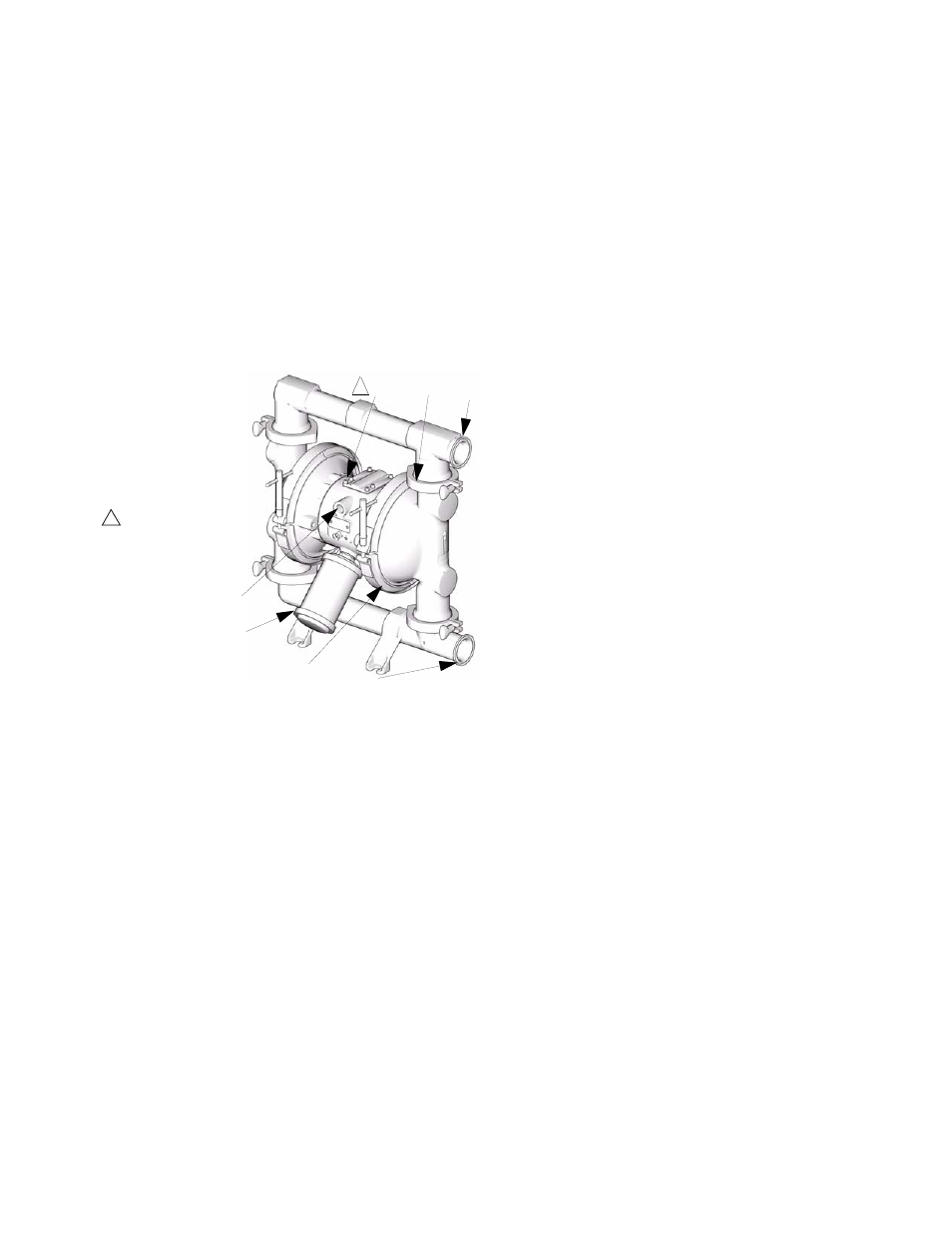

F IG . 3
Key:
N 1/2 npt(f) air inlet port
P Muffler (air exhaust
port is 3/4 npt(f)
R Fluid inlet port
S Fluid outlet port
113 Manifold clamps
3
Air valve screws
Torque to
28-30 in-lb
(3.2-3.7 N•m) 1
1
N
3 113 S
R
P
106
TI8926a
