Hitachi FD2 1590 - Manual (Page 44)

Parts - 2150
44 311879F
Parts - 2150
1 Used on PTFE models only.
These parts are included in the Pump Repair Kit which may be purchased
separately. Refer to the Repair Kit Matrix on page 42 to determine the cor-
rect kit for your pump.
These parts are included in Air Valve Repair Kit 255061 which may be pur-
chased separately.
Replacement Danger and Warning labels, tags and cards are available at
no cost.
†
▲
*

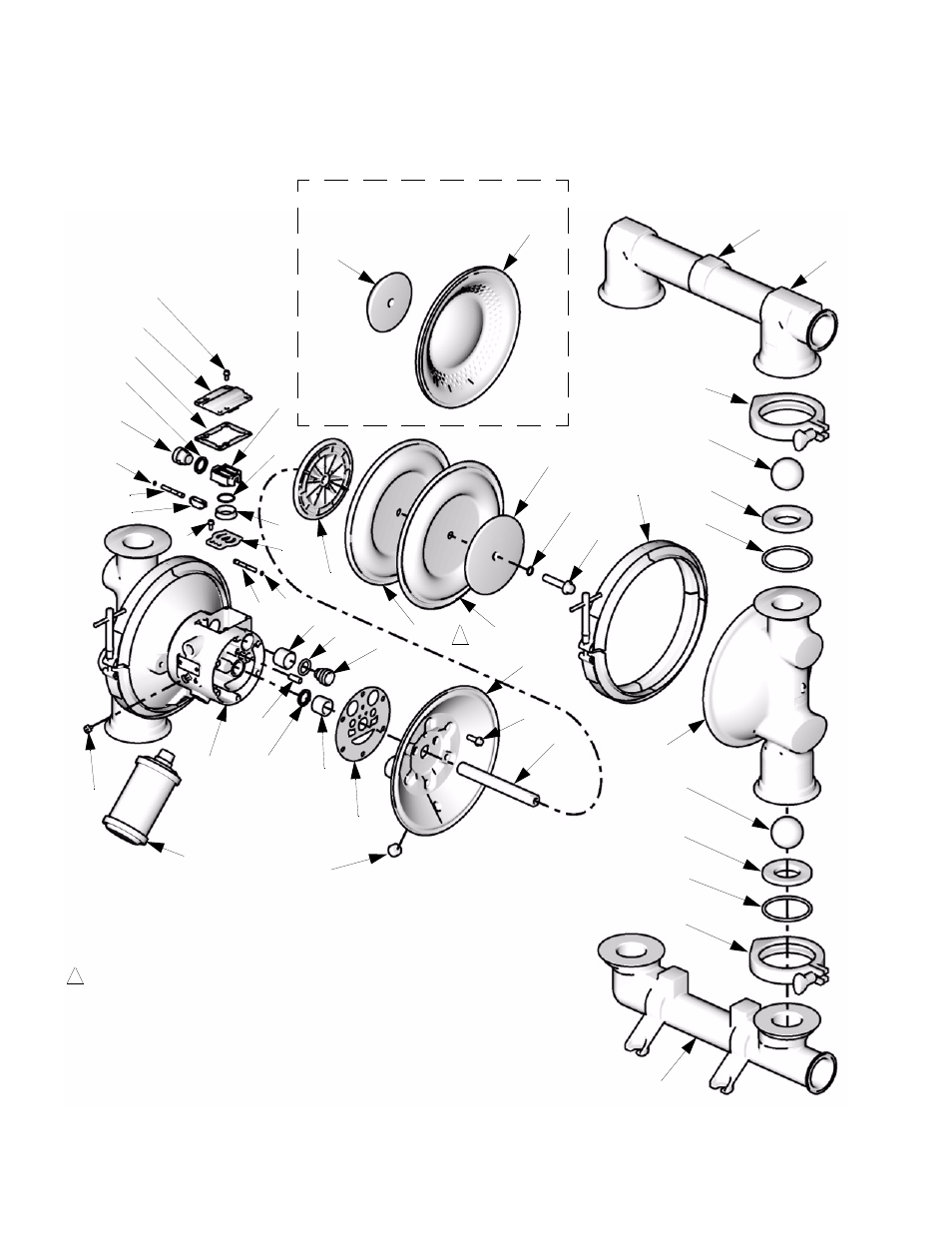

TI8929b
3
†4
5
6†
7†
8†
19
402*
15
1
111
20
†18
16
†17
11
†10
2
104
24
25
22
11
10†
17†
*202
201
*301
103
110 ▲
105
403*
401*
201
101
108*
107
12
3
102
23
16
1
113
113
106
Detail of Heavy-Duty Diaphragm
403*
104
13 *202
*301
